Tekmar 554_Q Programmable Touchscreen Thermostat

Tekmar-554_Q-Programmable-Touchscreen-Thermostat-PRODUCT

NOTICE:

The information contained herein is not intended to replace the full product installation and safety information available or the experience of a trained product installer. You are required to thoroughly read all installation instructions and product safety information before beginning the installation of this product.

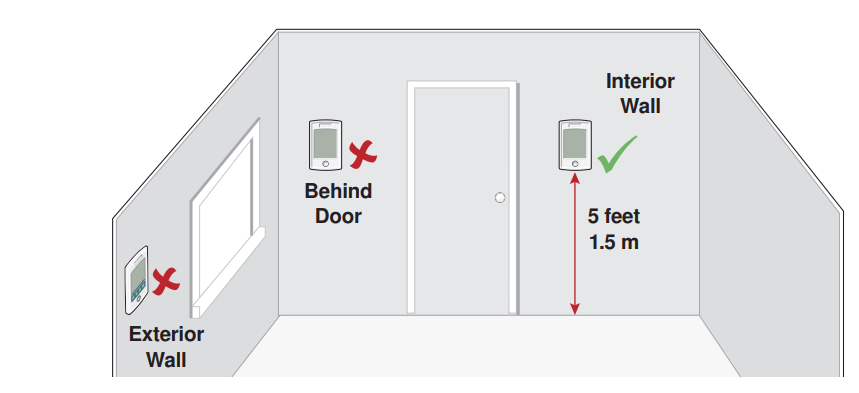

Location

Tekmar-554_Q-Programmable-Touchscreen-Thermostat-FIG.1

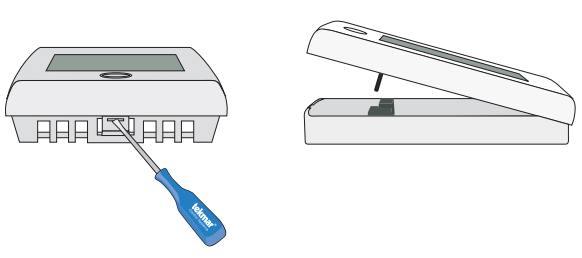

Remove Mounting Base

Tekmar-554_Q-Programmable-Touchscreen-Thermostat-FIG.2

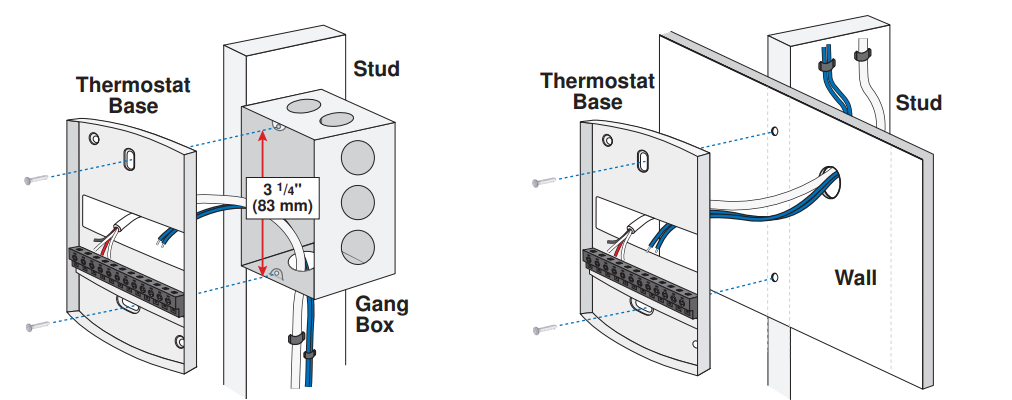

Install Mounting Base

Tekmar-554_Q-Programmable-Touchscreen-Thermostat-FIG.3

Switch Settings

Switch Position Action


1

ON LOCK Access level adjustment is not available.
OFF UNLOCK Access level adjustment is available.

Tekmar-554_Q-Programmable-Touchscreen-Thermostat-FIG.4

WiringTekmar-554_Q-Programmable-Touchscreen-Thermostat-FIG.5 Tekmar-554_Q-Programmable-Touchscreen-Thermostat-FIG.6

Install the Thermostat

Tekmar-554_Q-Programmable-Touchscreen-Thermostat-FIG.7

User Interface

Tekmar-554_Q-Programmable-Touchscreen-Thermostat-FIG.8

Critical Settings

The following settings are essential to the successful operation of the system.

  1. Step 1: Set switch setting #1 and tekmarNet® system control located in the mechanical room to Unlock to change the Access level to Installer. Return to the Lock setting once installation has been completed.
  2. Step 2: Press and hold the “Home” button for 3 seconds to enter programming menus.
  3. Step 3: Touch NEXT to locate the Setup Menu and touch ENTER.
Setup Menu Settings Range Default
SENSOR 1

Select the type of sensor connected to auxiliary sensor input 1.

OFF, ROOM, FLOR (floor), COIL, DUCT

OFF

SENSOR 2

Select the type of sensor connected to auxiliary sensor input 2.

OFF, ROOM, FLOR

(floor), OUT (outdoor)



OFF

ROOM SENSOR

Select if the built-in room temperature sensor is on or off.



OFF or ON



ON

W TERMINAL UNIT

Select the terminal unit type of the first stage of heat W.

NONE, HRF1, HRF2, CONV, COIL, FURN, OTHR HRF1 (tekmarNet® System Control) OTHR (standalone)

For a full list of settings and operational details, please refer to the thermostat
Installation and Operation Manual 554_D that is available from tekmarControls.com
