tekmar 553_Q touchscreen Thermostat Quick Start Guide

Tekmar-LOGO

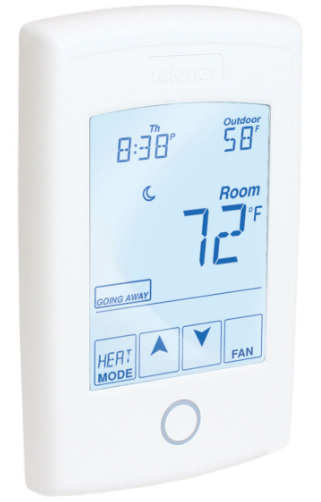

tekmar 553_Q touchscreen Thermostat

 tekmar- 553_Q -touchscreen- Thermostat -PRO

Quick Setup Guide

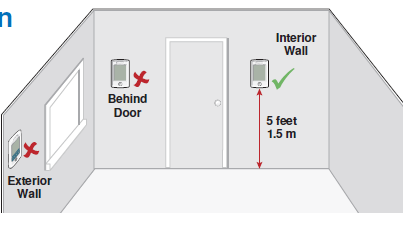

  • Locationtekmar- 553_Q -touchscreen- Thermostat -1

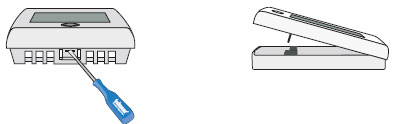

  • Remove Mounting Basetekmar- 553_Q -touchscreen- Thermostat -2

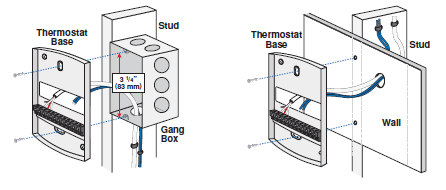

  • Install Mounting Basetekmar- 553_Q -touchscreen- Thermostat -3

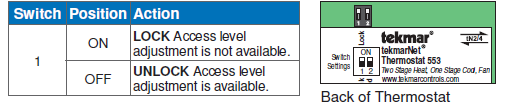

  • Switch Settings
Switch Position Action


1

ON LOCK Access level adjustment is not available.
OFF UNLOCK Access level adjustment is available.

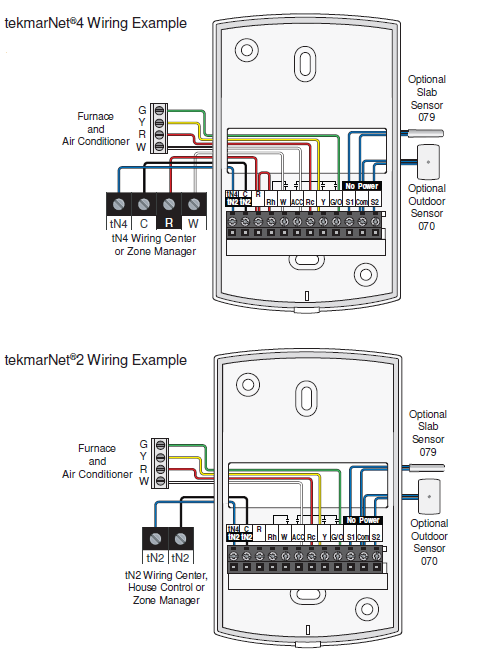

Wiringtekmar- 553_Q -touchscreen- Thermostat -5

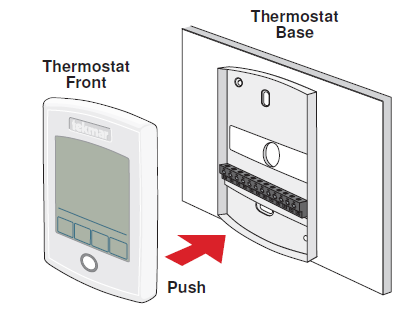

Install the Thermostat

tekmar- 553_Q -touchscreen- Thermostat -6

User Interfacetekmar- 553_Q -touchscreen- Thermostat -7

Critical Settings

  • Step 1: Set switch setting #1 and tekmarNet® system control located in the mechanical room to Unlock to change Access level to Installer. Return to Lock setting once installation has been completed.
  • Step 2: Press and hold “Home” button for 3 seconds to enter programming menus.
  • Step 3: Touch NEXT to locate the Setup Menu and touch ENTER.
Setup Menu Settings Range Default
SENSOR 1

Select the type of sensor connected to auxiliary sensor input 1.

OFF, ROOM, FLOR (floor), COIL, DUCT

OFF

SENSOR 2

Select the type of sensor connected to auxiliary sensor input 2.

OFF, ROOM, FLOR

(floor), OUT (outdoor)



OFF

ROOM SENSOR

Select if the built-in room temperature sensor is on or off.



OFF or ON



ON

HUMIDITY SENSOR

Select if the built-in humidity sensor is on or off.



OFF or ON



ON

Y RELAY

Select the cooling equipment the Y relay operates.

OFF, HP (heat pump), AC (air conditioner), HUM (humidity)

AC

W TERMINAL UNIT

Select the terminal unit type of the first stage of heat W.

NONE, HRF1, HRF2, CONV, COIL, FURN, OTHR HRF1 (tekmarNet® System Control) OTHR (standalone)
ACC RELAY

Select the operation of the accessory relay.

OFF, W2, HUM, DHUM, HRV, FAN

W2

W2 TERMINAL UNIT

Select the type of backup heating.

CONV, COIL, FURN

(furnace), OTHR (other)

FURN
W2 SOURCE

Select the second stage W2 hydronic heat source.



BOIL, TANK, MIX



BOIL

G/O RELAY

Select the equipment the G / O relay operates.

FAN or OFF

(conventional heating) O or B (heat pump)

FAN (conventional) O (heat pump)

For a full list of settings and operational details, please refer to the thermostat Installation and Operation Manual (553_D) available from www.tekmarControls.com

TEKMARK

  • Product design, software and literature are Copyright ©2014 by tekmar Control Systems Ltd.,
  • A Watts Water Technologies Company.
  • Head Offi ce: 5100 Silver Star Road, Vernon, B.C.
  • Canada V1B 3K4, 250-545-7749,
  • Fax. 250-545-0650
  • Web Site: www.tekmarControls.com
