tekmar 552_Q Programmable Thermostat Quick Start Guide

Tekmar-LOGO

tekmar 552_Q Programmable Thermostat

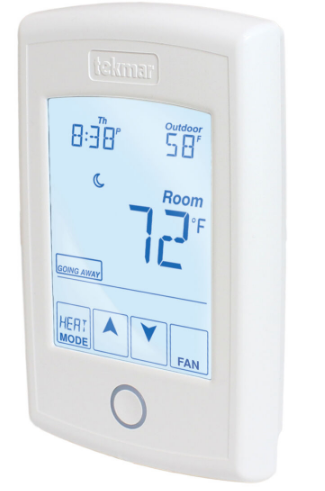

tekmar-552_Q-Programmable-Thermostat-product

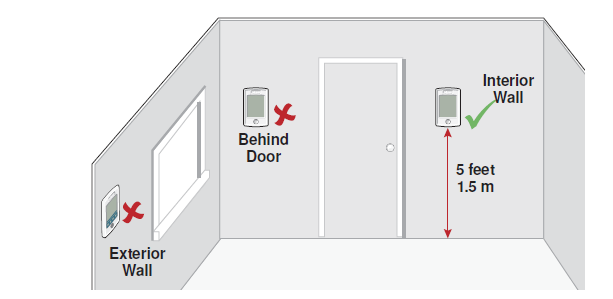

Locationtekmar-552_Q-Programmable-Thermostat-fig-1

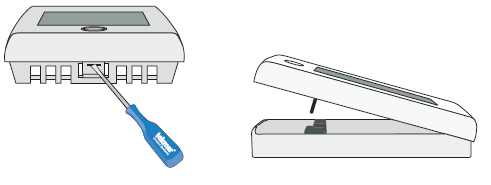

Remove Mounting Basetekmar-552_Q-Programmable-Thermostat-fig-2

Install Mounting Basetekmar-552_Q-Programmable-Thermostat-fig-3

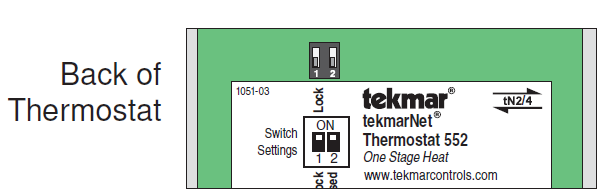

Switch Settingstekmar-552_Q-Programmable-Thermostat-fig-4

Commutateur Position Action




1



ON

VERROUILLAGE

Le réglage du niveau d’accès n’est pas disponible.



OFF

DÉVERROUILLAGE

Le réglage du niveau d’accès est disponible.

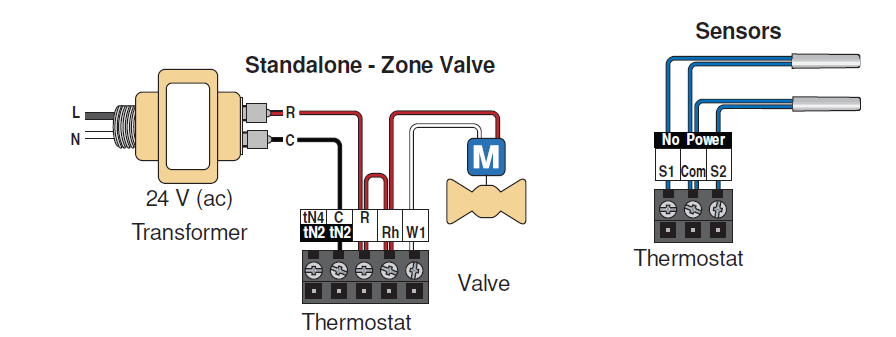

Wiringtekmar-552_Q-Programmable-Thermostat-fig-5

tekmar-552_Q-Programmable-Thermostat-fig-6

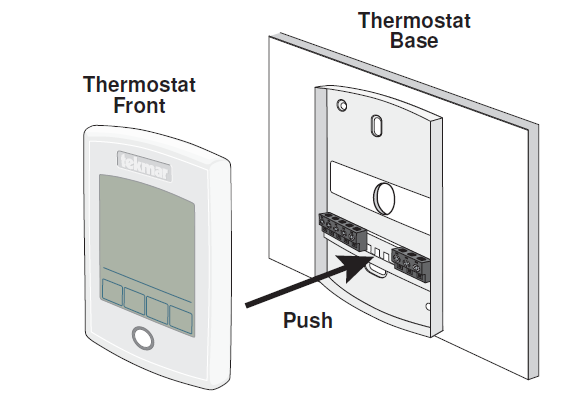

Install Thermostat

tekmar-552_Q-Programmable-Thermostat-fig-7

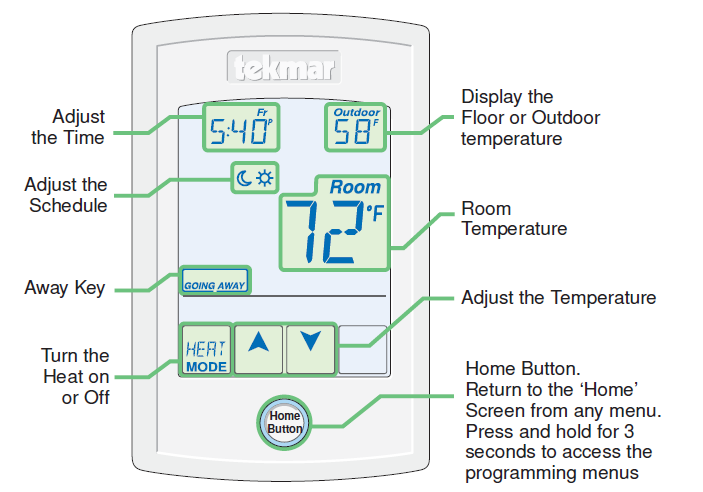

User Interface

tekmar-552_Q-Programmable-Thermostat-fig-8

Critical Settings

The following settings are essential to the successful operation of the system.
Step 1: Set switch setting #1 and tekmarNet® system control located in the mechanical room to Unlock to change the Access level to Installer. Return to the Lock setting once installation has been completed.
Step 2: Press and hold the “Home” button for 3 seconds to enter programming menus. Step 3: Touch NEXT to locate the Setup Menu and touch ENTER.

Setup Menu Settings
SENSOR 1

Select to the type of sensor connected to auxiliary sensor input 1.

Range: OFF, ROOM, FLOR (floor), OUT (outdoor)
Default: OFF
SENSOR 2

Select to the type of sensor connected to auxiliary sensor input 2.

Range: OFF, ROOM, FLOR (floor)
Default: OFF
ROOM SENSOR

Select whether the built-in room temperature sensor is on or off.

Range: OFF or ON
Default: ON
W1 TERMINAL UNIT

Select the terminal unit type of the first stage of heat W1.

Range: CTRL, HRF1, HRF2, CONV, COIL, OTHR
Default: CTRL
Setup Menu Settings
W1 PUMP

Select whether the boiler system pump or mix system pump on a tekmarNet® system control should operate while the first stage of heat W1 is operating.

Range: OFF or ON
Default: ON
W1 THERMAL MOTOR

Select whether the first stage of heat W1 operates a thermally actuated zone valve (wax actuator). When set to ON, there is a 3 minute delay before operating the pump and any heat sources.

Range: OFF or ON
Default: OFF
W CYCLES PER HOUR

Select the number of heating cycles per hour. Only available when the thermostat is not connected to a tekmarNet® System Control.

Range: SYNC, AUTO, 2 to 12
Default: SYNC

For a full list of settings and operational details, please refer to the thermostat Installation and Operation Manual (552_D) included with compatible tekmarNet® controls or download the brochure from www.tekmarcontrols.com Product design, software, and literature are Copyright ©2014 by tekmar Control Systems Ltd., A Watts Water Technologies Company. Head Offi ce: 5100 Silver Star Road, Vernon, B.C. Canada V1B 3K4, 250-545-7749, Fax. 250-545-0650 Web Site: www.tekmarControls.com All specifications are subject to change without notice
