Tekmar 519_Q Radiant Thermostat Quick Start Guide

Tekmar-LOGO

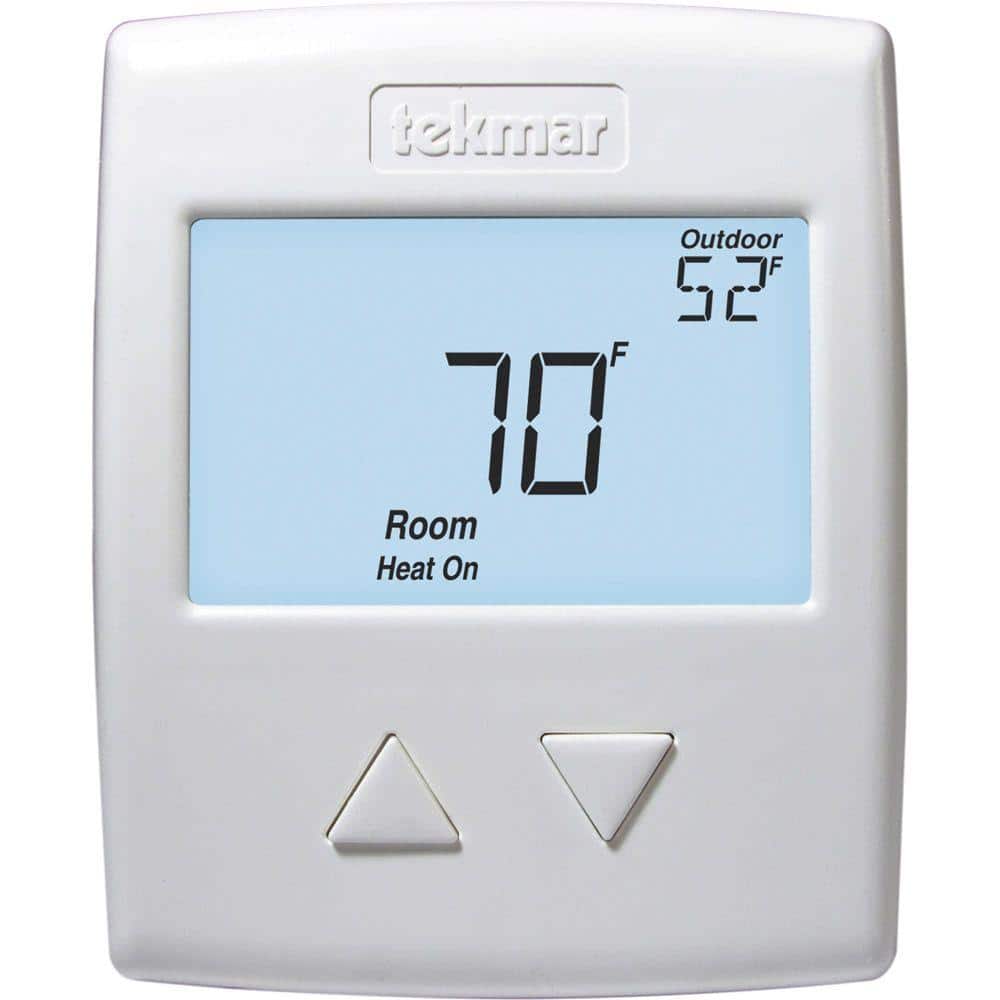

Tekmar 519_Q Radiant Thermostat



Tekmar-519_Q-Radiant-Thermostat-PRODUCT

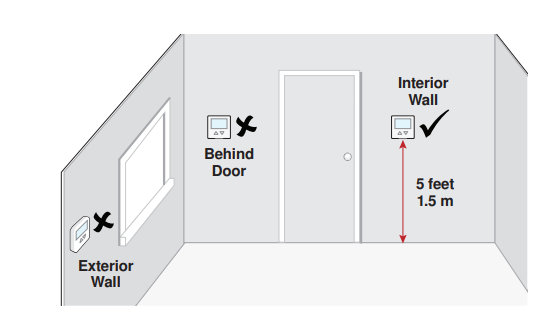

Location

tekmar-519_Q-Radiant-Thermostat-FIG.1

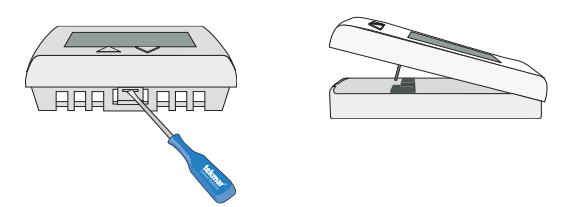

Remove Mounting Base

tekmar-519_Q-Radiant-Thermostat-FIG.2

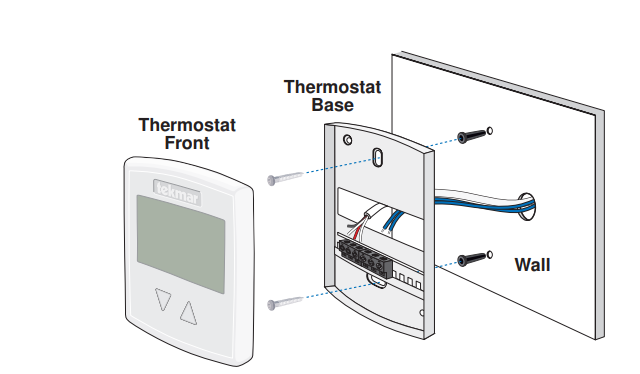

Installation to Wall

tekmar-519_Q-Radiant-Thermostat-FIG.3

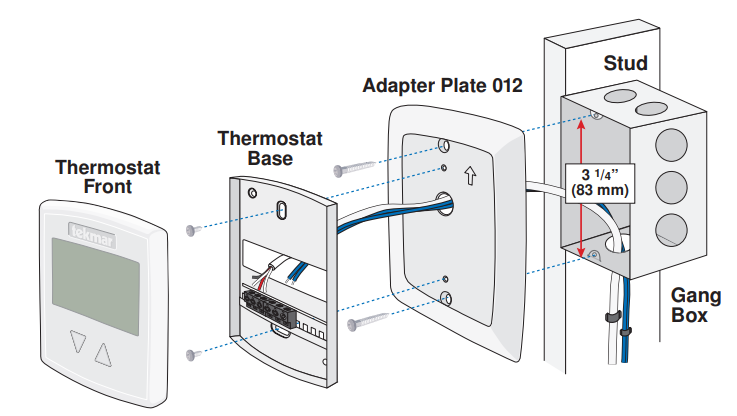

Installation to Gang Box

tekmar-519_Q-Radiant-Thermostat-FIG.4

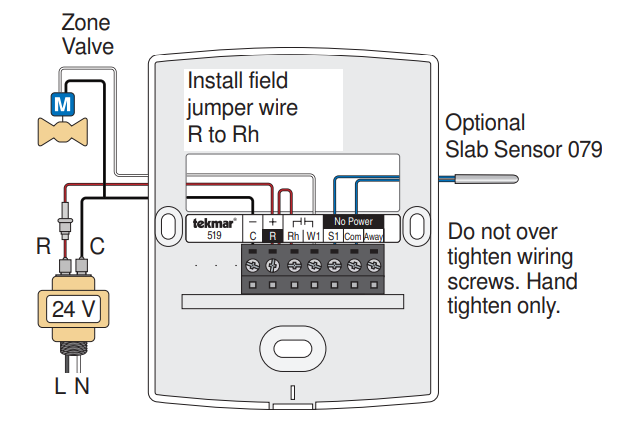

Wiring

tekmar-519_Q-Radiant-Thermostat-FIG.5

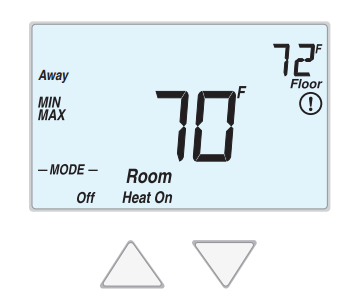

User Interface

tekmar-519_Q-Radiant-Thermostat-FIG.6

Critical Settings

The following settings are essential to the successful operation of the heating system.

Press tekmar-519_Q-Radiant-Thermostat-FIG.7Together

  • Press and hold down both the tekmar-519_Q-Radiant-Thermostat-FIG.7buttons for 3 seconds to change from one step to the next.
  • Release both buttons once the step has been reached.
  • Press thetekmar-519_Q-Radiant-Thermostat-FIG.7the button to change the setting, if available.
  • Press and hold down both the tekmar-519_Q-Radiant-Thermostat-FIG.7 buttons for 3 seconds to go to the next step, OR
  • After 15 seconds of no button activity, the display goes back to normal operation.
Display Setting
User settings.
tekmar-519_Q-Radiant-Thermostat-FIG.8 MODE
Select heat or off.


tekmar-519_Q-Radiant-Thermostat-FIG.9

UNITS
Select the temperature units in degree Fahrenheit or Celsius.
tekmar-519_Q-Radiant-Thermostat-FIG.10 BACKLIGHT
Select when the display back light should operate. Options are Off, Auto, and On. Auto operates the backlight for 30 seconds after a keystroke.
tekmar-519_Q-Radiant-Thermostat-FIG.11 SET FLOOR
Set the floor minimum temperature. Available when an auxiliary floor sensor is connected and the built-in room temperature sensor is on.
tekmar-519_Q-Radiant-Thermostat-FIG.12 TYPE
Device Type number. Hold the  tekmar-519_Q-Radiant-Thermostat-FIG.7 button to view the software version.
tekmar-519_Q-Radiant-Thermostat-FIG.13 ESCAPE
Release the tekmar-519_Q-Radiant-Thermostat-FIG.7buttons to return to the home screen.
Display Setting
Installer settings. Press thetekmar-519_Q-Radiant-Thermostat-FIG.7buttons together for 5 more seconds.


tekmar-519_Q-Radiant-Thermostat-FIG.14

AUXILIARY SENSOR

Select the type of auxiliary sensor. Available when an auxiliary sensor is automatically detected. NONE = no auxiliary sensor, ROOM = Indoor Sensor, OUT = Outdoor Sensor, FLOR = Slab Sensor



tekmar-519_Q-Radiant-Thermostat-FIG.15

ROOM SENSOR

Select if the built-in room temperature sensor is on or off. The built-in room sensor can only be disabled when an auxiliary room or slab sensor is connected.

tekmar-519_Q-Radiant-Thermostat-FIG.16 FLOOR MAXIMUM

Set the floor maximum temperature in order to protect the floor covering. Suggested settings: Tile = 90°F (32°C), Wood Floor = 85°F (29°C)



tekmar-519_Q-Radiant-Thermostat-FIG.17



SET AWAY

Set the away temperature.

tekmar-519_Q-Radiant-Thermostat-FIG.13 ESCAPE

Release thetekmar-519_Q-Radiant-Thermostat-FIG.7 buttons to return to the home screen.

For a full list of settings and operational details, please refer to the thermostat Installation and Operation Manual 519_D that is available from tekmarControls.com
