TAODA D901D Smart WIFI Thermostat  fea

TAODA D901D Smart WIFI Thermostat User Manual

TAODA logo

TAODA D901D Smart WIFI Thermostat

TAODA D901D Smart WIFI Thermostat  pro

Specification

  • Warranty: 1 Year
  • Floor Heating Valve: Floor heating thermostats
  • After-sale Service: Online technical support
  • Material: Anti-flammable PC +ABS, PC+ABS
  • Project Solution Capability: total solution for projects
  • Application: Villa, Hotel
  • Design Style: Modern
  • Place of Origin: Shanghai, China
  • Brand Name: TAODA
  • Model Number: D901D
  • Type: Floor Heating Parts
  • Floor Heating Part Type: Floor Heating Thermostats
  • Function: Floor Heating System Temperature Control
  • Voltage: 220-240V
  • Temperature limited: 50. C
  • Programmability: 5+2 DAYS

Introduction

The Taoda D901D Smart Wi-Fi Thermostat is an advanced home temperature control device that offers convenient and intelligent heating and cooling solutions. Designed to enhance comfort and energy efficiency, the D901D thermostat combines smart connectivity, intuitive controls, and a range of features to optimize temperature settings in your home or office. With its Wi-Fi connectivity, the D901D thermostat allows you to control and monitor your heating and cooling system remotely using your smartphone or other smart devices. Through the dedicated Taoda mobile app, you can easily adjust the temperature, create schedules, and access a variety of advanced settings from anywhere with an internet connection.

The thermostat’s sleek design features a large LCD touchscreen display that provides a user-friendly interface for easy operation and temperature adjustments. The display offers clear and intuitive navigation, allowing you to access various functions and settings effortlessly. One of the key features of the D901D thermostat is its ability to learn and adapt to your preferences. By analyzing your usage patterns and temperature adjustments over time, the thermostat can automatically optimize the temperature settings to provide personalized comfort while maximizing energy efficiency. This learning capability helps to reduce energy waste and lower heating and cooling costs.

This series of digital heating thermostats, applying the most advanced and international standardized microcomputer control chip, measure the temperatures through the in-built and external high-precision sensor. It can make a real-time comparison with the parameters set by the user, and automatically start and stop the heating equipment to maintain the room in a certain temperature point. It can set 6 time periods and corresponding temperatures every day, and can select manual control or temporary manual control. The particular double sensor control function reinforces temperature detection on the heating equipment while detecting the room temperature. When the temperature of the heating equipment exceeds the maximum setting temperature, the thermostat will automatically stop heating to protect the electric heating equipment; While the room temperature is lower than the minimum protected temperature, it will restart the electric heating equipment and keep it working under reasonable temperature range, which will prolong the service life of the equipment and enable the system to be safer, more reliable and energy-saving.

What Is In The Box

  • Thermostat
  • User Manual
  • Screws
  • External Sensor

Parameters

parameter
data
Supply voltage:
220VAC, 50/60Hz
Load current:
3A/16A/20A/30A (according to model)
Its power consumption:
<1W
Temperature sensing element:
NTC
Temperature switch deviation:
1℃ (0.5~10℃ adjustable)
Temperature control range:
5~45℃ (upper limit adjustable, 45~95)
Temperature limit range:
5~60℃ (external sensor)

Display

TAODA D901D Smart WIFI Thermostat  1

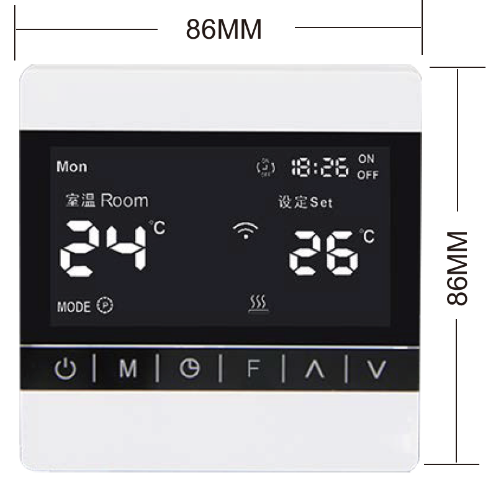

Dimension

TAODA D901D Smart WIFI Thermostat  2

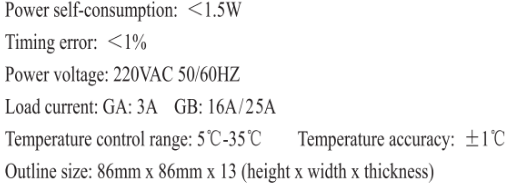

Technical Specification

TAODA D901D Smart WIFI Thermostat  3

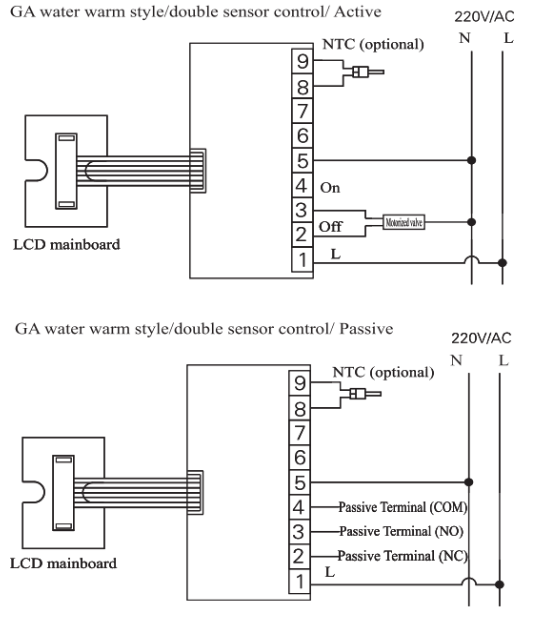

Wiring Diagram

TAODA D901D Smart WIFI Thermostat  4

FAQS

Q: What is the Taoda D901D Smart WIFI Thermostat?
A: The Taoda D901D Smart WIFI Thermostat is a programmable thermostat that connects to your home’s Wi-Fi network, allowing you to control and monitor your heating and cooling system remotely using a smartphone app.

Q: What features does the Taoda D901D thermostat offer?
A: The Taoda D901D thermostat offers features such as programmable scheduling, temperature control, energy-saving modes, humidity monitoring, smart learning capabilities, voice control compatibility, and remote access through the mobile app.

Q: Is the Taoda D901D compatible with all heating and cooling systems?
A: The Taoda D901D thermostat is compatible with most heating and cooling systems, including gas, electric, and heat pump systems. However, it’s always recommended to check the product specifications or consult with a professional to ensure compatibility with your specific system.

Q: How do I install the Taoda D901D Smart WIFI Thermostat?
A: The installation process of the Taoda D901D thermostat may vary depending on your existing system. It typically involves turning off the power, removing the old thermostat, connecting the wires to the new thermostat, and mounting it on the wall. It’s advisable to follow the provided installation guide or seek professional assistance if needed.

Q: Can I control the Taoda D901D thermostat remotely?
A: Yes, you can control the Taoda D901D thermostat remotely using the Taoda mobile app. As long as you have an internet connection, you can adjust the temperature, change settings, and view the thermostat’s status from anywhere.

Q: Does the Taoda D901D thermostat have a touchscreen display?
A: Yes, the Taoda D901D thermostat features a touchscreen display that allows for easy and intuitive control. You can navigate through the menus, adjust settings, and view temperature readings directly on the thermostat.

Q: Can I program a schedule with the Taoda D901D thermostat?
A: Absolutely! The Taoda D901D thermostat supports programmable scheduling. You can set different temperature levels for different times of the day or week, ensuring optimal comfort and energy efficiency.

Q: Is the Taoda D901D compatible with voice control assistants like Amazon Alexa or Google Assistant?
A: Yes, the Taoda D901D thermostat is compatible with popular voice control assistants such as Amazon Alexa and Google Assistant. This allows you to adjust the temperature and control other thermostat functions using voice commands.

Q: Does the Taoda D901D thermostat offer energy-saving features?
A: Yes, the Taoda D901D thermostat provides energy-saving features. It includes intelligent learning capabilities that adapt to your usage patterns and optimize temperature settings for efficiency. Additionally, it offers energy-saving modes and insights to help you reduce energy consumption and save costs.

Q: Can I monitor the humidity levels with the Taoda D901D thermostat?
A: Yes, the Taoda D901D thermostat can monitor humidity levels in your home. This information can be accessed through the thermostat’s display or the mobile app, allowing you to maintain a comfortable indoor environment.

Q: Does the Taoda D901D thermostat provide usage reports or energy consumption data?
A: Yes, the Taoda D901D thermostat can provide usage reports and energy consumption data. These reports give you insights into your heating and cooling patterns, helping you make informed decisions to improve efficiency and save energy.

Q: Can I integrate the Taoda D901D thermostat with other smart home devices?
A: Yes, the Taoda D901D thermostat supports integration with other smart home devices and platforms. This enables you to create automation routines, synchronize with your existing smart home ecosystem, and enhance overall convenience.

Q: Can I control multiple Taoda D901D thermostats from a single app?
A: Yes, you can control multiple Taoda D901D thermostats from a single mobile app. This is particularly useful if you have multiple heating and cooling zones in your home or if you have multiple properties with Taoda thermostats installed.

Q: Does the Taoda D901D thermostat have a vacation mode?
A: Yes, the Taoda D901D thermostat offers a vacation mode feature. This allows you to set a specific temperature range while you’re away from home for an extended period. It helps save energy during your absence and ensures a comfortable temperature upon your return.

Q: Is the Taoda D901D thermostat compatible with geofencing?
A: Yes, the Taoda D901D thermostat supports geofencing technology. Geofencing allows the thermostat to track your smartphone’s location and automatically adjust the temperature settings based on whether you’re at home or away. This feature adds convenience and energy efficiency by optimizing temperature control based on your presence.
