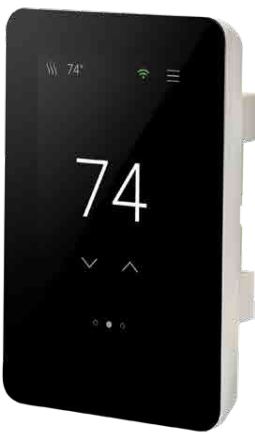

SunTouch 81020606 Wi-Fi Programmable Touchscreen Thermostat
Wi-Fi Programmable Touchscreen Thermostat
This all-in-one thermostat includes a built-in relay to control 120 or 240 VAC floor heating systems and a GFCI to improve safety. By default, the SunStat® Command controls the floor temperature. It can optionally limit the floor temperature to prevent the space from overheating or be configured to control the space through air temperature alone.
Specifications
| Literature | IOM-ST-ConnectPlus Thermostat,
ES-ST-ConnectPlus Thermostat |
| Operation Voltage | 120/240 VAC, 60 Hz, 3 watts |
| Maximum Load | 15 amps resistive |
| Maximum Power | 1800 watts at 120 VAC
3600 watts at 240 VAC |
| GFCI | Class A (5 mA trip) |
| Dimensions | 4.73″ H x 3.11″ W x 1.9″ D (120 x 79 x 48 mm) |
| Ambient conditions | 32 to 86°F (0 to 30°C), <90% RH non-condensing |
| Floor Sensor | Thermistor, 10k NTC type, 300 V jacketed cable, 15′ long |

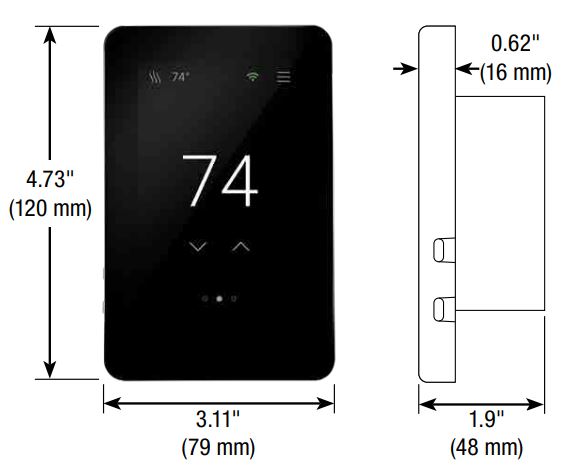

DIMENSION
Features
- Floor or air-sensing temperature control
- Remote access via Watts Home mobile app
- Compatible with Voice commands
- Large touchscreen display
- Easy-to-use scheduling
- Weather/Clock display options
- Portrait/Landscape display
- Guided setup
- Comprehensive help screens
- Energy use monitoring
- Overcurrent and Voltage-level sensing
- Wired or Wireless connection to SunStat® R4 Relay (sold separately)
- Wireless connection to ConnectPlus Smart Sensor(sold separately)
- Floor Sensor included
- 3 Year warranty
UL Listed under UL 943, UL/CSA 60730, UL 991
Listing file number E365015.
CAUTION
This Engineering Sheet is not intended to provide full installation instructions and safety information. In order to avoid property damage or injury, please refer to the complete installation manual and product safety information provided with the product.
PRODUCT OPTIONS
| PRODUCT OPTIONS | |||
| Qty | Description | Model# | Order# |
| SunStat ConnectPlus Thermostat | 500900-SB | 81020606 | |
| Extra Floor Sensor (optional) | 500110 | 81009178 | |
| SunStat R4 Relay (optional) | 500980 | 81020608 | |
| ConnectPlus Smart Sensor | 500120 | 81020611 | |
SunTouch product specifications in U.S. customary units and metrics are approximate and are provided for reference only. For precise measurements, please contact SunTouch Technical Service. Suntouch reserves
the right to change or modify product design, construction, specifications, or materials without prior notice and without incurring any obligation to make such changes and modifications on SunTouch products previously or subsequently sold. Refer to the owner’s manual for warranty information.
- USA: T: (888) 432-8932
F: (417) 831-4067
SunTouch.com - Canada: T: (888) 208-8927
F: (905) 481-2316 - Latin America: T: (52) 55-4122-0138
SunTouch.com
