STELPRO STE241 Low Voltage 24V Electronic Thermostat Product Specifications Guide

Stelpro-logo

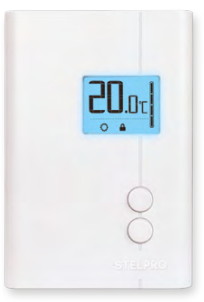

STELPRO STE241 Low Voltage 24V Electronic Thermostat

STELPRO-STE241-Low-Voltage-24V-Electronic-Thermostat-Product

EFFICIENT RELAY CONTROL

The STE241 series low voltage (24 V) electronic thermostat is designed to control electric furnaces and Stelpro “RE” series heating relays. It is compatible with either convection-mode or forced-air heating units as the cycles of this thermostat can be modified accordingly.

  • SIMPLE TO USE AND INSTALL
  • INCREASED SAVINGS AND COMFORT INCOMPARABLE ACCURACY
  • BACKLIT SCREEN CAN BE USED AS A NIGHTLIGHT
  • ELECTRICITY SAVINGS ENERGY SAVINGS OF 10-15% DEPENDING ON USE

COLOUR

  • white

FINISH

  • molded plastic

VOLTAGE

  • 0.5 A @ 24 Vac

CONTROL

  • three-wire connection
  • compatible with electric furnaces (R, C, W connections) and Stelpro “RE” series heating relays
  • adjustable cycles to accomodate both convection and forced-air heating modes. Attention: not compatible with solely inductive loads.
  • acts like a programmable thermostat by automatically lowering the temperature once per 24-hour period (Single programming mode)
  • frost-free warning
  • lock option at a maximum temperature setpoint (Security mode)
  • display in Celsius or Fahrenheit

ACCURACY

  • accurate ambient temperature control ± 0.5 °C (1 °F)
  • temperature sensing with thermistor

TEMPERATURE RANGE

  • 3 to 30 °C (37 to 86 °F)

WARRANTY

three years
* independent study

TECHNICAL SPECIFICATIONS

TECHNICAL SPECIFICATIONS
PRODUCT VOLTAGE FREQUENCY PRICE
CODE VOLTS HZ
STE241WB+ 24 VAC 50/60 62.00

Dimensions : 3 1/4 in. (83 mm) wide, 4 3/4 in. (121 mm) high, and surface 1 in. (25 mm) deep (total depth: 1 3/8 in. (35 mm))
Stelpro reserves the right to modify descriptions, manufacturing specifications, or prices without prior notice. No returns are accepted on optional-color products.
For all the latest models and prices, please refer to our website at www.stelpro.com.
