STELPRO SIBTE12C Electronic Thermostat Owner’s Manual

Company Name

STELPRO SIBTE12C Electronic Thermostat

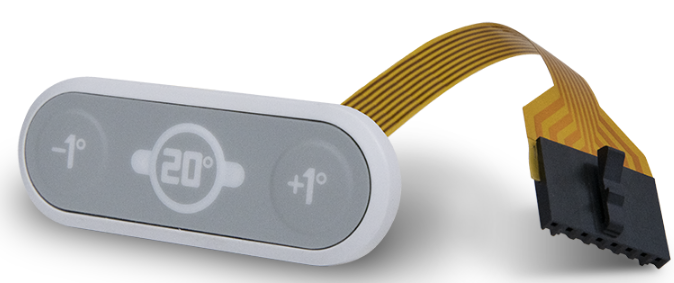

STELPRO-SIBTE12C-Electronic-Thermostat-product

IMPORTANT INSTRUCTIONS

Before installing or using this product, you must read and understand these instructions. The manufacturer cannot be held responsible for anything, and the warranty will not be valid if the installer and user do not follow these instructions. Failure to comply with these instructions could result in bodily harm, property damage, serious injury and potentially fatal electric shock.
The thermostat must be installed by a certified electrician.
WARNING: HIGH VOLTAGE. Turn off the power supply before installation and maintenance.
SAVE THESE INSTRUCTIONS

INSTALLATION

  1. PREPARE THE BASEBOARD
    WARNING:
    Turn off the power supply. Do not install the thermostat in a position other than that indicated in this guide.
    • INSTALLATION INSTRUCTIONSChoose which side of the baseboard to install the thermostat. The connection must be made in the same junction box as the power supply.
    • Remove the front panel. Refer to the baseboard instructions for more details.
    • Unscrew the front cover of the junction box [A] and remove it.
    • Remove the knockouts [B] with a hammer and a screwdriver.
      STELPRO-SIBTE12C-Electronic-Thermostat-fig.1 STELPRO-SIBTE12C-Electronic-Thermostat-fig.2
  2. ASSEMBLE THE THERMOSTAT
    • Attach the thermostat using the screws provided.
    • To ensure proper grounding and heat transfer, make sure the thermostat is screwed in securely and is in contact with the junction box cover.
      STELPRO-SIBTE12C-Electronic-Thermostat-fig.3
      STELPRO-SIBTE12C-Electronic-Thermostat-fig.4
  3. CONNECT THE POWER SUPPLY WIRES
    Complete the thermostat’s electrical connection according to one of the diagrams below. Tighten the wires securely in the supplied connection caps.
    WARNING: Be sure to connect the wire colors as shown in the diagrams when making electrical connections.
    STELPRO-SIBTE12C-Electronic-Thermostat-fig.5
    STELPRO-SIBTE12C-Electronic-Thermostat-fig.6
  4. INSTALL THE TEMPERATURE SENSOR
    Install the temperature sensor [A] as shown, making sure it is firmly seated at the bottom of the groove.
    STELPRO-SIBTE12C-Electronic-Thermostat-fig.7
    STELPRO-SIBTE12C-Electronic-Thermostat-fig.8
  5. INSTALL THE INTERFACE
    1. Make sure surfaces are clean and dry. Position the interface so that the numbers face in the correct direction, as shown.
    2. Remove the adhesive protection on the back of the interface.
    3. Insert the connector into the opening. Clip the interface into place and press firmly so that the adhesive sticks to the surface.
    4. Clip the interface connector into the thermostat connector.
    5. Push all the wires into the junction box while closing it. Make sure the wires and tape are not tangled.
    6. Screw the junction box cover back on, then replace the front panel.
    7. Restore the power supply.
      STELPRO-SIBTE12C-Electronic-Thermostat-fig.9
      STELPRO-SIBTE12C-Electronic-Thermostat-fig.10
      STELPRO-SIBTE12C-Electronic-Thermostat-fig.12

OPERATING INSTRUCTIONS

3 BUTTONS TO CONTROL THE TEMPERATURE
OPERATING INSTRUCTIONS

INITIAL SETTING
Once installation is complete, you must configure your thermostat according to your baseboard model.

 BASEBOARDS MODEL F(Fahrenheit) MODEL C(Celsius) INDICATOR LIGHTS


BRAVA*

Press simultaneouslySTELPRO-SIBTE12C-Electronic-Thermostat-fig.13 Press simultaneouslySTELPRO-SIBTE12C-Electronic-Thermostat-fig.14  Purple


PRIMA

Press simultaneouslySTELPRO-SIBTE12C-Electronic-Thermostat-fig.15 Press simultaneouslySTELPRO-SIBTE12C-Electronic-Thermostat-fig.16  Light blue

* By default, the thermostat is set up for the BRAVA baseboard.

INDICATOR LIGHTS

The indicator lights provide feedback on your comfort choices and other advanced features.

 COLOUR  DESCRIPTION TEMPERATUREMODEL F (Fahrenheit)   MODEL C (Celsius)
BLUE Freeze protection 41°F 5°C
GREEN Energy saving 42°F to 66°F 6°C to 19°C
GREEN TO ORANGE Eco-comfort balance 67°F to 74°F 20°C to 23°C
RED Optimal comfort 75°F to 86°F 24°C to 30°C
 FLASHING RED The baseboard has overheated, and heating has been switched off. After four minutes, the indicator lights will turn off. Heating will be restored. If the indicator lights flash repeatedly, make sure nothing is obstructing the baseboard. Otherwise, contact °STELPRO.
 FLASHING YELLOW The baseboard isn’t operating due to a problem with the temperature sensor. Please contact °STELPRO.
FLASHING WHITE Lock/unlock feature. See the section below.

ADJUSTING THE TEMPERATURE

Here are some examples of how to use the three buttons on the thermostat to adjust the setpoint temperature.

DESIRED TEMPERATURE PRESS INDICATOR LIGHTS
72 °F* STELPRO-SIBTE12C-Electronic-Thermostat-fig.17 Orange
67 °F* STELPRO-SIBTE12C-Electronic-Thermostat-fig.18 Green
41 °F*Freeze protection STELPRO-SIBTE12C-Electronic-Thermostat-fig.19 Blue

Celsius version on the back.

LOCK/UNLOCK FEATURE

PRESS INDICATOR LIGHTS
 LOCK Press simultaneouslySTELPRO-SIBTE12C-Electronic-Thermostat-fig.20 After 3 sec., 3 white flashes
 UNLOCK After 3 sec., display of the current setpoint color
When an attempt is made to change the setpoint while in lock mode, the indicator lights will flash white three times.

TECHNICAL SPECIFICATIONS

VERSION VOLTAGE AND LOAD VOLTAGE RATING
PRODUCT CODE CELSIUS (°C) OR FAHRENHEIT (°F) SUPPLY VOLTAGE (VAC) LOAD (W) OVERVOLTAGE CATEGORY
SIBTE12C °C 120-240  300-2500 II (1500V)
SIBTE12F °F
SIBTE13C °C 277-347 III (2500V)
SIBTE13F °F
Built-in control device
Thermistor used as a sensor, carries no charging current
Class A software
Enclosure protection rating IP20
Power supply type Device designed for alternating current only
Load control type Resistive
Action Type 1.Y
Pollution level 2
Frequency 60 Hz
Overload protection device external to the control Circuit breaker (refer to local electrical code)
Operating temperature -20°C to 65°C (-4°F to 149°F)
Storage temperature -40°C to 65°C (-40°F to 149°F)

LIMITED °STELPRO WARRANTY

Limited three-year warranty. See details on www.stelpro.com

WHAT’S IN THE BOX
One (1) thermostat, one (1) control interface, two (2) screws, three (3) twist-on wire connector

MATERIAL REQUIRED
Hammer, #2 Phillips Icons  or #2 Robertson Icons screwdriver

STELPRO DESIGN INC

Saint-Bruno-de-Montarville, Quebec, Canada, J3V 6L7
