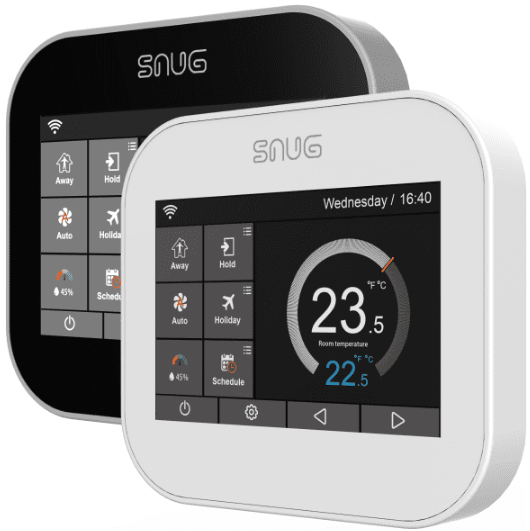

SNUGSTAT DUO Smart Wi-Fi THERMOSTAT
OVERVIEW
Snugstat Duo Wi-Fi thermostats offer instant control, from anywhere – the car, the bar or the office. With GeoSmart technology, they turn the heating off when you leave the house and on when you’re approaching home. They’re even self-learning, so they remember how long it takes to reach the right temperature and switch on at the right time – hassle-free, cost-effective and energy efficient. The controller is designed to operate both underfloor Heating/ central heating and towel radiators/hot water.
KEY FEATURES
- Can be controlled remotely from your smartphone
- Self-learning for optimum comfort and efficiency
- Smartdynamicgeo-location function
- Automatic brightness dimmer
- Helpful holiday mode
- Inbuilt temperature and humidity sensor
- Can be set to control air, floor or air and floor
- Comes complete with floor probe (only available on e-version)
- Channel 1: programmable time and temperature, Channel 2: Programmable time
- The free app, which is compatible with both Android and iOS
SPECIFICATIONS
| Supply | 3500w / 230V |
| Temperature Range | 5⁰ to 35⁰C |
| Unit Size | 85mm x 95mm |
| Wall Incision Depth | 35mm |
| Warranty | 2 year manufacturer’s warranty |
| IP Protection | IP20 |
| Probe | 10K NTC |
FEATURES TABLE
| Temperature Range | 5 – 45°C |
| Full Colour Touch Screen Display | Y |
| Non-Programable Mode | Y |
| 5/2 Day Programming Mode | Y |
| 7 Day Programming Mode | Y |
| 24 Hour Mode | Y |
| Number of Heating Levels | 4 |
| Number of Switching Times (Timer Mode) | 4 |
| Full Calendar Holiday Mode | Y |
| Passcode Lock | Y |
| Temperature Hold Function | Y |
| Temperature Override | Y |
| Temperature Limit | Y |
| Output Delay | Y |
| Frost Protection Mode (5 – 17°C) | Y |
| °C / °F Option | Y |
| Built-In Air Sensor | Y |
| Remote Air Sensing Mode | Y |
| Remote Floor Sensing Mode | Y |
| Max Switching Differential | 16A |
| Accuracy +/- | 1°C |
| Supply | 230V AC |
| Installed Dimensions (mm) | 95x85x13.5 |
| Weight | 159g |
| Wi-Fi Enabled | Y |

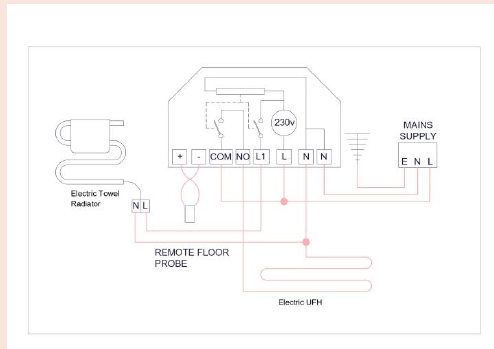

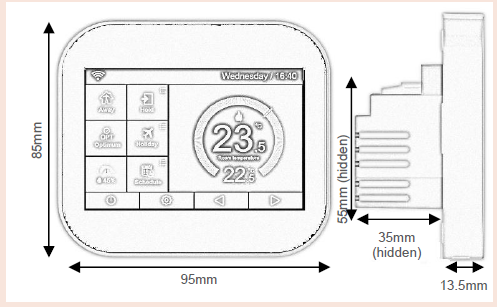

DIMENSIONS AND WIRING SPECIFICATION
Snugstat
- WWW.FIRST-TRACEHEATING.CO.UK
- [email protected]
- 01772 761333
