SNUGSTAT Button-Press Thermostat Product Specifications Guide

Snug

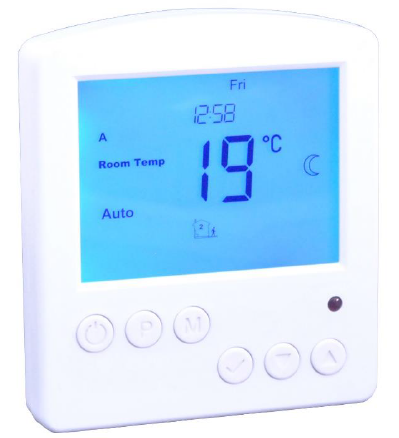

SNUGSTAT Button-Press Thermostat

SNUGSTAT-Button-Press-Thermostat-PRODUCT

OVERVIEW

Our programmable button-press thermostat is our entry-level controller that combines simple programming, and a crisp clear display with affordability. The button-press thermostat has the ability to control air, floor, or air and floor together, and can be set as a 5-2 day or a 7-day program for maximum usability. It also has 4 temperatures and timed periods per day, making the thermostat a cost-effective alternative.

KEY FEATURES

  • Simple to use
  • Large LCD screen
  • Available in white or silver
  • Built-in temperature limiter for laminated and wood floors
  • Comes complete with a floor probe (only available on e-version)

SPECIFICATIONS

Supply 3500w / 230V
Temperature Range 5⁰ to 35⁰C
Screen Dimensions 86mm x 98mm
Depth of Unit in the Wall 25mm
Depth from Wall to Front 15mm
Warranty 2 year manufacturer’s warranty
IP Protection IP20

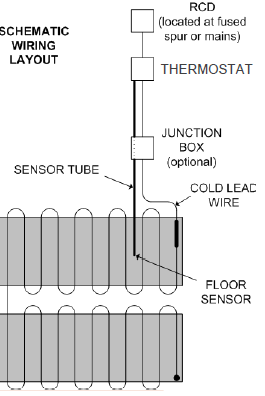

Wiring SPECIFICATIONS

SNUGSTAT-Button-Press-Thermostat-FIG-1

FEATURES TABLE

Temperature Range 5 – 35°C
Full Colour Touch Screen Display N
Non-Programable Mode Y
5/2 Day Programming Mode Y
7 Day Programming Mode Y
24 Hour Mode Y
Number of Heating Levels 4
Number of Switching Times (Timer Mode) N
Full Calendar Holiday Mode N
Lock Function Y
Temperature Hold Function N
Temperature Override Y
Temperature Limit Y
Output Delay Y
Frost Protection Mode Y
°C / °F Option Y
Built-In Air Sensor Y
Remote Air Sensing Mode N
Remote Floor Sensing Mode Y
Max Switching Differential 16A
Accuracy +/- 1°C
Supply 230V AC
Installed Dimensions (mm) 98x86x15
Weight 190g
Wi-Fi Enabled N
