SNUGSTAT 2 Channel Duo Thermostat Product Specifications Guide

Snug

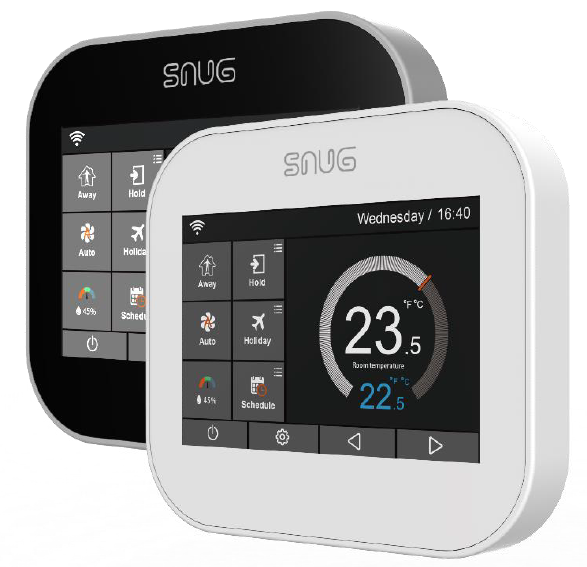

SNUGSTAT 2 Channel Duo Thermostat

SNUGSTAT-2-Channel-Duo-Thermostat-FIG-2

OVERVIEW

2 Channel thermostat offers amazing smart control
of your floor heating/central heating and your electric towel radiators/ hot water cylinder.
They’re even self-learning, so they remember how long it takes to reach the right temperature and
switch on at the right time – hassle-free, cost-effective, and energy efficient.
The controller is designed to operate both underfloor Heating/ central heating and towel radiators/ hot water.

KEY FEATURES

  • Self-learning for optimum comfort and efficiency
  • Automatic brightness dimmer
  • Helpful holiday mode
  • Inbuilt temperature and humidity sensor
  • Can be set to control air, floor or air and floor
  • Comes complete with floor probe (only available on e-version)
  • Channel 1: programmable time and temperature, Channel 2: Programmable time

SPECIFICATIONS

Supply 3500w / 230V
Temperature Range 5⁰ to 35⁰C
Unit Size 85mm x 95mm
Wall Incision Depth 35mm
Warranty 2 year manufacturer’s warranty
IP Protection IP20
Probe 10K NTC

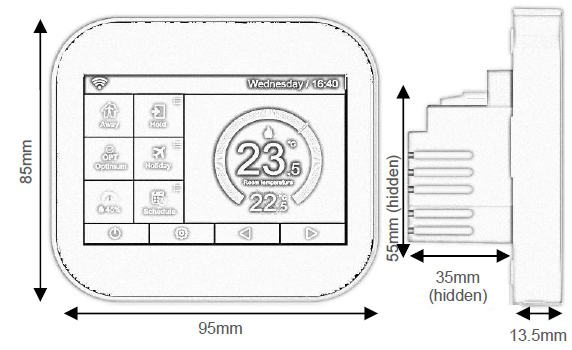

All dimensions in mm unless otherwise stated

SNUGSTAT-2-Channel-Duo-Thermostat-FIG-1SNUGSTAT-2-Channel-Duo-Thermostat-FIG-2



FEATURES TABLE

Temperature Range 5 – 45°C
Full Colour Touch Screen Display Y
Non-Programable Mode Y
5/2 Day Programming Mode Y
7 Day Programming Mode Y
24 Hour Mode Y
Number of Heating Levels 4
Number of Switching Times (Timer Mode) 4
Full Calendar Holiday Mode Y
Passcode Lock Y
Temperature Hold Function Y
Temperature Override Y
Temperature Limit Y
Output Delay Y
Frost Protection Mode (5 – 17°C) Y
°C / °F Option Y
Built-In Air Sensor Y
Remote Air Sensing Mode Y
Remote Floor Sensing Mode Y
Max Switching Differential 16A
Accuracy +/- 1°C
Supply 230V AC
Installed Dimensions (mm) 95x85x13.5
Weight 159g

WWW.FIRST-TRACEHEATING.CO.UK

[email protected]
01772 761333
