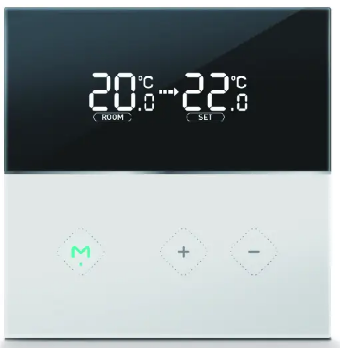

SMLG M1 Room Temperature Controller Thermostat
Specification
- Warranty: 5 years
- After-sale Service: Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other
- Material: Anti-flammable PC +ABS
- Project Solution Capability: graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
- Application: Hotel
- Design Style: Modern
- Place of Origin: Shanghai, China
- Brand Name: SMLG
- Model Number: M1
- Color: White/ Black&White
- Size: 86*86*11mm
- Sensor: NTC 10K B 25/50: 3950K
- Screen: LCD
- Language: English
- Temperature Range: 5~35°C
- Accuracy: ±1°C
- Input: 220VAC±10%50/60HZ
- Output: 5A*220VAC
Introduction
The SMLG M1 Room Temperature Controller Thermostat is a sophisticated device designed to accurately control and maintain the temperature in a room or space. It is an advanced thermostat that combines modern technology with user-friendly features to provide optimal comfort and energy efficiency. The SMLG M1 thermostat is equipped with a range of sensors and intelligent algorithms that allow it to measure and regulate the temperature with high precision. It typically includes a built-in temperature sensor that detects the current temperature of the room. Additionally, it may have other sensors such as humidity sensors to provide a comprehensive environmental assessment.
One of the key features of the SMLG M1 thermostat is its ability to actively adjust the heating or cooling system based on the desired temperature settings. Users can program the thermostat to maintain specific temperature levels throughout the day, ensuring that the room remains comfortable at all times. This functionality can significantly reduce energy consumption and contribute to cost savings. Moreover, the SMLG M1 thermostat often comes with a user-friendly interface, typically a digital display, where users can easily view and adjust the temperature settings. It may also have programmable scheduling options, allowing users to set different temperature profiles for different times of the day or days of the week.
Furthermore, the SMLG M1 thermostat may offer connectivity features, such as Wi-Fi or Bluetooth, enabling remote access and control through compatible mobile applications. This allows users to monitor and adjust the temperature even when they are away from the room or building, providing convenience and flexibility. The SMLG M1 Room Temperature Controller Thermostat is a state-of-the-art device that combines precise temperature regulation, energy efficiency, and user-friendly features. It provides a comfortable environment while helping to reduce energy consumption, making it an ideal choice for both residential and commercial applications.
What Is In The Box
- Thermostat
- User Manual
- Screws
- External Sensor
Thermostat
Heating thermostat with LCD screen. The thermostat is recommended for the control of electric heating devices or on/off valve actuators in hydronic underfloor heating.
Installation Instruction
- Environment:
- Install to an 86*86 box, powered by 220V AC
- Install to an 86*86 box, powered by 220V AC
- Power off:
- Before installation, you must cut off the power
Thermal Actuator
The actuators are mainly used in floor heating systems to control the closing and opening of the valves. It is specifically applied to the electric drive part of the branch manifold valve, small valve and dynamic balance valve.

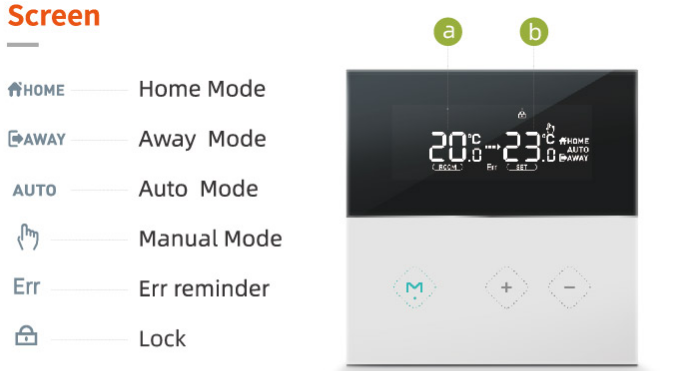

Screen
Button Functions
- Press’m’: Switch mode;
- Press’ +’: Increase the temperature;
- Press’ -‘: Decrease the temperature;
- Long press’ m ‘for 3s: Power on or off;
- Long press’ – ‘for 35:
- Enter the pairing WiFi mode;
- Long Press’ m ‘ &’- ‘for 35:
- Lock/Unlock.

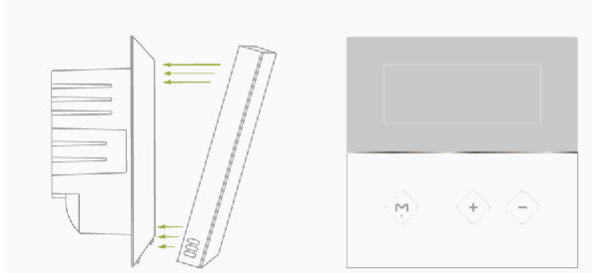

Install Steps
- Connect each wiring
- Connect the steel to the 86 box ;
- Buckle up the power box and panel( Bottom-up).

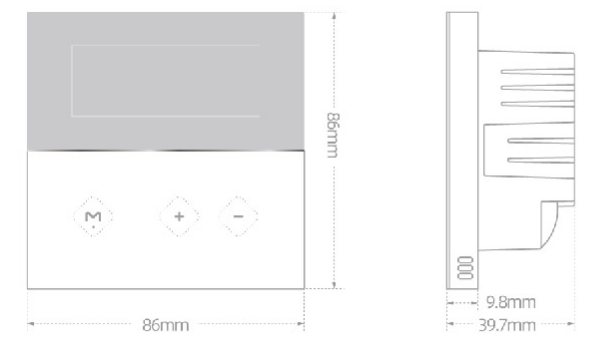

Dimension
Other Operation
External & Internal Temperature Check:
In internal and external sensor mode, long press ‘ M’ and ‘ + ‘ to switch the internal temperature or the external temperature. ( The internal temperature is displayed by default. If the displayed value is the external temperature, the ROOM icon will not light up.)
Temperature Protection Warning:
When the temperature is higher or lower than the protection value, will flash; then the valve will auto close or open, and adjust the temperature to 2°C lower or 2°C higher than the protection value, will stop flashing and the protection mode will be canceled.
ERR Exception
When the ‘ Err ‘light up, it means the sensor mode was wrong or the sensor was broken. And the temperature value in the screen will show’-
FAQS
Q: What is the purpose of the SMLG M1 thermostat?
A: The SMLG M1 thermostat is designed to control and maintain the temperature in a room or space.
Q: How does the SMLG M1 thermostat measure the temperature?
A: It typically includes a built-in temperature sensor that detects the current temperature of the room.
Q: Can the SMLG M1 thermostat regulate both heating and cooling systems?
A: Yes, the SMLG M1 thermostat can control both heating and cooling systems to maintain the desired temperature.
Q: Does the SMLG M1 thermostat have a programmable schedule feature?
A: Yes, it often includes programmable scheduling options, allowing users to set different temperature profiles for different times of the day or days of the week.
Q: Can the SMLG M1 thermostat be controlled remotely?
A: Yes, it may offer connectivity features like Wi-Fi or Bluetooth, enabling remote access and control through compatible mobile applications.
Q: Does the SMLG M1 thermostat have a digital display?
A: Yes, it typically includes a user-friendly digital display where users can view and adjust the temperature settings.
Q: Does the SMLG M1 thermostat have humidity sensing capabilities?
A: Some models of the SMLG M1 thermostat may include humidity sensors to provide a comprehensive environmental assessment.
Q: Can the SMLG M1 thermostat help save energy?
A: Yes, by actively adjusting the heating or cooling system based on the desired temperature settings, the SMLG M1 thermostat can help reduce energy consumption.
Q: Can the SMLG M1 thermostat learn user preferences over time?
A: The SMLG M1 thermostat may have advanced learning algorithms that adapt to user preferences over time, optimizing temperature control.
Q: Does the SMLG M1 thermostat support multi-zone control?
A: Some versions of the SMLG M1 thermostat may support multi-zone control, allowing independent temperature regulation in different areas or rooms.
Q: Is the SMLG M1 thermostat compatible with voice control systems?
A: Depending on the model, the SMLG M1 thermostat may support integration with popular voice control systems like Amazon Alexa or Google Assistant.
Q: Can the SMLG M1 thermostat provide energy consumption reports?
A: Some versions of the SMLG M1 thermostat may offer energy consumption reports, allowing users to monitor their usage and make informed decisions.
Q: Does the SMLG M1 thermostat have a battery backup?
A: The SMLG M1 thermostat may have a battery backup to maintain functionality during power outages.
Q: Can the SMLG M1 thermostat be installed in both residential and commercial settings?
A: Yes, the SMLG M1 thermostat is suitable for both residential and commercial applications.
Q: Does the SMLG M1 thermostat come with a warranty?
A: The warranty coverage may vary depending on the manufacturer or seller, so it’s important to check the specific terms and conditions when purchasing the thermostat.
