Siemens iQ500 RDH100 Room Thermostats
Operating instruction

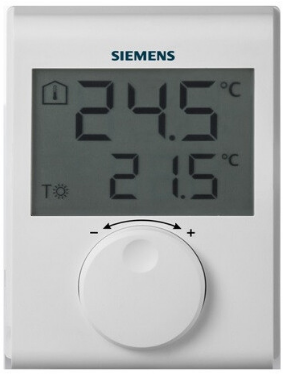

The RDH100 is a room thermostat that allows you to set the desired room temperature (setpoint) for the desired time. The unit features an ergonomic setting knob for easy temperature control
Display
Commissioning
Initial power-up
Once batteries are inserted, all symbols are displayed as shown for about 2 seconds.
Selecting the required temperature
Turn the setting knob counter-clockwise to decrease the setpoint, or clockwise to increase the setpoint in increments of 0.5 °C·The required temperature is displayed next to the comfort temperature symbol
RDH100
WIRING DIAGRAM
Changing the batteries
- Get 2 new alkaline batteries to type AA, 1.5 V.
- Within 1 minute: pull out the battery compartment and remove the batteries, insert the new batteries, and replace the battery compartment.
- Make certain the old batteries are disposed of properly, in compliance with environmental requirements
Energy-saving tips without sacrificing comfort
- Never allow room temperatures to exceed 21 ˚C
-
Air out rooms for short periods of time only, but properly, with the windows wide open
Siemens
- Issued by
- Siemens Switzerland Ltd., 2017
- Siemens Switzerland Ltd
- Technical specifications and availability are subject to change without notice.
- Building Technologies Division
- International Headquarters
- Gubelstrasse 22
- CH-6301 Zug
- Tel. +41 41-724 24 24
- www.siemens.com/buildingtechnologies
