SHUWEI BAC-002-MLN Smart Home Thermostat User Manual

 SHUWEI

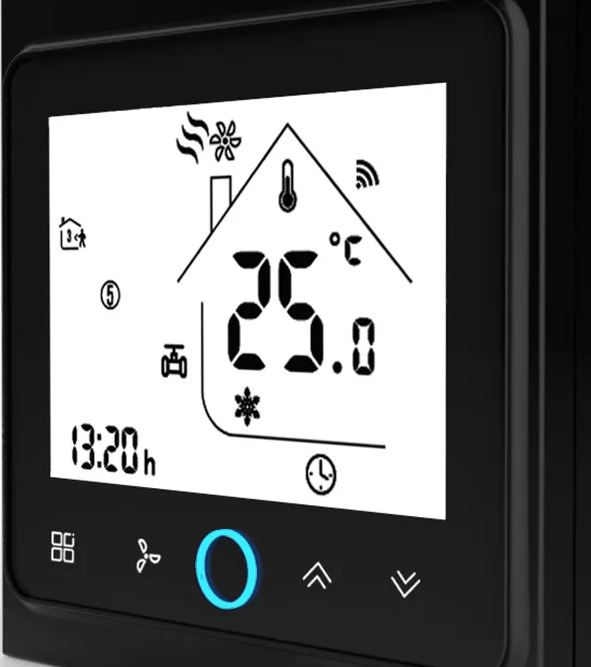

SHUWEI BAC-002-MLN Smart Home Thermostat

SHUWEI-BAC-002-MLN-Smart-Home-Thermostat-Imgg

Specifications

  • Sensor: NTC,10K
  • Pipe: 2 pipes
  • Housing color: White/Black/Customize
  • Design Style: Traditional
  • Brand: SHUWEI

Introduction

The SHUWEI BAC-002-MLN Smart Home Thermostat is an advanced and intelligent device designed to enhance the comfort and energy efficiency of your home. With its innovative features and user-friendly interface, this thermostat offers convenient control over your heating and cooling systems, allowing you to create the ideal environment while reducing energy consumption. The BAC-002-MLN thermostat utilizes cutting-edge technology to provide precise temperature regulation and optimize energy usage. By connecting to your home’s Wi-Fi network, it enables seamless control through a dedicated mobile app or voice commands when integrated with virtual assistants like Alexa or Google Assistant.

One of the key advantages of the SHUWEI BAC-002-MLN is its programmable scheduling feature. You can easily set customized temperature schedules based on your daily routines and preferences. This allows you to automatically adjust the temperature to conserve energy while ensuring your home is comfortable when you need it. The thermostat also offers intelligent learning capabilities. It analyzes your temperature preferences and occupancy patterns over time to automatically optimize the heating and cooling settings. This adaptive feature not only maximizes comfort but also helps reduce energy waste by avoiding unnecessary heating or cooling when you’re not at home.

What’s In the Box?

  • SHUWEI BAC-002-MLN Smart Home Thermostat
  • Mounting Plate
  • Screws and Anchors
  • Jumper Wire
  • User Manual

How To Operate?

Operating the SHUWEI BAC-002-MLN Smart Home Thermostat is relatively straightforward. Here are the general steps to operate the thermostat:

Install the Thermostat

  • Follow the installation instructions provided in the user manual to mount the thermostat on the wall and connect it to your HVAC system.
  • Ensure that the thermostat is connected to a power source, either through batteries or a wired connection, as specified in the user manual.

Power On and Set Up

  • Once the thermostat is installed and powered on, the display should light up.
  • Follow the on-screen prompts, if any, to set up basic preferences like language, date, and time. Refer to the user manual for specific instructions.

Connect to Wi-Fi

  • Using the thermostat’s display and controls, navigate to the Wi-Fi setup menu.
  • Select your home Wi-Fi network from the list of available networks and enter the network password, if required.
  • Allow the thermostat to establish a connection to your Wi-Fi network. This step is necessary for remote control and monitoring.

Adjust Temperature

  • The primary function of the thermostat is to control the temperature in your home. On the thermostat display, you will typically find buttons or a touchscreen interface to adjust the temperature settings.
  • Use the up and down buttons or the touchscreen controls to set the desired temperature for heating and cooling modes.

Program Schedule

  • Most smart thermostats, including the BAC-002-MLN, offer programmable scheduling capabilities.
  • Access the scheduling menu on the thermostat’s display or through the companion mobile app.
  • Set specific temperature settings for different times of the day or days of the week to create a personalized schedule that suits your routine.

Use Mobile App or Voice Commands

  • If the BAC-002-MLN thermostat is compatible with a mobile app or virtual assistants like Alexa or Google Assistant, you can control it remotely.
  • Download the companion mobile app and follow the setup instructions to connect the thermostat to your app.
  • Use the app to adjust temperature settings, program schedules, monitor energy usage, and access additional features.

Monitor Energy Usage

  • Many smart thermostats provide energy monitoring capabilities, allowing you to track your HVAC system’s energy consumption.
  • Refer to the thermostat’s display or the mobile app to access energy usage data and make informed decisions to optimize energy efficiency.

How To Mount?

To mount the SHUWEI BAC-002-MLN Smart Home Thermostat, follow these general steps:

Choose the Mounting Location:

  • Select a suitable location on the wall where you want to install the thermostat.
  • Ensure the location is easily accessible for temperature adjustments and has proper airflow for accurate temperature readings.

Turn Off Power:

  • Before starting the installation, turn off the power to your HVAC system at the circuit breaker or main power switch to ensure safety.
  • Remove Old Thermostat (if applicable):
  • If you’re replacing an existing thermostat, carefully remove it from the wall by disconnecting the wiring and removing any mounting screws.

Install the Mounting Plate:

  • Take the mounting plate provided with the thermostat and align it with the chosen location on the wall.
  • Hold the plate against the wall and mark the screw holes with a pencil or pen.
  • Use a drill and appropriate size bit to create holes at the marked positions.
  • Insert wall anchors into the holes (if provided) for additional stability.

Connect Wiring

  • Depending on your HVAC system and the thermostat’s wiring requirements, connect the wiring to the terminals on the mounting plate.
  • Follow the wiring diagram in the user manual for proper connections.
  • Ensure the wires are securely fastened, and there is no bare wire exposed that could cause a short circuit.

Attach the Thermostat Unit

  • Align the thermostat unit with the mounting plate.
  • Carefully slide the unit onto the plate, making sure the connectors on the back of the unit align with the terminals on the mounting plate.
  • Apply gentle pressure to snap the thermostat unit into place on the mounting plate.

Power On and Test

  • Turn the power back on at the circuit breaker or main power switch for your HVAC system.
  • The thermostat should power on and display the initial setup screen.
  • Follow the on-screen prompts or refer to the user manual to complete the initial setup and configuration.

Frequently Asked Questions

Q: Is the SHUWEI BAC-002-MLN thermostat compatible with my HVAC system?
A: The SHUWEI BAC-002-MLN thermostat is designed to be compatible with most standard heating and cooling systems. However, it’s always recommended to check the compatibility with your specific HVAC system before purchasing. Refer to the product documentation or consult the manufacturer’s website for compatibility information.

Q: Can I control the SHUWEI BAC-002-MLN thermostat remotely?
A: Yes, the SHUWEI BAC-002-MLN thermostat is designed to be controlled remotely. Once connected to your home’s Wi-Fi network, you can use a companion mobile app to adjust temperature settings, program schedules, and monitor energy usage from anywhere with an internet connection.

Q: Does the SHUWEI BAC-002-MLN thermostat have a scheduling feature?
A: Yes, the SHUWEI BAC-002-MLN thermostat typically offers programmable scheduling capabilities. You can set customized temperature schedules based on your daily routines, allowing the thermostat to automatically adjust the temperature according to your preferred settings at different times of the day or days of the week.

Q: Is the SHUWEI BAC-002-MLN thermostat easy to install?
A: The installation process for the SHUWEI BAC-002-MLN thermostat can vary depending on your HVAC system and wiring setup. While some users may be able to install it themselves by following the provided instructions, others might prefer to hire a professional HVAC technician for installation. Refer to the user manual and installation guide for detailed instructions.

Q: Can I integrate the SHUWEI BAC-002-MLN thermostat with smart home systems or virtual assistants?
A: The compatibility of the SHUWEI BAC-002-MLN thermostat with smart home systems or virtual assistants may vary. Some models may offer integration with popular smart home ecosystems like Alexa, Google Assistant, or Apple HomeKit. Check the product specifications or consult the manufacturer’s documentation to confirm compatibility with your preferred smart home ecosystem.

Q: Does the SHUWEI BAC-002-MLN thermostat have energy-saving features?
A: Yes, the SHUWEI BAC-002-MLN thermostat typically includes energy-saving features. It may provide energy monitoring capabilities, allowing you to track and analyze your HVAC system’s energy consumption. Additionally, the programmable scheduling feature helps optimize energy usage by adjusting temperature settings based on your occupancy patterns and preferences.

Q: How can I troubleshoot issues with the SHUWEI BAC-002-MLN thermostat?
A: If you encounter any issues with the SHUWEI BAC-002-MLN thermostat, refer to the troubleshooting section of the user manual. It may provide solutions for common problems you may encounter. If the issue persists, it’s recommended to contact the manufacturer’s customer support for further assistance.
