SHOJZJ 09RF Wireless WIFI RF Thermostat
Specification
- Model Number: 09RF
- Wattage: 90-240v
- Brand Name: SHOJZJ
- Certification: CE, FCC,RoHS
- Origin: Mainland China
- Model Number: Wireless Thermostat
- Charge: USB or Battery
- Voltage: 220 to 240VAC, 50 to 60Hz
- Usage: Indoor
- Display Size: 4.0 – 6.9 Inches
- Use for A: Electric Heating
- Use for B: Water Heating
- Use for C: Boiler Heating
- APP A: Smart Life
- APP B: TUYA
- Max Measuring Temperature: 70°C- 99°C
- Kid lock function: Yes
Introduction
The SHOJZJ 09RF Wireless WIFI RF Thermostat is a state-of-the-art device that allows you to control and manage the temperature of your home or office remotely. This thermostat utilizes both wireless and Wi-Fi technology to provide a convenient and efficient way to adjust the heating or cooling settings in your space. With the SHOJZJ 09RF, you can easily connect the thermostat to your home or office Wi-Fi network, allowing you to control it from anywhere using a smartphone, tablet, or computer. This wireless capability gives you the flexibility to adjust the temperature settings even when you’re not physically present in the space.
The thermostat features RF (Radio Frequency) communication, which enables it to wirelessly communicate with other compatible devices, such as sensors or heating/cooling systems. This allows for seamless integration and synchronization with your existing HVAC (heating, ventilation, and air conditioning) system. One of the key benefits of the SHOJZJ 09RF thermostat is its energy-saving capabilities. It allows you to set different temperature schedules throughout the day, ensuring that your space is heated or cooled efficiently based on your preferences. By optimizing temperature settings, you can potentially reduce energy consumption and lower your utility bills.
Additionally, the SHOJZJ 09RF thermostat often includes advanced features like smart learning algorithms that adapt to your usage patterns over time. This learning capability enables the thermostat to automatically adjust temperature settings based on your behaviors and preferences, providing personalized comfort while maximizing energy efficiency. The SHOJZJ 09RF Wireless WIFI RF Thermostat offers convenience, flexibility, and energy-saving benefits by combining wireless technology, Wi-Fi connectivity, and RF communication. Whether you’re at home or away, this thermostat allows you to effortlessly control the temperature settings in your space for optimal comfort and efficiency.
What Is In The Box
- Thermostat
- User Manual
- Screws
- External Sensor

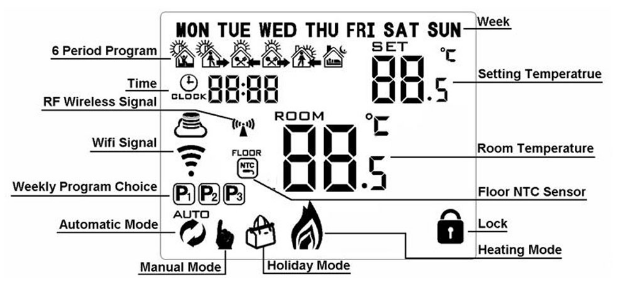

Display
Product Features
- A Set with One Receiver and One Controller: The gas boiler thermostat is with LCD digital display screen and is simple to read. The set contains one receiver connected to the gas boiler or underfloor water or electric heating system, and the other wall-hung controller which is a WiFi version owns smart functions. And the two is connected via RF frequency. (Note: The controller is USB-powered or Battery powered. There are two types of thermostats: One is for gas boilers and underfloor water heating systems, and the other is for underfloor electric heating systems.)
- Smart Home Compatible: Working with Alexa Google Home, SHOJZJ Thermostat offers the most comfortable temperature for your house when your hands are not free by using voice control.
- Smart Phone Remote Control: Remotely control your home temperature to attain advanced comfort via your Smart App, easy to operate on your smartphone anywhere you are. And you can even remotely lock the thermostat so no changes can be made.
- Weekly Programmable: Supports full auto programs or manual set up 6+1,5+2 and 7 days weekly schedule of 6 times period, providing you with the maximum convenience for different situations.Data memory when power is off. Besides, there is a holiday mode is optional for you to enjoy more comfortable temperatures in holidays.
- Family Sharing: Device share to your family members to control your house temperature via smartphone App together. All can enjoy the advanced comfort of the temperature.
Parameter
- Power: Receiver:230VAC 50/60HZ
- Thermostat: USB power supply/4*AAA Batteries Pls remove batteries when USB power is working.
- Display accuracy: 0.5°C
- Insulating condition: Normal environment
- Probe sensor: NTC(10k)1%
- Running program: Set per 1 week as a cycle
- Contact capacity: 5A/250V(WW);16A/250V(WE)
- Output: Switch relay
- Working environment temperature: 0~70°C
- Installation: Wall mounted or on battery seat
- Range of temperature adjustment: 5~35°C
- Size(mm):130*90*25
Work With Alexa
Various Series Range
- for gas boiler heating
- electric floor heating
- water heating
5+2 (factory default)/6+1/7 models 6 times period setting for user choose
Product parameters
USB Powered With Power Off Memery Note The controller is USB powered or Battery powared There is fer underfloor electric heating system.) and the other
Mounting type
wall hanging or stand on desk 4°A.A.A Batteries
Application
- Goa Doller sa mery contact
- Water Valve 5.A
- Electric hearing 16A

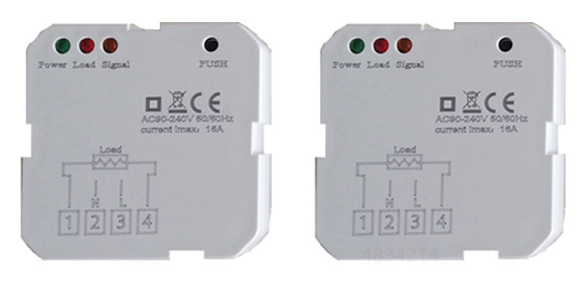

Wifi Multiple receiver controller
If you need to use it, please purchase the Wift multi-receiver controller

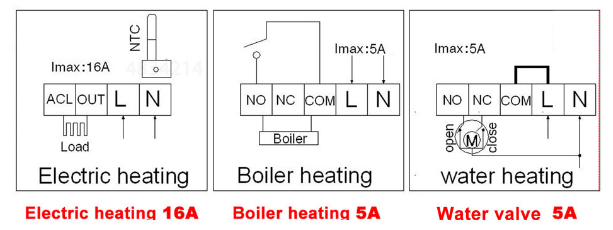

Wiring

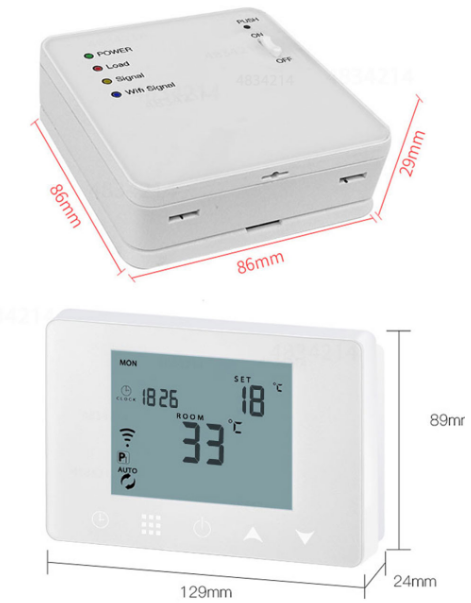

Dimension
FAQS
Q: How does the SHOJZJ 09RF thermostat connect to my Wi-Fi network?
A: The SHOJZJ 09RF thermostat connects to your Wi-Fi network through its built-in Wi-Fi module. You can follow the manufacturer’s instructions to connect it to your network using the provided mobile app or web interface.
Q: Can I control the SHOJZJ 09RF thermostat remotely?
A: Yes, you can control the SHOJZJ 09RF thermostat remotely from anywhere as long as you have an internet connection. Simply use the mobile app or web interface to adjust the temperature settings.
Q: Does the thermostat require a separate hub or gateway for wireless connectivity?
A: No, the SHOJZJ 09RF thermostat does not require a separate hub or gateway for wireless connectivity. It connects directly to your Wi-Fi network without the need for additional devices.
Q: Can I integrate the SHOJZJ 09RF thermostat with my existing HVAC system?
A: Yes, the SHOJZJ 09RF thermostat can be integrated with compatible HVAC systems. It uses RF communication to wirelessly communicate with other devices, such as sensors or heating/cooling systems, allowing for seamless integration.
Q: Does the SHOJZJ 09RF thermostat support multiple temperature schedules?
A: Yes, the SHOJZJ 09RF thermostat typically supports multiple temperature schedules. You can set different temperature settings for different times of the day to match your preferences and lifestyle.
Q: Is the SHOJZJ 09RF thermostat programmable?
A: Yes, the SHOJZJ 09RF thermostat is programmable. You can create custom temperature schedules and programs to automate temperature adjustments throughout the day.
Q: Does the SHOJZJ 09RF thermostat have a learning feature?
A: Some models of the SHOJZJ 09RF thermostat may have a learning feature. It can learn your temperature preferences and usage patterns over time, automatically adjusting settings to provide personalized comfort and energy efficiency.
Q: Can I view and monitor energy usage with the SHOJZJ 09RF thermostat?
A: It depends on the specific model and features of the SHOJZJ 09RF thermostat. Some models may provide energy monitoring features, allowing you to track and analyze your energy usage.
Q: Is the SHOJZJ 09RF thermostat compatible with voice assistants like Alexa or Google Assistant?
A: Compatibility with voice assistants may vary, so it’s best to check the product specifications or contact the manufacturer. Some models of the SHOJZJ 09RF thermostat may offer integration with popular voice assistants for voice control.
Q: Does the SHOJZJ 09RF thermostat have a touchscreen display?
A: The SHOJZJ 09RF thermostat may or may not have a touchscreen display, depending on the specific model. It’s recommended to review the product details or user manual for accurate information.
Q: Can I set up multiple SHOJZJ 09RF thermostats in different zones of my home?
A: Yes, you can set up multiple SHOJZJ 09RF thermostats in different zones of your home or office. Each thermostat can be controlled independently to manage temperature settings in specific areas.
Q: Can I receive alerts or notifications from the SHOJZJ 09RF thermostat?
A: Yes, the SHOJZJ 09RF thermostat may have the capability to send alerts or notifications to your mobile device. These alerts can inform you of temperature changes, maintenance reminders, or system issues, keeping you informed about your HVAC system’s status.
Q: Does the SHOJZJ 09RF thermostat have a battery backup in case of power outages?
A: The availability of a battery backup feature depends on the specific model of the SHOJZJ 09RF thermostat. Some models may include a battery backup to maintain functionality during power outages, ensuring that your temperature settings and schedules are not lost.
Q: Can I control the SHOJZJ 09RF thermostat through a web browser on my computer?
A: Yes, in most cases, the SHOJZJ 09RF thermostat can be controlled through a web browser on your coputer. You can access the thermostat’s interface by entering the relevant web address or IP address in your browser and log in with your credentials to manage temperature settings remotely.
