Sangamo PR2n Programmable Thermostat Product Specification Guide

Sangamo-logo

Sangamo PR2n Programmable Thermostat

Sangamo PR2n Programmable Thermostat PRO

Benefits

The Choice PR2n is a two channel programmer, designed for separate control of your heating and stored hot water. The heating and hot water programs are independant of each other, giving you the opportunity to save money and control your heating in the most energy saving manner possible. The programmer can be configured for 24 hour, 5/2 day or 7 day operation with the flexibility of up to three on/off timings per day

  • Preprogrammed but can easily be changed to suit your particular lifestyle
  • Large and clear to read illuminated display
  • Attractive modern design that will suit all contemporary homes
  • Suitable for pumped or gravity systems

Features

  • 24 hour, 5/2 day and 7 day selectable
  • 2 or 3 ON/OFF periods selectable
  • 1,2 or 3 hour boost
  • Advance to next programmed event
  • Automatic Summer/Winter time change
  • Holiday feature
  • Program options – ON, OFF, All day or Auto
  • Mains powered with battery backup
  • Standard wall plate – simple plug in and replace

Applications

  • Fully pumped central heating systems using mid-position valves, spring return valves or power open, power closed valves.
  • Gravity hot water, pumped heating systems with or without motorised valves fitted into the domestic hot water primary circuit.

Technical Data

  • Power Supply: 230V AC, 50Hz
  • Operating Temperature: 0°C to 40°C
  • Switch Rating: 230V AC, 2(1)Amp (per channel)
  • Contact Type: 1B , Micro-Disconnection
  • Battery Type: Lithium Cell CR2032
  • Enclosure Protection: IP30
  • Plastics: Thermoplastic, flame retardant
  • Insulation Class: Double
  • Wiring: For fixed wiring only
  • Backplate: Industry standard
  • Dimensions: 140mm x 87mm x 37mm
  • Clock: 12 hour am/pm, 1 minute resolution, accuracy +/- 1.5 sec/day
  • BST/GMT time change: Automatic
  • Program Cycle: 24hr, 5/2day or 7day selectable.
  • Program On/offs per day: 2on/off, 3on/off selectable,
  • Program resolution: 10mins
  • Program Selection: Auto, On all day, On constant, off
  • Program Override: 1, 2 or 3 hour, Advance
  • Heating System: Pumped or Gravity
  • Complies with : EN60730-1, EN60730-2.7, EMC Directive 2004/108/EC,
  • LVD Directive 2006/95/EC

Electrical Connections

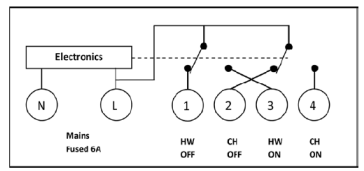

Internal Wiring Diagram

Sangamo PR2n Programmable Thermostat 1

Contact Us: 01475 745131

CUSTOMER CARE POLICY
As part of Sangamo’s continuous improvement program, the Company operates a Customer Care Policy. This means that we welcome your comments and complaints, as it can only help us to improve our services to you, our customer.

Sangamo

Reference

Download Manual:

Sangamo PR2n Programmable Thermostat Product Specification Guide

Other Manual:

Sangamo PR2n Programmable Thermostat Installation Instructions

Sangamo PR2n Programmable Thermostat User Instructions
