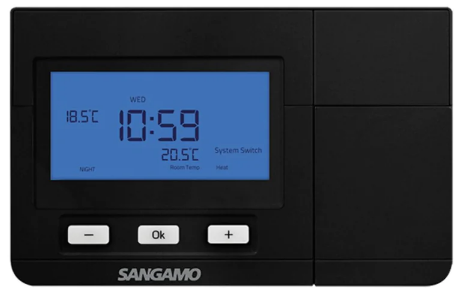

Sangamo CHPRSTATDPB Programmable Room Thermostat
Technical Specification
Product Code: CHPRSTATDPB
Description: Choice Plus Programmable Room Thermostat in Black
General Information Outputs
| Dimensions (mm) | 140 x 88.6 x 32.1 Output Relay Rating | 3A | |
| Finish | Black | ||
| Call for Heat Indication | LCD Display | ||
| Sensor Type | Electronic Sensor for Accurate and
Responsive Performance |
||
| Materials | ABS | ||
| Warranty (Years) | 3 | ||
Programming
| Programming Schedule | 24 Hour or 7 Days |
| Adjustment Type | Digital Programming with Digital
Display |
| Set Temperature Range (°C) | 5 to 35 |
| TPI (Time Proportional & Integral) Control for Heating Efficiency | Yes |
| Temperature Display Range (°C) | 0 to 50 |
| Temperature Swing Adjustment (°C) | 0.5 and 1 |
| Optimisation | Optimum Start/ Delay Start and Optimum Stop for Additional Efficiency |
| Available Operations | Up to 6 per Day |
| Modes Available | 3 (Permanent, Timed, and Temporary
Override) |
| Pre-Programmed Schedule | Yes |
| Summer/Winter Time Change | Yes (Automatic) |
Supply & Power
| Output Relay Rating | 3A |
| Other Power Source (Batteries) | 4 x AAA Batteries |
| Battery Low Indicator | LCD Display |
| Class Description | TPI Room Thermostat, for use with ON/OFF Heaters, Value 2% |
Environment
| Operating Temperature (°C) | 0 to +50 |
| Frost Protection | Yes (5°C) |
Standards
BS EN 60730-1
BS EN 60730-2.9 Unit 7 T
