San-as OCC2 Electronic Thermostat

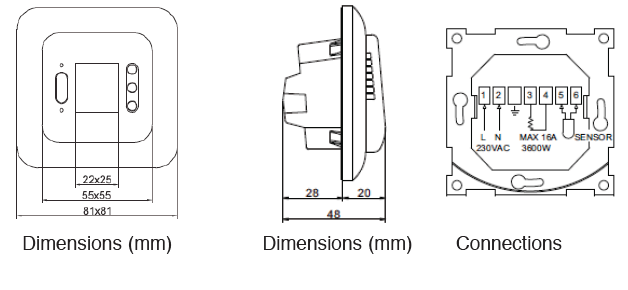

Dimensions
4-Event Clock Thermostat
- On/off control up to 3,500W, 16A
- Built-in clock function for automatic comfort and setback temperature
- Set only time and day at installation. Delivered with factory-set program
- With built-in 2-pole interrupter for convenient sweitching off at airing the room and at summer time
- Adaptive control ensuring comfort temperature at the required time
- Inclined backlit display for better read-out
- Flush mounting in a standard wall socket
- Snap mounting of front cover for easy installation
Elegant European design
Can be mounted in combination with various types of light switches.
Thermostat control
Electronic on/off thermostat for control of temperature by means of a sensor either placed externally or built into the thermostat. The heating output is switched on and off with a differential of only 0.4ºC
Housing IP21
Can be mounted in bathrooms and other humid rooms.
Built-in clock function
OCC2 is with built-in 4-event program for automatic comfort and setback temperature
Technical data
- Supply voltage………………………..230V AC +/-15% 50/60Hz
- Output relay SPST……………….16A, 3,600W resistive load or
- …………………………………………………………. 1A inductive load
- Built-in interrupter……………………………………….. 2-pole, 16A
- Temperature range…………………………………………..+5/+40ºC
- Limitation of range…………………………………………. Min./max.
- Clock function……………………………………… 4-event program
- Ambient temperature…………………. 0/40ºC during operation
- On/off diffrential……………………………………………………. 0.4ºC
- Housing…………………………………………………………………IP21
- Sensor type……………………………………………………………NTC
- Dimensions (H/W/D)………………………………….. 80/80/48 mm
- Size of display (H/W)……………………………………….25/22 mm
San-as
- Tel.: +45 48 39 88 88 –
- Fax: +45 48 39 88 98 –
- [email protected] –
- www.san-as.com
- CVR No.: 42 16 59 13
