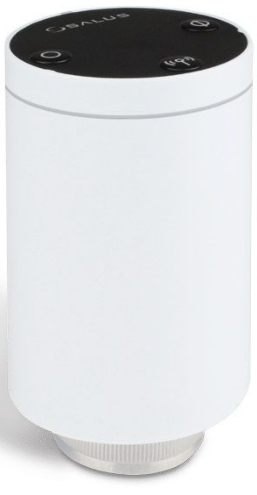

Salus TRV10RFM Wireless Radiator Thermostat

Salus -TRV10RFM- Wireless -Radiator- Thermostat- pro -

Introduction

The TRV10RFM is a wireless battery-powered, thermostatic radiator valve controller using ZigBee wireless communication. Simply replace the existing, passive head on the standard radiator valve with the TRV10RFM. You can connect up to 6 TRV’s to one VS20RF thermostat used with the SALUS universal gateway

Features

  • Easy wireless pairing
  • Automatic valve adaptation
  • Manual on/off buttons
  • LED status indication
  • Buttons can be locked
  • Frost protection function
  • Open window detection function
  • Timescale protection function
  • Optional mounting ring

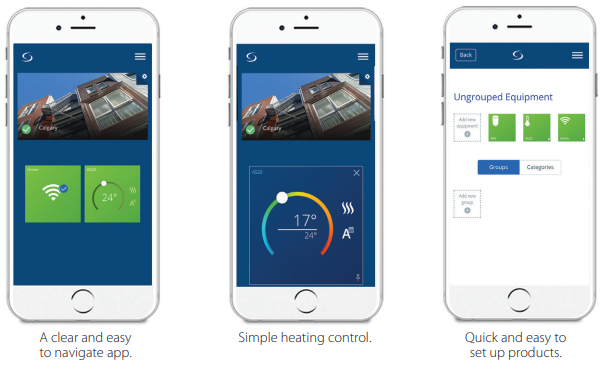

Smart Home App
The Smart Home App is available on IOS and Android. With easy-to-use functions and simple-to-add heating schedules. It is easy to control your individual product settings and heating from anywhere via Smartphone, Tablet or PC using your existing router.Salus -TRV10RFM- Wireless -Radiator- Thermostat- 1Salus -TRV10RFM- Wireless -Radiator- Thermostat- 2

Technical information

  • Type: Hydraulic Radiator Valve DC Motor M30x 1.5
  • Input: Three push buttons
  • Manual open/status indication
  • Manual close/status indication
  • Pairing
  • LED Indicator: Bi-Colour, Red/Green
  • Valve Adaption: Automatic
  • Power Source: 2x AA Batteries
  • Battery Life: 14 Months (low battery indication)
  • Control Method: Modulating
  • Communication: 2.4GHz ZigBee wireless
  • Operating Temperature: 0 to 45ºC / 32 to 113ºF
  • Storage Temperature: -20 to 60°C / -4 to 140ºF
  • Operating Humidity: 5 to 95% RH
  • Protection: IP30
  • Dimensions: W-52 H-85 D-52mm
