Introduction

The DT600 product is an intelligent temperature controller with built-in OpenTherm (OT) circuit, which can be used for indoor ambient temperature regulation in home and office. The user can connect the receiver through the thermostat to control the temperature of the specific environment of the home or office, so as to meet the user’s intelligent needs for the product

Product compliance

This product complies with the essential requirements and other relevant provisions of Directives EMC 2014/30/EU, LVD 2014/35/EU, RED 2014/53/EU and RoHS 2011/65/EU. The full text of the EU Declaration of Conformity is available at the following internet address: www.saluslegal.com

Safety Information
Use in accordance to national and EU regulations . Use the device as intended , keeping it in dry condition.Product for indoor use only. Installation must be carried out by a qualified person in accordance to national and EU requlations.

Technical specification

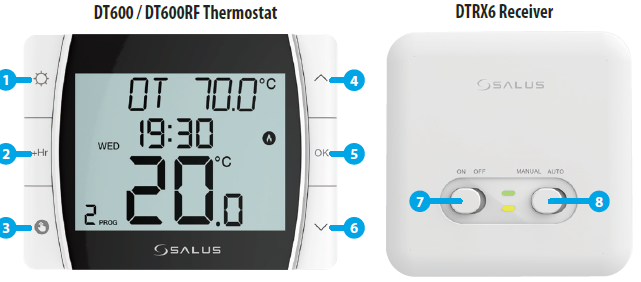

Button functions

  • MENU – enter the menu options, press and hold for 3sec to return to main screen or to deactivate Boost Mode.
  • BOOST – activate Boost Mode.
  • MANUAL – activate / deactivate Manual Mode.
  • UP – increase the temperature and move through menus.
  • OK – confirm changes and enter menus.
  • DOWN – decrease the temperature and move through the menus.
  • When in manual mode, ON will turn the boiler on When in manual mode, OFF will turn the boiler off
  • Receiver operates in automatic mode according to the thermostat/Receiver output is controlled by the On/Off slide switch.Salus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 1

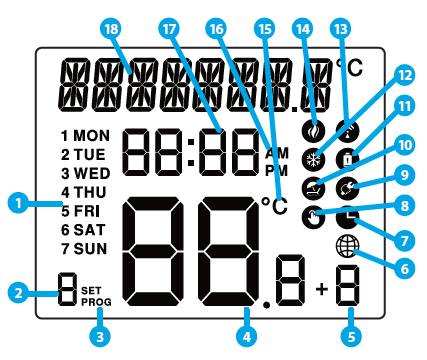

LCD Icon Description

  1. Day of the week
  2. Invalid icon
  3. Program indicator
  4. Manual Mode On
  5. Program number
  6. Invalid icon
  7. Temperature measured/set
  8. Landlord Mode On
  9. Boost function
  10. Holiday Mode On
  11. Frost Protection Mode On
  12. Temperature unit
  13. Clock
  14. Low battery status
  15. Heating Mode On
  16. Wireless connection with the
  17. receiver (Only for RF thermostat)
  18. AM / PM
  19. Text barSalus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 2

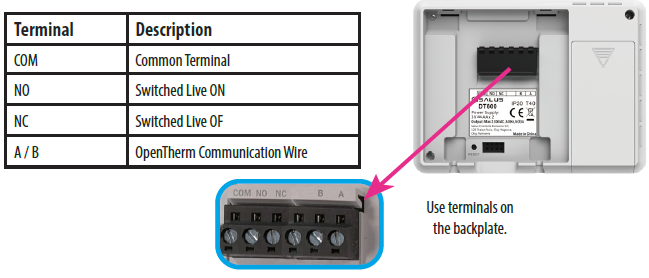

DT600 Thermostat Terminals DescriptionSalus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 3

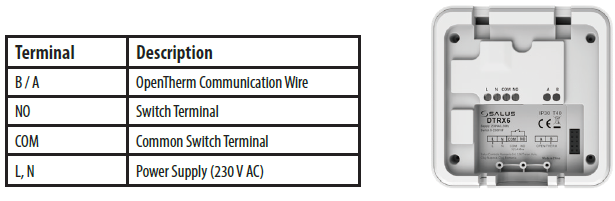

DTRX6 Receiver Terminals Description

Salus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 4.

Wiring Diagram

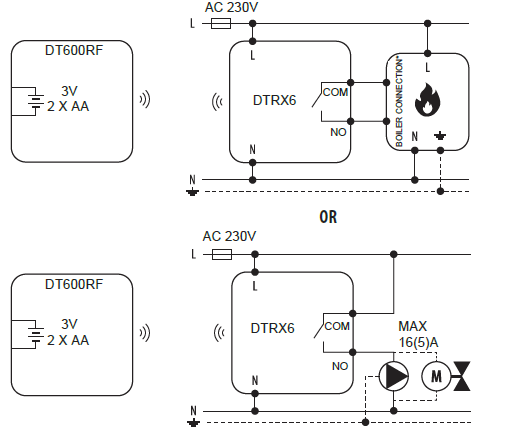

DT600RF Thermostat Wiring DiagramSalus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 5 Salus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 6

DT600 Thermostat Wiring DiagramSalus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 7 Salus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 8

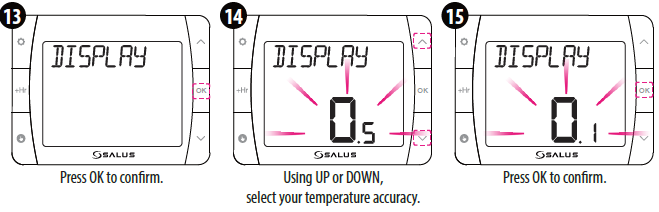

Power Up and ConfigurationSalus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 9 Salus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 10

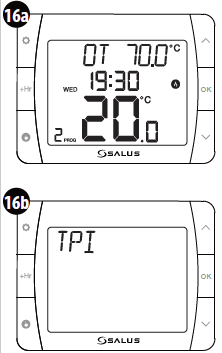

If you have chosen the OpenTherm electrical connection (A / B), the device software will automatically adjust to the OpenTherm settings OpenTherm Modulating Control is a method of control used by modern heating systems. Instead of switching a boiler on and off at intervals, modulating control allows the amount of heat provided by the boiler to be controlled to match the varying demand from the thermostat. This means the customer has greater system efficiency, energy saving and room comfort from our heating controls. Salus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 11

If you have chosen the TPI or SPAN electrical connection (NO/COM contacts), using UP or DOWN, choose one of the two heating control algorithms, TPI or SPAN.Salus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 12

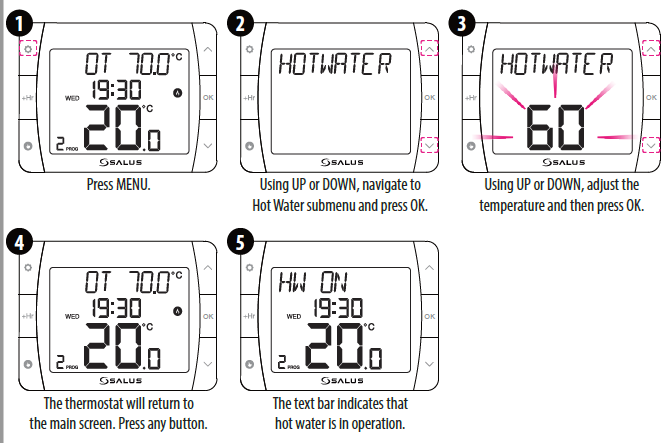

OpenTherm – Hot WaterSalus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 13

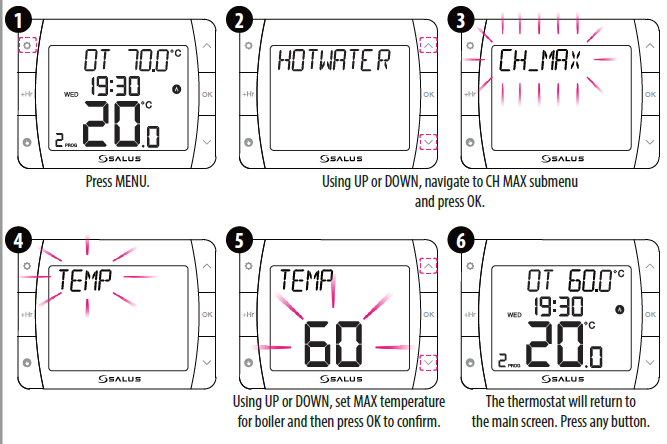

Max boiler temperature settings

Salus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 14

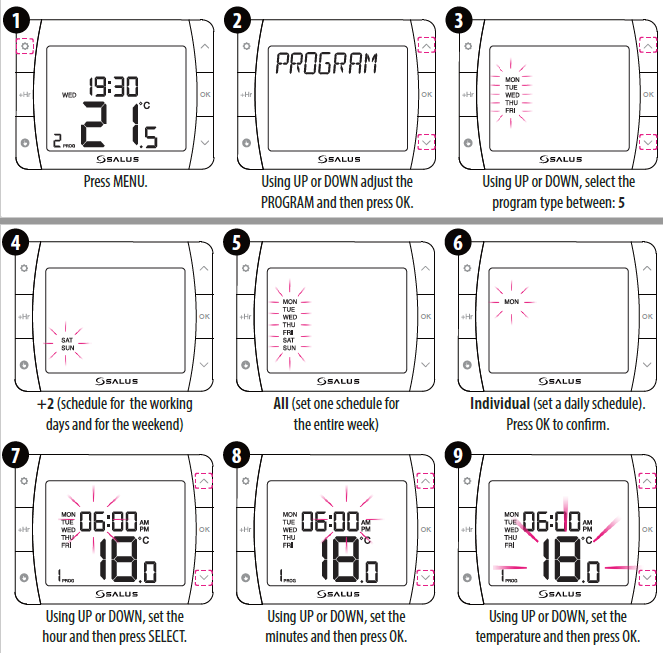

Programming – Automatic ModeSalus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 15

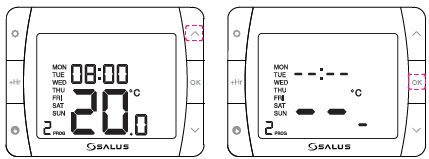

If you do not want to use the 6 temperature intervals / day (ex: 1 eco, 2 comfort), please see below how to delete one or more intervals

Salus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 16

Temporary Override Mode

This function is available only in automatic mode ( Schedule ). If a new setpoint temperature will be set during the schedule – it will be maintained until next time interval starts according to programmed schedule.Salus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 17

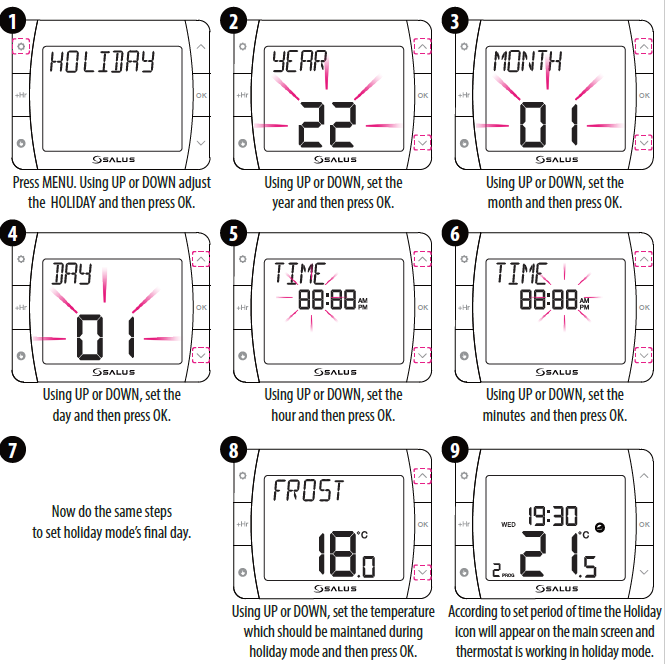

Holiday ModeSalus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 18

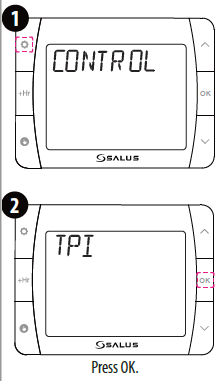

Setting the CONTROLSalus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 19

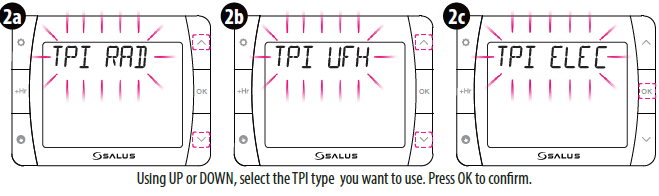

TPI (Time Proportional & Integral) is a self-learning, time proportional algorithm. TPI type of regulation ensures economical system operation through more accurate temperature maintenance during controlling process and limits overload conditions. In addition to the exact and stable room temperature, the advantage of this system is the minimization of energy consumption and significant savings. The product offers 3 types of TPI control: 1. for radiator (6CPH); 2. for underfloor heating (3CPH); 3. for electric heating (9CPH).

Salus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 20

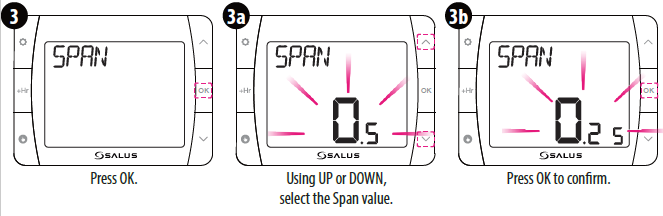

Span is the temperature difference, between which thermostat operates and keeps setpoint temperature. For example, if you set setpoint temperature to 20°C and if the hysteresis is ± 0.5°C, heating will be turned on when the room temperature drops to 19.5°C and turned off when the room temperature reaches 20.5°C.Salus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 21

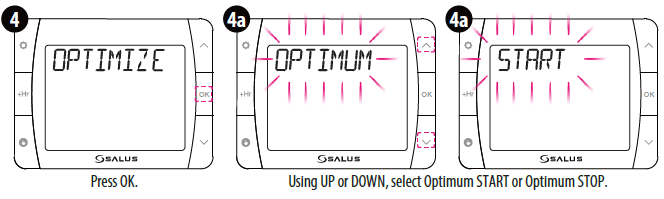

Optimize function

Optimum Start is a selectable function which, depending on the ambient room temperature, will start the boiler operation at the optimum time to achieve the set-point temperature. It saves energy by only firing the boiler for the minimum required time.Salus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 22

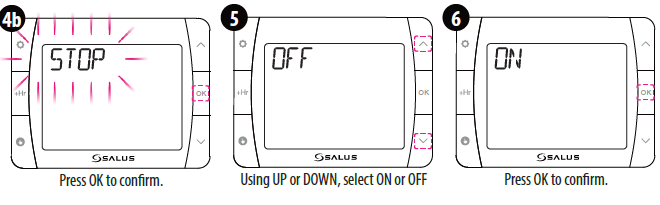

Optimum Stop calculates how long the house will take to cool down, then turns off the boiler at the earliest possible moment, this means the system is not running when it’s not actually necessary. If there is a sudden heat loss during this period, then Optimum Stop will be overridden to regain comfort conditions.

Salus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 23

Landlord Settings

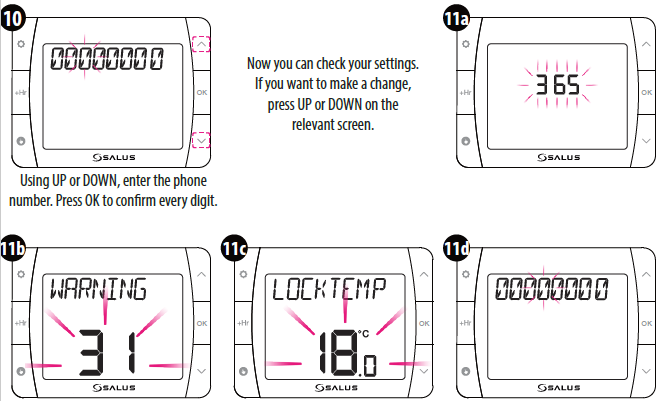

Landlord settings is a pin code protected feature that allows the landlord to set a service reminder on the thermostat that will warn the tenant when the boiler is due its annual serviceSalus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 24Salus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 25

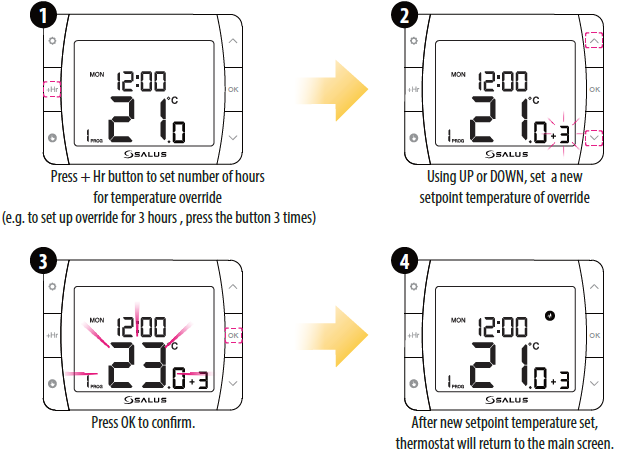

Hourly temperature Override Mode (+Hr)
This function is available in Automatic and Manual Mode . It is used to change the setpoint temperature for a specified number of hours ( up to 9 hours ) . Once that time is over , thermostat returns to previous modeSalus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 26

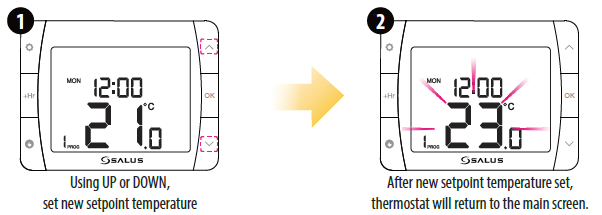

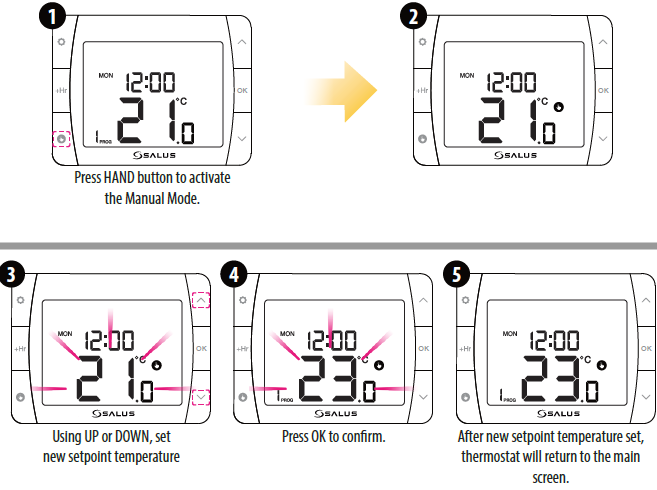

Manual Mode and setting setpoint temperatureSalus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 27

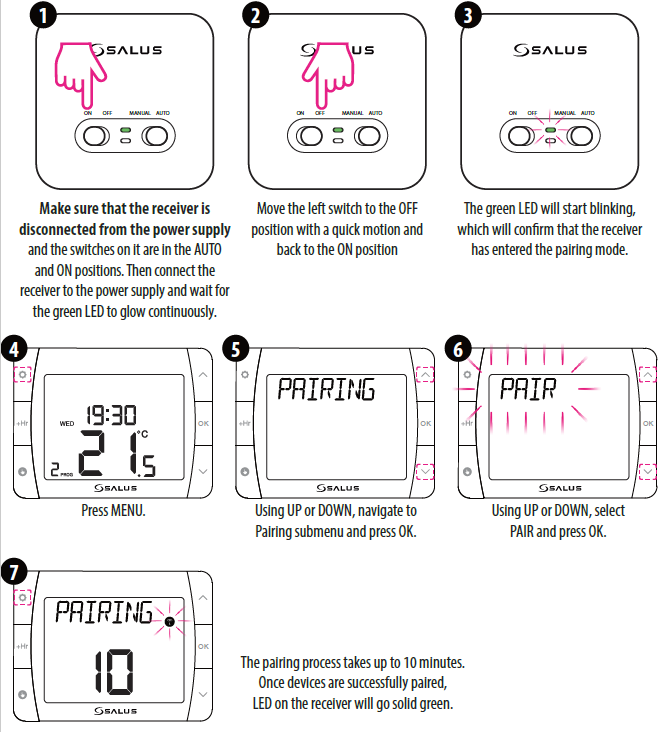

Thermostat Pairing with the Receiver

Note: If you are using the DT600RF pack, the pairing between the thermostat and the receiver is already done. During the pairing process, please make sure the thermostat and the receiver are at least 1 meter from each other

Important note: The communication radius of the thermostat with the receiver is of maximum 100m, in open space. In built space, with various obstacles (eg walls, floors, metal structures, furniture elements), the communication radius will be significantly reduced. RF communication can be disrupted by local factors, such as GSM antennas, radio frequency devices or toys, or other equipment that produces electromagnetic interference. Receivers for the boiler must be powered from a stable voltage source, without frequent interruptions or voltage fluctuations (outside the standard tolerance). The manufacturer is not responsible for identifying or combating the effects of local disturbancesSalus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 28

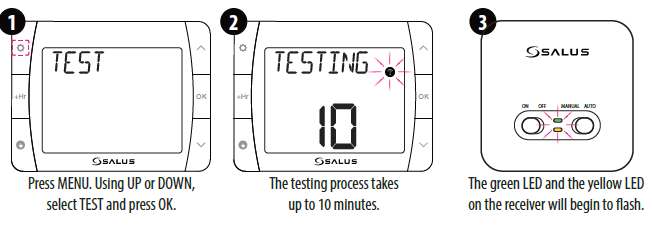

Thermostat Pairing with the ReceiverSalus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 29

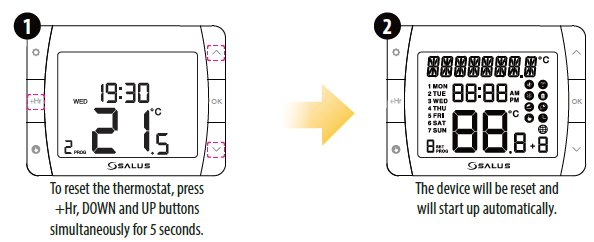

Factory ResetSalus- DT600- PROGRAMMABLE- WIRELESS -THERMOSTAT- 30
