Robertshaw RS9210 Programmable Thermostat Product Specifications Guide

Robertshaw logo

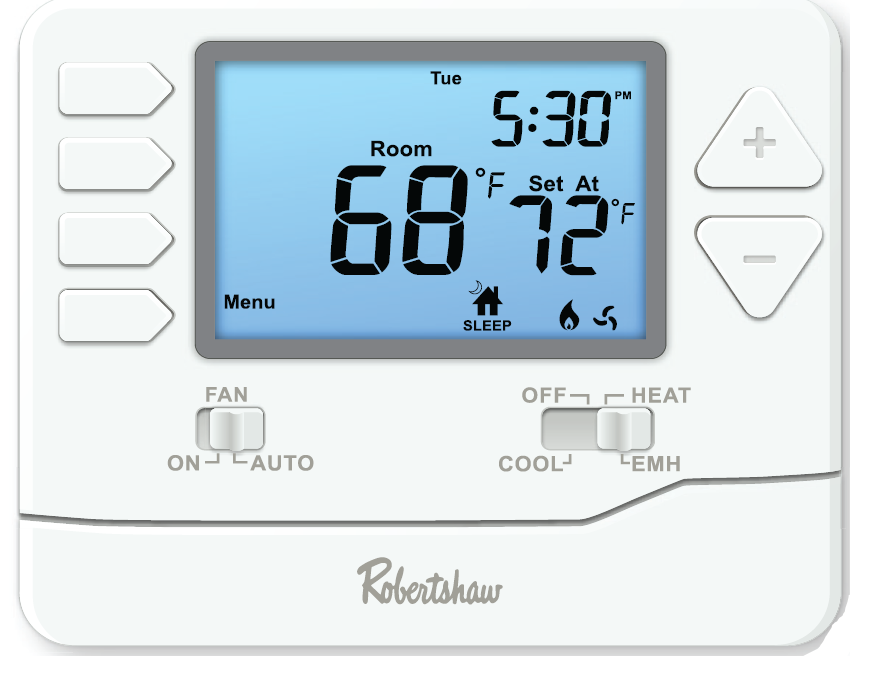

Robertshaw RS9210 Programmable Thermostat

Robertshaw-RS9210-Programmable-Thermostat-Product

Features and Benefits

  • Quick, easy installation
  •  Modern, user-friendly design and operation
  •  7-day, 5-1-1 or non-programmable
  • Large, easy-to-read 4.6-square-inch blue backlit display
  • Filter change reminder (selectable on/off)
  • Adjustable temperature differential (swing)
  • Heat pump-compatible: auxiliary/emergency heat

Description

Contractors can offer owners easy, yet powerful and reliable two-stage heating and one-stage cooling control in a simple, modern design with the RS9210 programmable wall thermostat.

Easy installation.

  • Large terminal blocks
  • Universal sub-base

Easy setup.

  • Quick-access menu button
  • Contractor/technician setup menu
  • Easy-to-understand programming menus
  • Intuitive wake, leave, return, sleep programming icons
  • Factory pre-set energyefficiency program

Simple, yet powerful control.

  • Large, easy-to-read 4.6- square-inch blue backlit display
  • Easy-access front-load battery compartment
  • adjustable temperature differential (swing) for energy optimization and maximum system life
  • Dual fuel compatible
  • Adjustable room temperature calibration
  • Adjustable setpoint limits
  • Five-minute selectable on/off compressor delay protection for short-cycling prevention
  • Separate O and B terminals

Designed and built for reliability.

  • ISO9001-certified

Specifications

  • Dimensions (W x H x D) 4.7 x 3.8 x 1 in. (119.6 x 97.6 x 26 mm)
  • Mounting Wall or junction box
  • System compatibility Two-stage heating and one-stage cooling
  • System fuel source Gas, electric or oil
  • Heat pump compatibility Systems with auxiliary or emergency heat
  • Millivolt application compatibility Yes
  • Temperature range 41°F to 95°F (5°C to 35°C)
  • Control temperature range 44°F to 90°F (7°C to 32°C)
  • Display accuracy ±1°C (at 20°C) / ±1°F (at 68°F)
  • Power sources 24V AC (18 to 30V AC), 50/60 Hz for hardwire (common wire required) or 2 AAA 1.5V alkaline batteries (included)
  • Terminals R, C, Y, W2, W/E, G, O, B
  • 24V AC Powered OR Battery Operation (Included)

Limited Warranty

6Year

Replacement Information

RS9210

  • Pro1® T725
  • Honeywell TH622OD1028, TH4210U2002, TH2110DH1000, TH2210DV1006, TH4210D1005
  • Braeburn® 2220NC, 2200NC, 5020
  • Emerson™ White-Rodgers™ 1F83H-21PR
  • Aprilaire® 8465

Customer Service +1.800.304.6563
[email protected]
www.robertshaw.com
©2021 Robertshaw
1/21 –150-2798
