Robertshaw RS6110 7-Day Programmable Thermostat Product Specifications Guide

Robertshaw logo

Robertshaw RS6110 7-Day Programmable Thermostat

Robertshaw-RS6110-7-Day-Programmable-Product

Seven-Day Comfort Control Simplified

The Robertshaw® RS6000 thermostat family is Simply the Right Choice™ when it comes to daily programmable temperature controls that can save energy and money.
With the comfort, convenience, and efficiency features that homeowners and contractors want, the RS6000 family provides high end features for an affordable price.

  • Fully programmable with soft touch keys to easily set four events per day AND 7 day scheduling.
  • Copy command that makes programming simple to set up and flexible to use.
  • Pop-Up Wizard to customize thermostat settings with an instant start-up menu.

The RS6000 thermostats are fully compatible with all standard 24V AC heating and cooling systems. Additional compatibility with multi-stage gas/electric furnaces and heat pump systems are available in the RS6220.
Add in easy installation, Contractor ID option, and quality you can depend on, and you have the Robertshaw RS6000  thermostat family – Simply the Right Choice.

Features and Benefits

  • Universal Control up to 2 Heat / 2 Cool – RS6220 only
    Operates on both multi-stage gas/electric furnaces and heat pumps means less inventory.
  • Auto Changeover
    Switches automatically between heating and cooling for constant home comfort.
  • Pop-Up Wizard
    Launches instant installation menu to quickly enter the settings for programmed thermostat functions. Bigger Brighter Backlight with Nightlight Option Makes viewing and setting the temperature easier any time of the day.
  • Worry-Free Memory Retention
    Maintains set point and programmed parameters, even during power outages.
  • Easy Change Battery Access
    Provides drop down removable compartment for quick battery replacement.
  • Circulating Fan
    Maintains optimal air circulation between demand cycles for improved comfort with minimal energy use.
  • Adjustable Temperature Differential and Upstaging
    Provides for full selection of parameters to deliver maximum comfort or energy savings.
  • High and Low Setpoint Limits
    Protects the heating and cooling systems by limiting temperature settings.

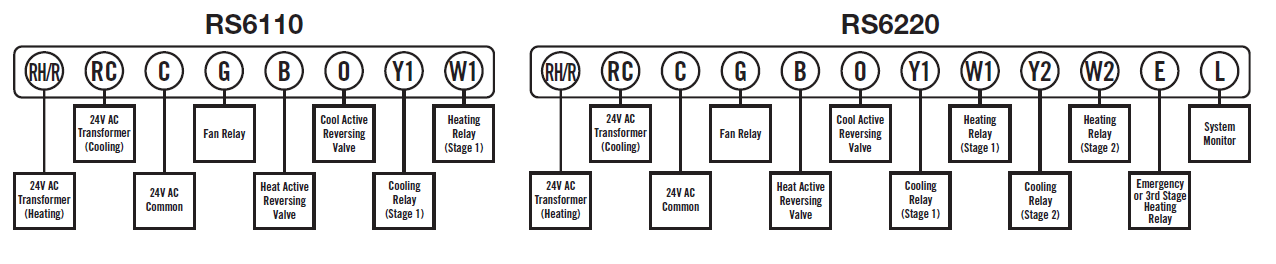

Terminal Designations

Robertshaw-RS6110 7-Day-Programmable-fig.1

Technical Specifications

  • Product Weight 12.8 oz.
  • Electrical Rating 24V AC (18-30V AC)
    1 amp maximum load per terminal
    3 amp total maximum load (all terminals combined)
  • Temp. Control Range 45°F to 90°F (7°C to 32°C)
  • Accuracy ± 1°F (± 0.5°C)
  • Power 24V AC with battery back-up OR 3.0V DC (2 AA alkaline batteries included)
  • System Configurations Two stage gas, electric, oil, millivolt, and up to three stage heat pump systems
  • Terminations RS6110 – RH/R, RC, C, G, B, O, Y1, W1
    RS6220 – RH/R, RC, C, G, B, O, Y1, W1, Y2, W2, E, L

Shipping Specifications

  • Individual Carton Dimensions 6.75” x 4.375” x 1.625”
  • Master Carton Quantity 6
  • Master Carton Dimensions 9.25” x 5.625” x 7.625”
  • Master Carton Weight 5 lbs.
  • Pallet Quantity 1170
  • Pallet Dimensions 40” x 48” x 48”

Replacement Chart

RS6110
Robertshaw 9610
Braeburn® 5000
Honeywell TH6110D


White-Rodgers

1F78-167, 1F80-0471,

1F80-241, 1F80-361,

1F87-361,1F97-1271

RS6220
Robertshaw 9615, 9620
Braeburn® 5200
Lux PSPA722, TX9100E
Honeywell TH6220D
White-Rodgers 1F85-0471, 1F85-277,

1F85-278

Verify specific application requirements before substitution.

Customer Service (Americas) +1.800.304.6563
Customer Service Facsimile +1.800.426.0804
[email protected]

For Technical Service
Telephone +1.800.445.8299
[email protected]

Robertshaw® is a trademark of Robertshaw, its subsidiaries, and/or affiliated companies. All other brands mentioned may be the trademarks of their respective owners.

www.robertshaw.com
©2020 Robertshaw
02/20 – 150-2091 Rev D
