Robertshaw RS3110 5 – 2 Day Programmable Product Specifications Guide

Robertshaw logo

Robertshaw RS3110 5 – 2 Day Programmable

Robertshaw-RS31105 - 2 Day-Programmable-FIG-1

Affordable Comfort Control

The Robertshaw® RS3000 thermostat family is Simply The Right Choice™ when it comes to programmable temperature control that can help reduce energy costs by up to 25%. With the comfort, convenience, and efficiency features that homeowners and contractors want, the RS3000 family provides custom program options in value-packed thermostats for an economical price.

  • Simple touch button controls to set weekly programs for summer and winter.
  • Automated temperature settings for increased heating/cooling comfort.
  • Worry-free memory retention to maintain temperature settings even during power outages.

All RS3000 thermostats are fully compatible with all standard 24V AC heating and cooling systems. The RS3210 offers additional compatibility with single and multi-stage gas/electric furnaces and heat pump systems. Add in easy installation, expert technical service, and quality you can depend on, and you have the Robertshaw RS3000 thermostat family – Simply The Right Choice.

Features and Benefits

5 – 2 Day Programming
Set the weekly program once with four time and temperature settings. The four set points are followed for five consecutive days. On the weekend, four different set points can be set for
all-day comfort.

Multi-Stage 2 Heat / 1 Cool – RS3210 only
Operates on both multi-stage gas/electric furnaces and heat pumps to reduce inventory needed.

Bigger Brighter Backlight
Makes viewing and setting the temperature easier.

Adjustable Temperature Differential
Maintains optimal customer comfort.

Worry-Free Memory Retention – RS3210 only
Maintains set point and programmed parameters, even during power outages.

Filter Monitor
Provides notice when filters need changing.

Low-Temperature Freeze Protection – RS3110 only
Turns on heat automatically when the temperature goes below 37°F. Protects pipes from freezing.

Automatic Compressor Short Cycle Protection
Reduces wear and tear of HVAC equipment with this system safeguard.

Temporary Program Override
Allows for manual temperature adjustment.

Quick Wire Terminal Block
Uses sturdy wire clamps – no wrap-around of screws for fast and easy installation

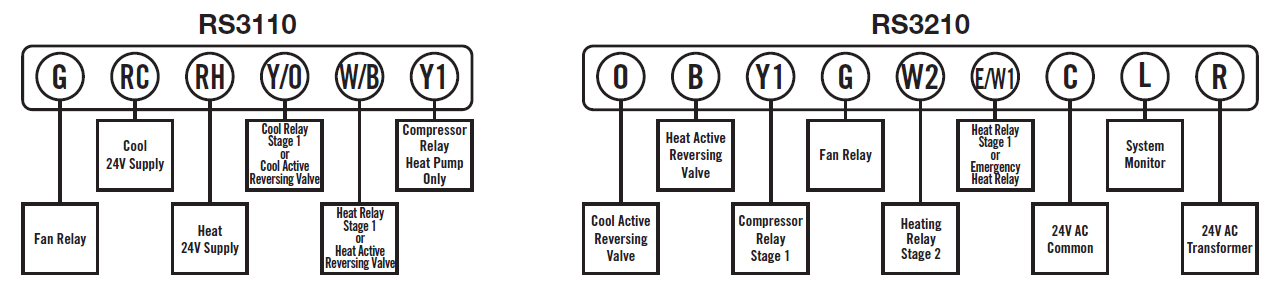

Terminal Designations

Robertshaw-RS31105 - 2 Day-Programmable-FIG-1

Technical Specifications

  • Product Weight 11.2 oz.
  • Electrical Rating 24V AC (18-30V AC)
  • 1 amp maximum load per terminal
  • 3 amp total maximum load (all terminals combined)
  • Temp. Control Range 45°F to 95°F (7°C to 35°C)
  • Accuracy ± 1°F (± 0.5°C)
  • Power RS3110 – 3.0V DC (2 AA alkaline batteries included)
  • RS3210 – 24V AC with battery back-up
  • (2 AA alkaline batteries included)
  • System Configurations RS3110 – Single-stage electric, gas, oil or
  • millivolt heating or heating/cooling
  • systems including single-stage heat pump systems
  • RS3210 – Multi-stage electric, gas or oil
  • heating or heating/cooling systems
  • including multi-stage heat pump systems
  • Terminations RS3110 – G, RC, RH, Y/O, W/B, Y1
  • RS3210 – O, B, Y1, G, W2, E/W1, C, L, R

Replacement Chart

RS3110
Robertshaw® 8600, 8601
Braeburn® 2000, 2010, 2000NC
Lux TX500, TX500E
Honeywell TH2110D
White-Rodgers 1F78-151
RS3210
Robertshaw® 8625
Braeburn® 2100, 2110, 2200
Lux HP2110
Honeywell TH2210D, TH4210D, T8001C, T8001F, T8011F
White-Rodgers 1F72-151

Verify specific application requirements before substitution.

Shipping Specifications

  • Individual Carton Dimensions 8” x 1.4” x 4.5”
  • Master Carton Quantity 6
  • Master Carton Dimensions 8.46” x 8.07” x 5.71”
  • Master Carton Weight 4.4 lbs.

191 E. North Avenue
Carol Stream Illinois 60188 USA
Customer Service Telephone 1.800.304.6563 Customer Service Facsimile 1.800.426.0804 [email protected]

For Technical Service
Telephone 1.800.445.8299
Facsimile 1.630.260.7294 [email protected]

Invensys™, Robertshaw®, and Simply the Right Choice™ are trademarks of Invensys plc., its subsidiaries, and/or affiliated companies. All other brands mentioned may be the trademarks of their respective owners.www.RobertshawTstats.com www.InvensysControls.com ©2009 Invensys Controls 10/09 – 150-2082C
