Robertshaw 9851i Programable THERMOSTAT

Affordable Comfort Control

The Robertshaw® RS3000 thermostat family is Simply The Right Choice™ when it comes to programmable temperature control that can help reduce energy costs up to 25%. With the comfort, convenience, and efficiency features that homeowners and contractors want, the RS3000 family provides custom program options in value-packed thermostats for an economical price.

• Simple touch button controls to set weekly programs for summer and winter.
•  Automated temperature settings for increased heating/cooling comfort.
•  Worry-free memory retention to maintain temperature settings even during power outages.

All RS3000 thermostats are fully compatible with all standard 24V AC heating and cooling systems. The RS3210 offers additional compatibility with single and multi-stage gas/electric furnaces and heat pump systems. Add in easy installation, expert technical service, and quality you can depend on, and you have the Robertshaw RS3000 thermostat family – Simply The Right Choice.

Features and Benefits

• 5 – 2 Day Programming
  • Set the weekly program once with four time and temperature settings. The four set points are followed for five consecutive days. On the weekend, four different set points can be set for all day comfort.
• Multi-Stage 2 Heat / 1 Cool – RS3210 only
  • Operates on both multi-stage gas/electric furnaces and heat pumps to reduce inventory needed.
• New Improved Display
  • Makes viewing and setting the temperature easier.
• Adjustable Temperature Differential
  • Maintains optimal customer comfort.
• Worry-Free Memory Retention – RS3210 only
  • Maintains programmed parameters, even during power outages.
• Filter Monitor
  • Provides notice when filters need changing.
• Automatic Compressor Short Cycle Protection
  • Reduces wear and tear of HVAC equipment with this system safeguard.
• Temporary Program Override
  • Allows for manual temperature adjustment.
• Quick Wire Terminal Block
  • Uses sturdy wire clamps – no wrap-around of screws for fast and easy installation.

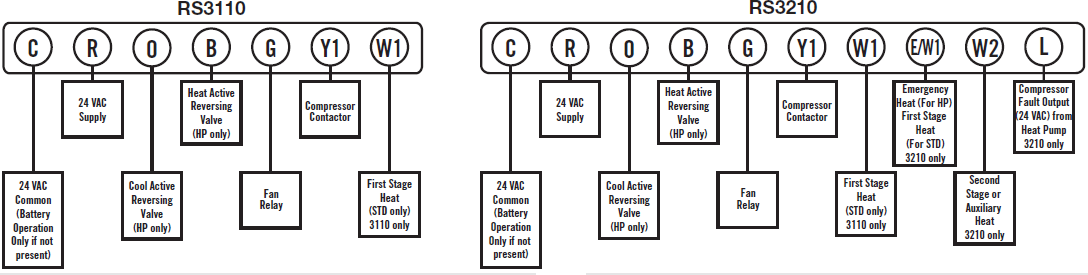

Terminal Designations

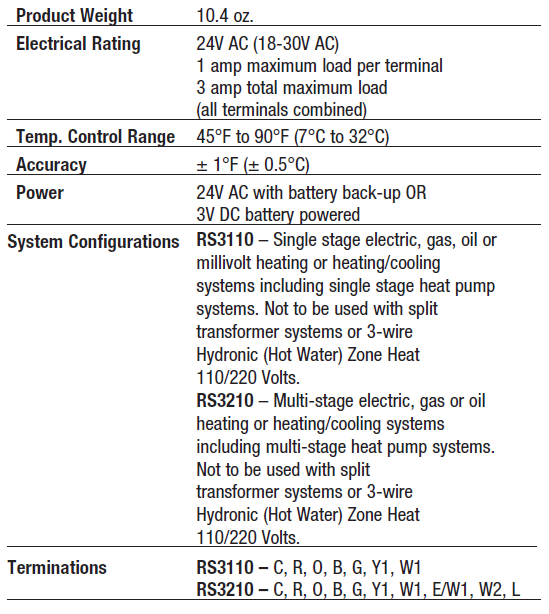

Technical Specifications

Replacement Chart

Shipping Specifications

• Individual Carton Dimensions 6.75” x 4.375” x 1.625”
• Master Carton Quantity 6
• Master Carton Dimensions 9.25” x 5.625” x 7.625”
• Master Carton Weight 5 lbs.
• Pallet Quantity 1170
• Pallet Dimensions 40” x 48” x 48

Robertshaw

Robertshaw® is a trademark of Robertshaw, its subsidiaries and/or affiliated companies. All other brands mentioned may be the trademarks of their respective owners

• www.robertshaw.com
• ©2020 Robertshaw
• 02/20 – 150-2090 Rev F

Customer Service

• (Americas) +1.800.304.6563
• Customer Service Facsimile +1.800.426.0804
• [email protected]

For Technical Service

• Telephone +1.800.445.8299
• [email protected]
