Robertshaw 9715i PROGRAMMABLE THERMOSTAT Instruction Manual

Robertshaw 9715i PROGRAMMABLE THERMOSTAT

Programming Made Easy

Did you know that 70% of people who own a programmable thermostat don’t know how to use them?*
We listened. Finally, a programmable thermostat that’s easy to program. Similar to a common cell phone, this menu-driven programming style is so easy, you don’t even need a manual. Since programming is a breeze, your customers will really appreciate energy-saving features like adjustable minimum and maximum temperature controls and Energy Efficient Recovery.TM The 9715i is compatible with all standard 24 Volt AC heating and cooling systems, up to two-stage heat and two-stage cool. We took the guesswork out and put simplicity in. Its programming made easy

Features and Benefits

• Bilingual Display Option
  • Set to your customer’s unique lifestyle and language– English, Spanish or French.
• Convenient Displays
  • View a full day of programming at once for quick review or easy adjustment.
• Conversational Menus
  • Take programming step by step in plain, easy-to-understand language.
• Contractor ID Feature
  • Set your name and phone number to remind customers when service is needed.
• Worry-Free Memory Storage
  • Even during power outages, the thermostat maintains setpoints and programmed parameters.
• Fully Programmable
  • 7-day, 5/2, 5/1/1, or 24-hour programming menus.
• Adjustable Events Per Day
  • 2, 4, or 6 events per day for greater control of your customer’s comfort
• Adjustable Timed Upstaging
  • Helps maintain optimal temperature or energy savings.
• Adjustable 1st and 2nd Stage Differential
  • Maintains optimal customer comfort.
• Remote Indoor and Outdoor Sensor Capable
  • For greater control of indoor comfort and system efficiency.
• EERTM (Energy Efficient Recovery)
  • Increases energy savings. EERTM allows gradual recovery from setback temperature to minimize use of auxiliary systems.
• Programmable Fan
  • Energy cost savings Allows users to set and provide continuous circulation for optimal comfort.
• Intermittent Fan
  • For minimum hourly fan circulation rates for optimal filtration with minimal energy use

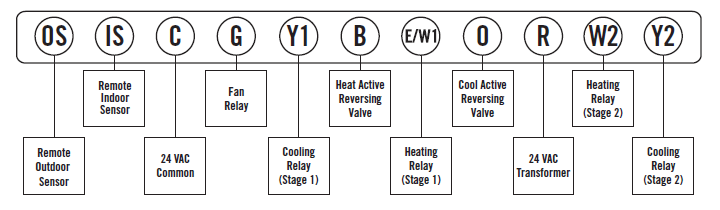

Terminal Designations

Shipping Information

• Indiv. Ctn. Dim.: 6.625″ x 4.25″ x 1.625″
• Master Ctn. Qty.: 6
• Master Ctn. Dim.: 9.25″ x 5.625 x 7.5″
• Master Ctn. Cu. Ft.: .23
• Master Ctn. Wt.: 3.5 lbs.
• Max. Pallet Qty.: 1260
• Max. Pallet Wt.: 785 lbs.

Item 9020i and 9025i Remote Sensors

• Indiv. Ctn. Dim.: 2.625″ x 1.5625″ x 4.4375″
• Master Ctn. Qty.: 6
• Master Ctn. Dim.: 5.625″ x 5.125″ x 5.125″
• Master Ctn. Cu. Ft.: .09
• Master Ctn. Wt.: .78 lbs.

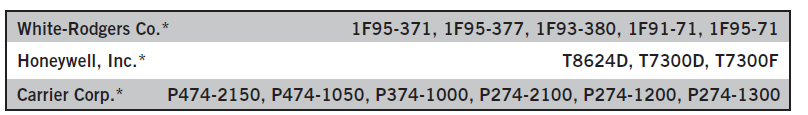

THE ROBERTSHAW REPLACES

Specifications

• Electrical rating: 24 Volt AC (18-30 VAC)
• 1 amp maximum load per terminal (relay outputs)
• 4 amp total maximum load (all terminals combined)
• Temperature control range: 45°- 90°F (7°- 32°C)
• Accuracy: +/-1.0°F (+/-0.5°C)
• Power Source: 24 VAC
• Auto Changeover deadband: Selectable 2° to 8°F
• Temporary temperature override: 3-hour maximum or next setpoint
• A remote sensor capable: 1 indoor and 1 outdoor sensor
• System configurations: Multi-stage gas, oil, or electric
• heating/cooling systems
• Terminations: R, W1, W2, Y1, Y2, B, O, G, C, IS, OS

Other Multi-Stage Heat / Cool Thermostats

• 9615: Programmable, 7 Day
• 9415: Non-Programmable

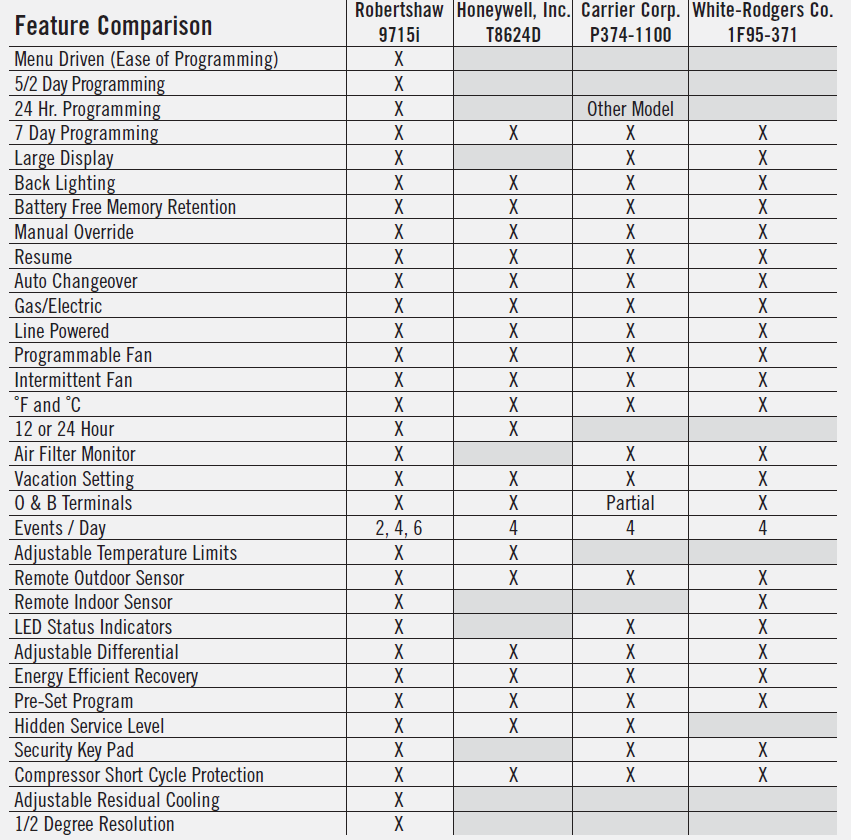

Feature

Robertshaw

• Climate Controls Americas
• 515 South Promenade Avenue
• Corona California 92879-1736 USA
• Telephone +1 800 304 6563 Facsimile +1 800 426 0804
• Outside the USA +1 630 260 3402
• Patents Pending www.about-i-series.com
• ©2003 Climate Controls Americas 8/03 – #150-1655E
