Specification

  • Power source: 1.5V LR6*AA
  • Temperature setting range: 5~35°C
  • Display accuracy: 0.1°C
  • Setting accuracy: 0.5°C
  • Storage temperature: -10~60°C, 0~90%RH
  • Ambient temperature: 0~50°C, 0~80%RH
  • Wireless frequency: Lora 868MHz

Note:
For connecting to the internet you must use the Reliance Valves Gateway – GWAY100001Reliance TIME100001 Wireless Programmable Thermostat  1

Important safety information

  • Read all of the information in this manual before installing this thermostat.
  • Only a professional contractor should install this thermostat.
  • All wiring must conform to local and national building and electrical codes and regulations.
  • If the system is not operating properly, check the wiring and replace the fuse if necessary.
  • Use this thermostat only as described in this manual.

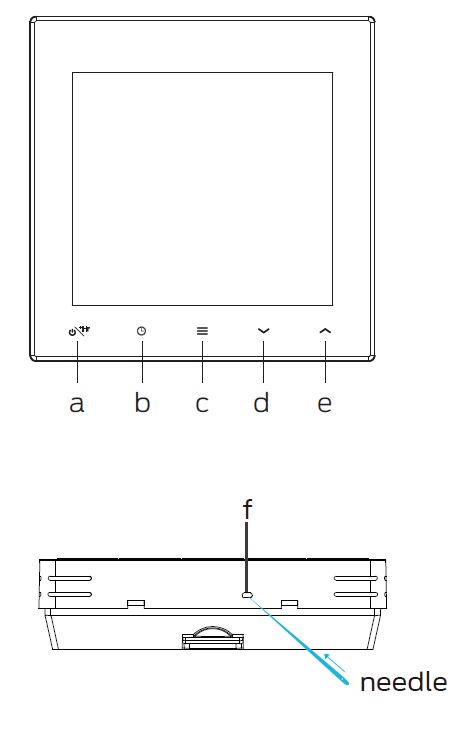

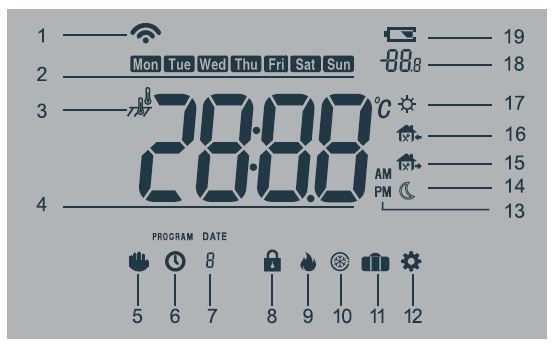

Thermostat display

  • Reliance TIME100001 Wireless Programmable Thermostat  2ON/OFF/Boost
  • Reliance TIME100001 Wireless Programmable Thermostat  3Time setting
  • Reliance TIME100001 Wireless Programmable Thermostat - 4Menu button
  • Reliance TIME100001 Wireless Programmable Thermostat -5Lower temperature setting
  • Reliance TIME100001 Wireless Programmable Thermostat -6Raise temperature setting
  • ResetReliance TIME100001 Wireless Programmable Thermostat -7
  1. If the iconReliance TIME100001 Wireless Programmable Thermostat -8 is not shown then WiFi is not connected
    • If the signal is lost after connection the icon will flash
  2. Weeks icon
  3. Mode: Room mode, floor mode, dual temperature mode
  4. Room temperature/time display
  5. Manual mode
  6. Programming mode
  7. Zone number – If flashing then the connection to the wiring centre has been lost
  8. Key lock
  9. Boiler On/Off
  10. Frost protection
  11. Holiday mode
  12. Settings menu
  13. AM/PM
  14. Sleep mode
  15. Away mode
  16. Back home mode
  17. Wake up
  18. Temperature setting/Boost display
  19. Low power alarm

Reliance TIME100001 Wireless Programmable Thermostat -9

ON/OFF function
Press Reliance TIME100001 Wireless Programmable Thermostat  2 to turn the thermostat ON. Press and holdReliance TIME100001 Wireless Programmable Thermostat  2again to turn the thermostat OFF.

Key lock function
In the main display interface, press and hold Reliance TIME100001 Wireless Programmable Thermostat -11 at the same time to activate or cancel the key lock. When activated, no keys can be used. The thermostat will display Reliance TIME100001 Wireless Programmable Thermostat -10

Boost function

  • Press Reliance TIME100001 Wireless Programmable Thermostat  2to switch the setting temperature or boost control.
  • When the display shows +0, press Reliance TIME100001 Wireless Programmable Thermostat -11to select boost. The length of time the heating will be boosted is displayed.
  • When the time elapses the screen returns to the temperature display.
  • Press Reliance TIME100001 Wireless Programmable Thermostat  2 to cancel and go back to the temperature display setting

Holiday mode
With the power on, press Reliance TIME100001 Wireless Programmable Thermostat - 4 to switch between manual mode, programming mode and holiday mode. After selected holiday modeReliance TIME100001 Wireless Programmable Thermostat -13 will display and will run at 16°C. Press Reliance TIME100001 Wireless Programmable Thermostat - 4to cancel holiday mode. Boost function can be used during holiday period

Open window function
If the room temperature drops 6°C in 4 minutes, the open window function will activate and display Reliance TIME100001 Wireless Programmable Thermostat -14, then turn down all heating. When the room temperature increases by 2°C the thermostat will return to normal operation. Press any button to cancel the open window function while it is active.

Anti-seize function
If the thermostat has not been activated for over 1 week then to prevent the valve and pump from seizing, the thermostat will run the system for 5 minutes.

Frost protection
In frost protection mode, when the temperature drops below what has been selected, the thermostat will start the heating until the temperature has been raised by 3°C.

Intelligent function
The intelligent function adjusts the starting time for home heating according to the temperature measured within the building. It preheats your rooms to the temperature according to your schedule.

Time setting

Press and holdReliance TIME100001 Wireless Programmable Thermostat -15for 4 seconds, press Reliance TIME100001 Wireless Programmable Thermostat -15to select year, month, day, time scale, time, press Reliance TIME100001 Wireless Programmable Thermostat -11 to adjust setting, press Reliance TIME100001 Wireless Programmable Thermostat -15to confirm. If there are no actions for 10 seconds, the thermostat will return to temperature display mode. PressReliance TIME100001 Wireless Programmable Thermostat -15 to check time, year, month, day.

Setting the date and time on initial start up

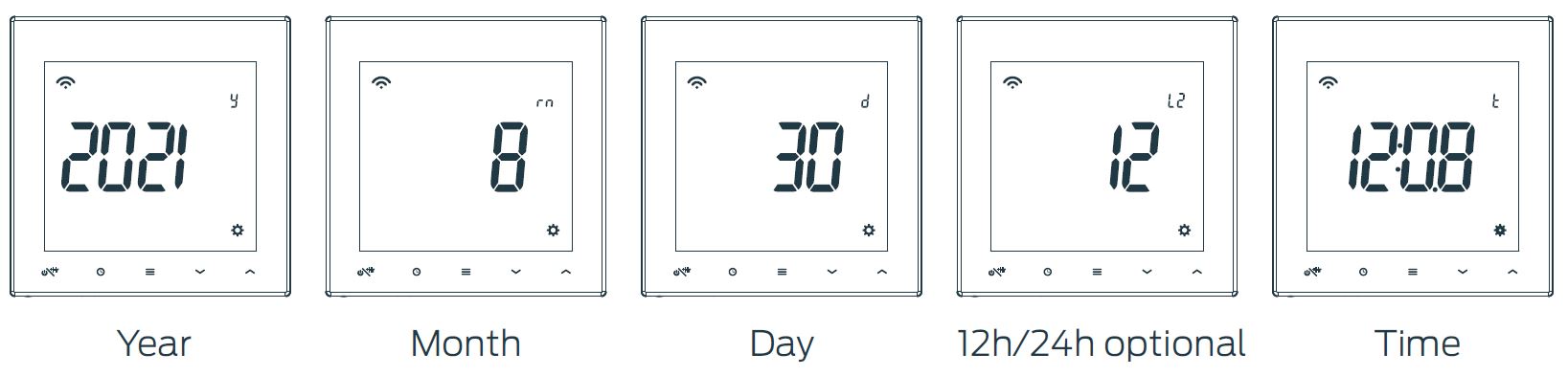

Plug in the power supply. Press Reliance TIME100001 Wireless Programmable Thermostat -11to set year, press Reliance TIME100001 Wireless Programmable Thermostat -15 to set month, day, time scale, time, press Reliance TIME100001 Wireless Programmable Thermostat -11to adjust the setting.

Reliance TIME100001 Wireless Programmable Thermostat -16

Program setting

  • Programme settings: 4/6 period programming optional (factory default: 6 period).
  • When the thermostat is on, press and hold ‘ ’ to enter the programming mode.
  • Press Reliance TIME100001 Wireless Programmable Thermostat -11to select the programming week (5+2, 5+1+1 or 7 individual day optional).
  • Press Reliance TIME100001 Wireless Programmable Thermostat - 4 to enter time setting mode. Press Reliance TIME100001 Wireless Programmable Thermostat -11 to select time, press Reliance TIME100001 Wireless Programmable Thermostat - 4 to enter temperature setting mode, Press Reliance TIME100001 Wireless Programmable Thermostat -11 to select temperature.
  • Press Reliance TIME100001 Wireless Programmable Thermostat - 4 to save and exit. If no buttons are pushed for 10 seconds, the thermostat will exit the programme setting automatically

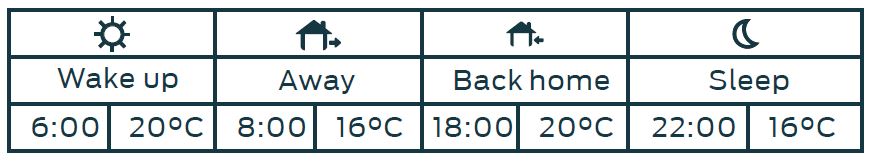

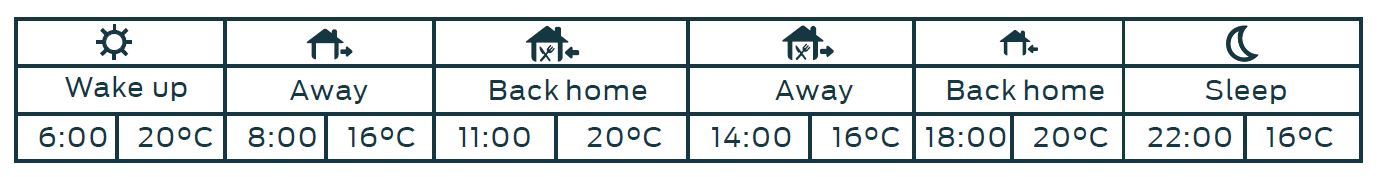

Default programming (6 period programming)Reliance TIME100001 Wireless Programmable Thermostat -17

(4 period programming)

Reliance TIME100001 Wireless Programmable Thermostat -18

Operation mode

Programming mode (The factory default is programmable)
The thermostat will run according to the pre-set schedule. The screen will show Reliance TIME100001 Wireless Programmable Thermostat -15

Manual mode
From programming operation mode, press Reliance TIME100001 Wireless Programmable Thermostat - 4 to enter the manual mode, the screen will display Reliance TIME100001 Wireless Programmable Thermostat -19. PressReliance TIME100001 Wireless Programmable Thermostat -11 to immediately adjust the temperature and save automatically.

Temporary hold mode
The thermostat will keep the room at the temporary set temperature, and will resume the programme operation mode when you enter the next programme. In programming operation mode, pressReliance TIME100001 Wireless Programmable Thermostat -11 to enter the temporary hold mode, the screen display Reliance TIME100001 Wireless Programmable Thermostat -20. Press Reliance TIME100001 Wireless Programmable Thermostat -11 to immediately adjust the temperature and save automatically

Alarm instructionsReliance TIME100001 Wireless Programmable Thermostat -26

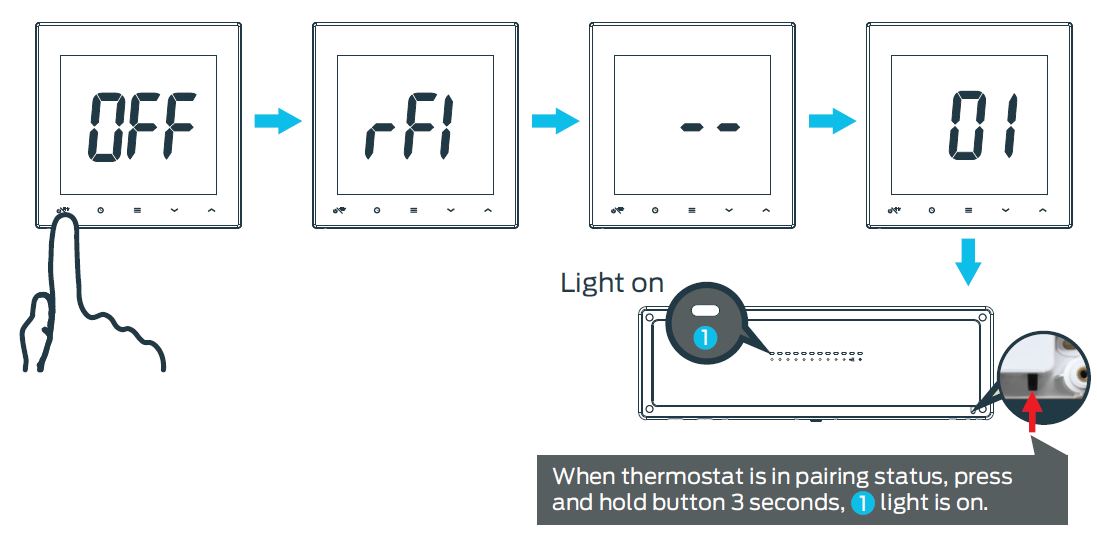

Pairing

  • With the thermostat power off, press and hold the on/off button for 4 seconds to enter pairing mode (display should show “ rF1”).
  • Press the on/off button again to send a signal to the wiring centre (display should show “ ”)
  • On the Wiring Centre, press and hold the pairing button for 3 seconds to enter pairing mode
  • Use the Wiring Centre pairing button to select the desired zone, indicated by the LED
  • Leave the wiring centre for 3 seconds. The LED should flash to indicate it is pairing to the thermostat
  • Once paired, the wiring centre LED will move to the next available zone.
  • Press and hold the pairing button once again to exit the pairing mode
  • The thermostat is now connected to the chosen zone

Reliance TIME100001 Wireless Programmable Thermostat -22

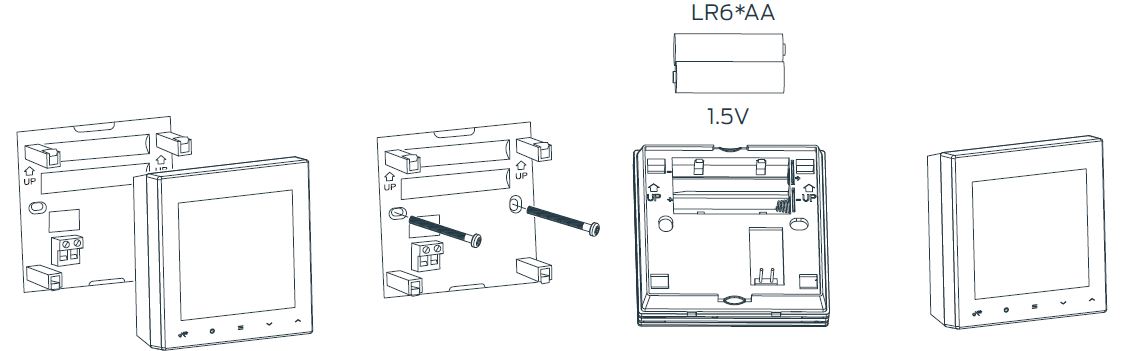

Installation

  • Separate the front and back parts of the thermostat
  • Attach the backplate to the wall with suitable fixings
  • Insert the batteries
  • Clip the front part to the backplateReliance TIME100001 Wireless Programmable Thermostat -23

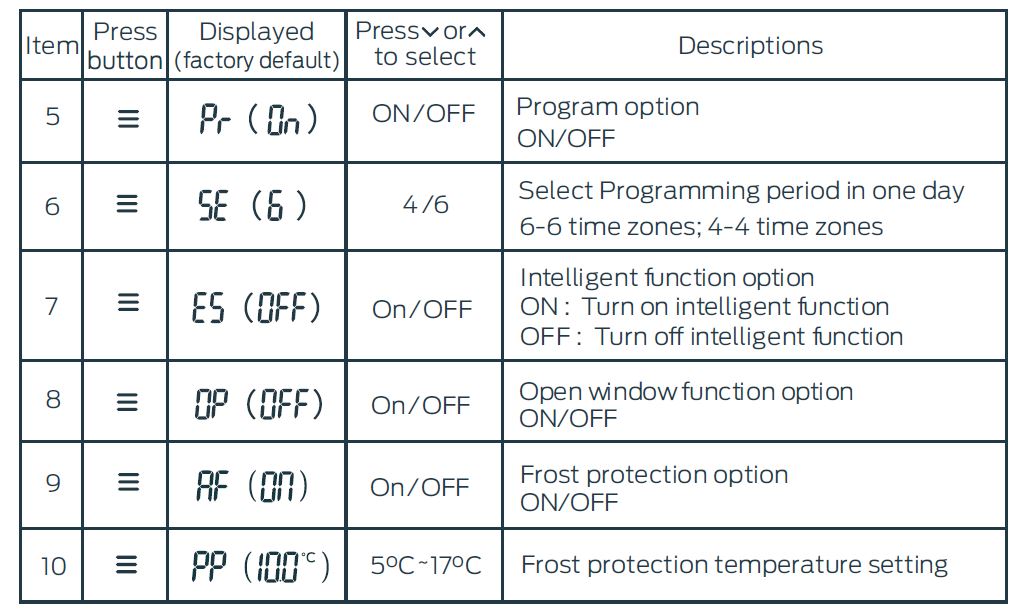

Configuration menu

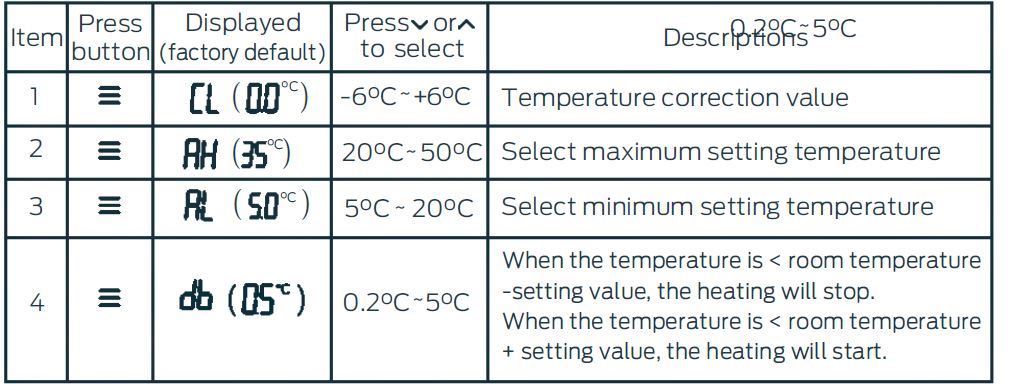

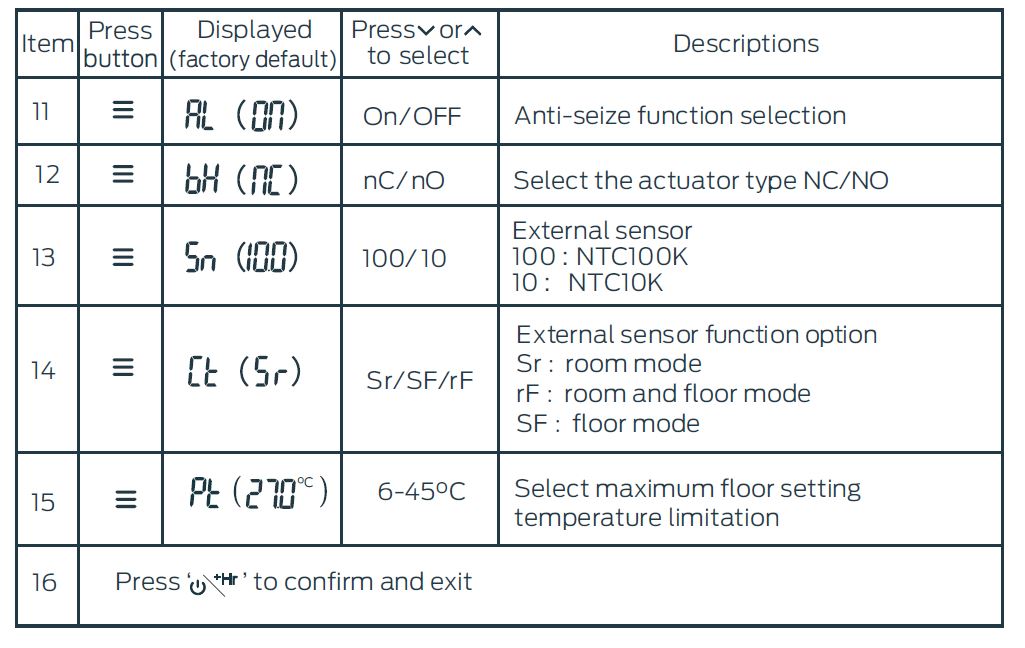

With the thermostat turned off, press and hold ‘= ‘to enter the configuration menu. Press ‘=’ to select different parameters. PressReliance TIME100001 Wireless Programmable Thermostat -11to adjust parameters. Press and hold ‘ Reliance TIME100001 Wireless Programmable Thermostat - 4’ for 3 seconds, display ‘Reliance TIME100001 Wireless Programmable Thermostat - 4 ’, indicates all the configuration settings have reverted to factory default setting. The thermostat will return to ‘OFF ’ mode if no buttons are pushed within 10 seconds.

Reliance TIME100001 Wireless Programmable Thermostat -26

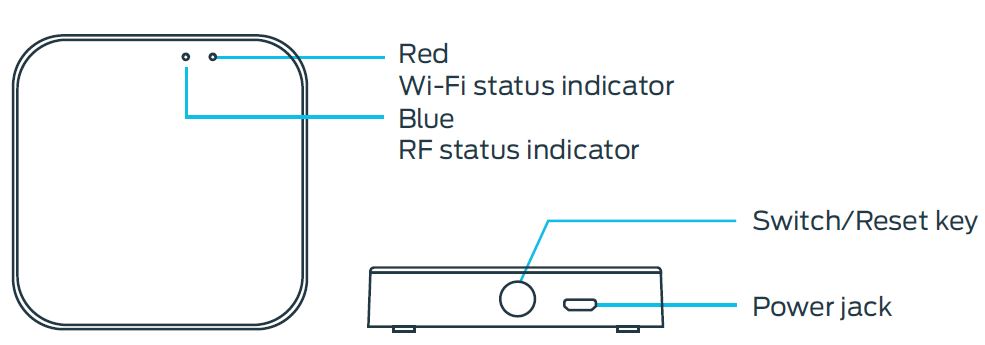

Gateway specification

  • Adapter output: 5V— 1A
  • Working temperature: -10°C~55°C
  • Working humidity: 10%-90%(no condensation)
  • Wifi frequency: 2.4G Wi-Fi
  • Wireless frequency: Lora 868MHz
  • Dimensions: 60.5 × 60.5 × 16.1mm

Reliance TIME100001 Wireless Programmable Thermostat -29

Connecting the AppReliance TIME100001 Wireless Programmable Thermostat -27 Reliance TIME100001 Wireless Programmable Thermostat -28

Download and register

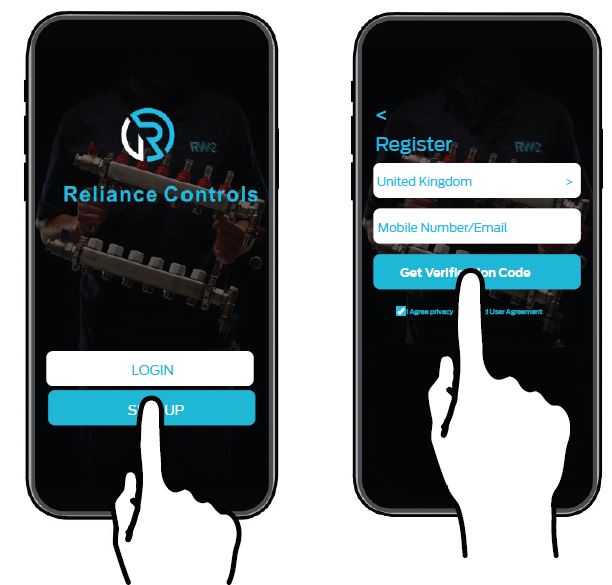

Click App store (click Android application market) Search for ‘Reliance Controls’ and downloadReliance TIME100001 Wireless Programmable Thermostat -30

Login

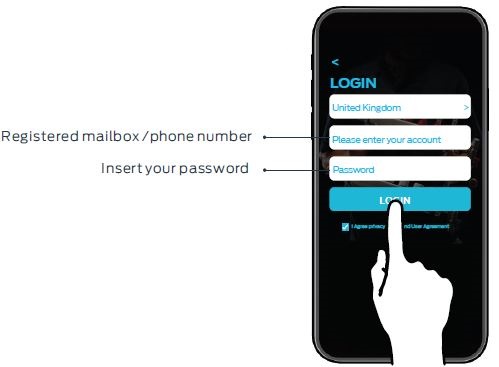

When you finish the registration, log into your email and click on the link to activate your account. Your APP is now ready to use.

Reliance TIME100001 Wireless Programmable Thermostat -31

Connecting to the Gateway

Tips: First, please turn on the location of your phone. Press and hold the reset key of gateway until the light turns red and blinksReliance TIME100001 Wireless Programmable Thermostat -32

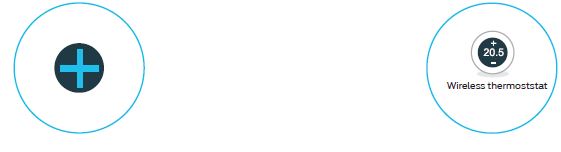

  • Enter the ‘HOME’ interface of the app, click the ‘ Reliance TIME100001 Wireless Programmable Thermostat -33’ on the top right.
  • Click ‘Wireless thermostat’.Reliance TIME100001 Wireless Programmable Thermostat -34

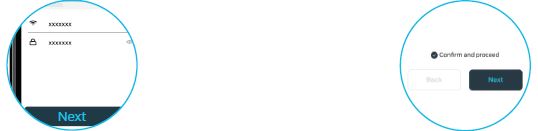

  • Enter your Wi-Fi account and password. Click ‘Next’
  • Tick ‘Confirm and proceed’,then click ‘Next’ (Follow instruction to reset device)Reliance TIME100001 Wireless Programmable Thermostat -35

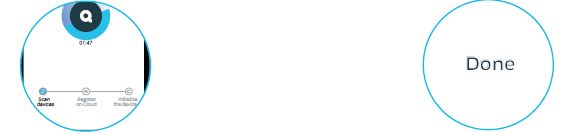

  • Adding device…
  • Click ‘Done’, it means the gateway has been added successfullyReliance TIME100001 Wireless Programmable Thermostat -36

Add thermostat

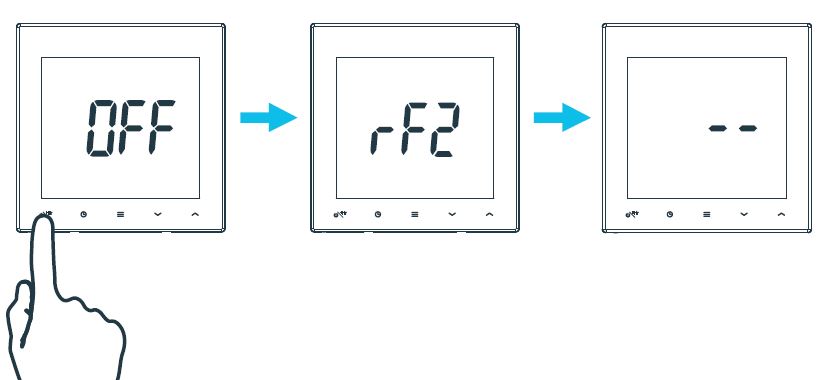

Before adding the thermostat, press and hold ‘Reliance TIME100001 Wireless Programmable Thermostat  2 ’ for 3 seconds, press Reliance TIME100001 Wireless Programmable Thermostat -5 Reliance TIME100001 Wireless Programmable Thermostat -6 to select ‘rF2 ’, then press ‘ Reliance TIME100001 Wireless Programmable Thermostat  2’ to enter code match status and it will display ‘Reliance TIME100001 Wireless Programmable Thermostat -37 ’ then then follow these steps to connect the app.Reliance TIME100001 Wireless Programmable Thermostat -38

  • Click ‘Reliance TIME100001 Wireless Programmable Thermostat -33 ’Add subdevice
  • Adding device
  • Added successfully Click ‘Done’.Reliance TIME100001 Wireless Programmable Thermostat -39

Reliance TIME100001 Wireless Programmable Thermostat -40

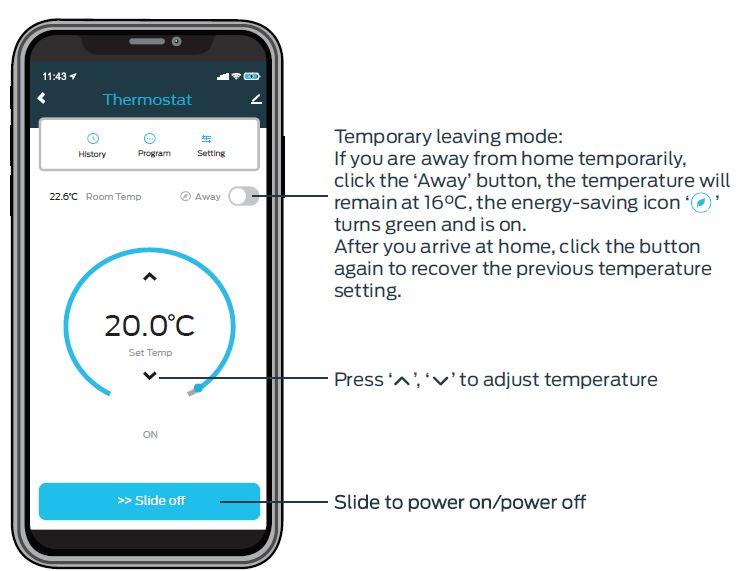

APP Setting-programmingReliance TIME100001 Wireless Programmable Thermostat -41

APP Setting-Multi-day Programming

  • Click the ‘Program’ to enter the programming mode
  • Slide up and down to select the time, press ‘ ’ ‘ ’ to set the temperature in different
  • Click ‘Submit’ to confirm

Reliance TIME100001 Wireless Programmable Thermostat -42

Optional Parameter SettingReliance TIME100001 Wireless Programmable Thermostat -43

Remove devicesReliance TIME100001 Wireless Programmable Thermostat -44

Voice command

Amazon Alexa

  • Alexa, turn on bedroom.
  • Alexa, raise the bedroom by 1 degree.
  • Alexa, drop the bedroom by 1 degree.
  • Alexa, set the bedroom to 16 degrees.

Google Assistant

  • Ok, Google, turn on bedroom.
  • Ok, Google, turn oF bedroom.
  • Ok, Google, set the bedroom to 16 degrees

Reliance Worldwide

  • Corporation (UK) Limited
  • Horton Road
  • West Drayton
  • UB7 8JL
  • United Kingdom
  • Tel: +44 (0) 1895 449233
  • Reliance Worldwide Corporation
  • (UK) Limited reserves the right to make changes to the product which may aBect the accuracy of information contained in this leaflet
  • www.reliancevalves.com
