Reliance STAT100015 240V Wired and RF Programmable Thermostat Product Specifications Guide

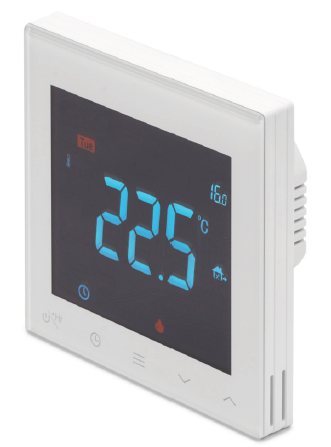

Reliance STAT100015 240V Wired and RF Programmable Thermostat

Overview

Reliance Valves UFH Controls 240v wired programmable thermostat is a stylish and simple way to control wet underfloor heating systems. Easily mounted on the wall, the thermostat signals the Reliance Valves UFH Controls wiring center to provide heat to an individual room. Its user-friendly interface makes adjusting and programming temperatures fast and simple. Ideal for new builds and renovations, the back plate is fitted before decorating begins and the front plate is installed once work is completed to avoid any damage. Designed to suit a standard pattress box, the thermostat is also ideal when replacing an existing thermostat. When used with the Reliance Valves UFH Controls app, underfloor heating can be remotely controlled on the go.

Features

• 7 days programmable, 15-minute increments, 6 on/off times give maximum user control and flexibility
• Inbuilt ambient temperature sensor and further connections for an optional external temperature probe to protect against excessive floor temperatures.
• Key lock feature to protect against vandalism and unwanted program changes.
• An open window function can be selected to stop the boiler from firing during short-term temperature drops.
• The adaptive function can be selected so the thermostat predicts heat-up time and adjusts the programming to smooth out any potential temperature spikes.
• Freeze protection function, adjustable between 5C-17C to save energy in unused rooms.
• The heating boost function allows 1-9 hours of boost heating in case of low temperatures in between programming times.
• Holiday mode can be used to maintain low-level heating when the home is unoccupied.
• The anti-seize function automatically exercises the underfloor heating pump to prevent it from seizing during low usage in the summer months.
• Connection to the Reliance Valves app is possible which gives mobile access to system information and settings – so the user can operate and monitor the system remotely from any location.
• The system is compatible for use with Alexa or Google Home voice control
• Meets the requirements of Boiler Plus

Product Code Description

• STAT100010 Reliance Valves 240v Wired Programmable Thermostat – White
• STAT100011 Reliance Valves 240v Wired Programmable Thermostat – Black

240v Wired Programmable Room Thermostat

Applications

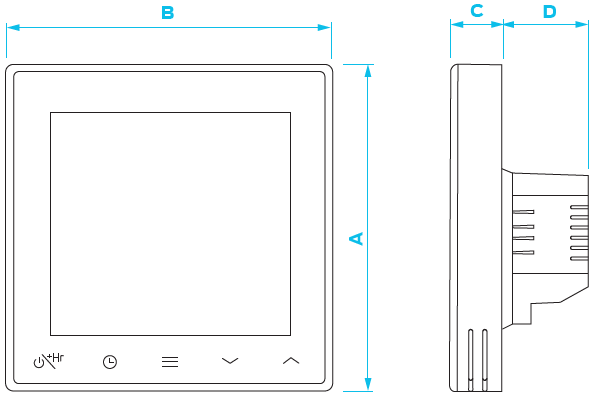

Dimensions – All measurements in mm unless otherwise stated

Product code

Reference
