Prostat PRS4110 Universal Programmable Thermostat Product Specifications Guide

PROSTAT-LOGO

Prostat PRS4110 Universal Programmable Thermostat

Prostat- PRS4110 -Universal -Programmable -Thermostat - PRO

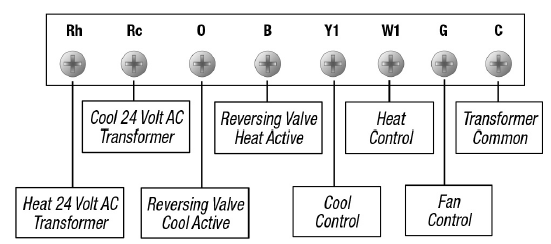

Terminal Designations

Prostat- PRS4110 -Universal -Programmable -Thermostat - 1

Product Features

  • 7 Day, 5-2 Day or Non-Programmable
  • Large 2 sq. in. display with bright blue backlight
  • Adjustable temperature limits
  •  Hardwire or battery powered
  • Permanent memory retains settings
  • Filter check monitor
  • Adjustable temperature differential
  • Adaptive Recovery Mode (ARM )
  • ESD Guard electronic circuitry
  • Compressor short cycle protection
  • Temporary program override
  • Programmable extended hold mode
  • Front access reset button
  • F° / C° switch
  • ROHS Compliant

Architectural Specifications

The digital programmable thermostat shall be a PROSTAT model number PRS4110, 3.62” high x 4.72” wide x 1.38” deep, powered independently with either 24 Volt AC or with two “AA” alkaline batteries (3.0 Volt DC). The thermostat shall be compatible with single stage gas, oil or electric heating or cooling systems including single stage heat pumps and 250mv – 750mv millivolt heating systems. The thermostat shall have a bright blue backlight display and separate sub-base for trouble free installation. Temperature control range shall be between 45° and 90° F (7° and 32° C), accuracy of +/-1° F (+/- .5° C), humidity range between 5% and 95% relative humidity. The thermostat shall include non-volatile memory to retain user settings, adjustable temperature limits, filter check monitor, adaptive recovery mode (ARM™) and separate heating and cooling set point program times and temperatures. Thermostat shall have low battery indication and a front reset button will return all user and program settings to default values when pressed. The thermostat can be mounted to a horizontal junction box

Product Specifications

Dimensions: 3.62” x 4.72” x 1.38”


Electric Rating:

24 Volt AC (18-30 Volt AC)

1 amp maximum load per terminal

3 amp total maximum load (all terminals)

AC Power: 18-30 Volt AC
DC Power: 3.0 Volts DC

(2 “AA” Alkaline batteries included)



Compatibility:

Single stage gas, oil or electric systems Single stage heat pump systems

250mv – 750mv millivolt heating systems

Control Range: 45° to 90° F (7° to 32° C)
Display Range: 40° to 99° F (5° to 37° C)
Accuracy: +/- 1° F (+/- .5° C)
Temperature Differential: .5°, 1°, or 2° F (0.2°, 0.5°, or 1° C)
Storage Temperature: 14° to 140° F (-10° to 60° C)
Operating Humidity: 5% to 95% Relative Humidity
Terminations: Rc, Rh, O, B, Y1, W1, G, C

Shipping Information

 Individual Carton
Dimensions: 3.8” x 5.8” x 1.6”
Weight: .70 lbs.
 Master Carton
Quantity: 12
Dimensions: 11” x 11.7” x 4.3”
Cubic Feet: .32
Weight: 9.2 lbs.

Prostat PRS4110 Replaces

 Brand                                           Model
Honeywell® TH2110, TH4110
Emerson® 1F78-151, 1E78-151
Pro1® T605-2, T705
*Verify specific application requirements. All trademarks are the property of their respective owners.

Prostat

Goodman Manufacturing Company, L.P., reserves the right to discontinue or change at any time, specifications or designs without notice or without incurring obligations.

  • ©2018 Goodman Manufacturing Company, L.P.
  • Houston, Texas
  • Printed in the USA.
  • www.propartshvac.com
  • Technical Support: 1-855-445-2466
