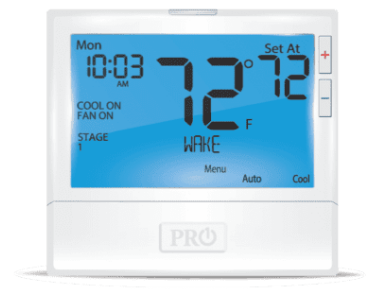

Pro1 Technologies T855SH Non-Programmable Thermostat
Universal – Light Commercial or Residential
Up to 2 Heat 3 Cool Conventional
Up to 5 Heat 3 Cool Heat Pump
Battery or Hardwire
7 Day – 5/1/1 Non-Programmable
This model features
- 16 Remote sensors capable
- 8 sq. inch display
- Blue backlight
- Glow in the dark light button
- Easy access battery compartment
- Two and four occupancy/un occupancy time periods are available
- Partial and full keypad lockout
- Adjustable setpoint limits
- Summer away mode
- Humidity and dehumidifying control
- 5-Year Warranty
- Set dual fuel balance points (requires R250S)
- Compatible with indoor remote sensors (R251S)
- Ventilation Control
- IAQ fan settings
- Advanced Pre-Occupancy Purge
- Auto Changeover
- Customizable staging logic
Specifications
- Application Up to 2 heat, 3 cool conventional / Up to 5 heat, 3 cool heat pump
- Programmability 7 day, 5-1-1 or Non-Programmable
- Changeover System Switch
- Display Range 41˚F to 95˚F (5˚C to 35˚C)
- Control Range 44˚F to 90˚F (7˚C to 32˚C)
- Display Accuracy +/- 1˚F
- Heat Swing Adjustable from 0.2˚F to 2.0˚F
- Cool Swing Adjustable from 0.2˚F to 2.0˚F
- Terminals Rc, Rh, G, Y, Y2, S1, S2,C ,O , B , W/E , W2
- Load Rating Power Source 1 amp per terminal, 1.5 amp maximum for all terminals combined
- Operating Ambient 18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire) Battery power from 2 AA Alkaline batteries 32˚F to +105˚F (0˚C to +41˚C)
- Operating Humidity 90% non-condensing maximum
- Mounting Wall or Junction Box
- Dimensions 4.7”W x 4.4”H x 1.1”D (119mm W x 112mm H x 28mm D)
- Warranty 5-year warranty
Wired Indoor Remote Sensor
- Compatible with T755S, T855S, T855SH and T955S
This model features
- Move the sensing location away from the thermostat
- Use up to 16 sensors for a system average
Specifications
- Operating Temperature 32˚F to 105˚F (0˚C to +41C)
- Operating Humidity 90% non-condensing maximum
- Dimensions of Sensor 1.5”W x 2.75”H x 0.75”D
- Resistance Range Up to 300 feet

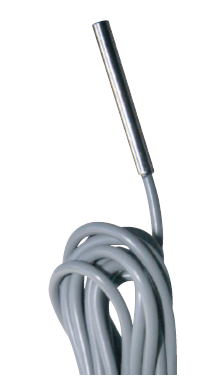

Wired Outdoor Or Slab Sensor
This model features:
- Set dual fuel balance points
- Displays outdoor temperature on the thermostat
- Selectable dual-fuel balance point
- Slab sensor for radiant heat
- Stainless steel weatherproof case
Specifications
- Temperature range -4°F to 140°F (-20°C to 60°C)
- Temperature accuracy +/- 1°F
- Transmission Constant resistance
