Pro1 Technologies T855S Non-Programmable Thermostat Product Specifications Guide

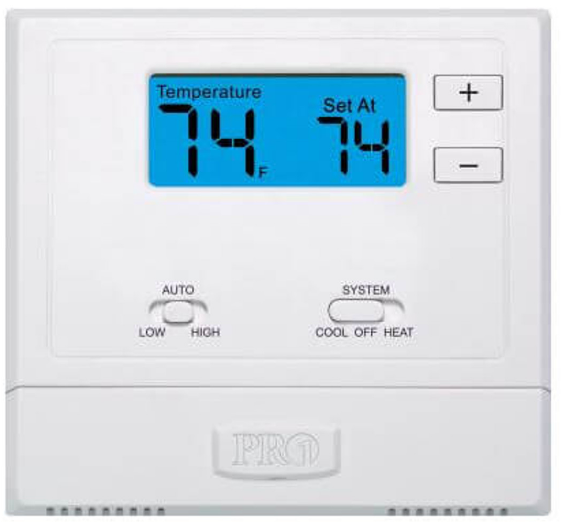

Pro1 Technologies T855S Non-Programmable Thermostat

This model features

• 2 sq. inch display
• Blue backlight
• Easy access battery compartment
• Universal sub base
• Simple private label badge system
• Electric or gas configurable
• Mounts on wall or junction box
• Setpoint Limits
• 5 Year Warranty
• 5-minute compressor delay protection (selectable on or of)
• Separate heating and cooling swing (cycle rate) adjustments
• battery or 24V power
• Room temperature calibration adjustments
• Easy wire color-coded terminal blocks

Specifications

• Application 1 Heat, 1 Cool Conventional / 2 Heat, 1 Cool Heat Pump
• Programmability 7 Day or 5/1/1/ Programmable
• Changeover  System Switch 41˚F to 95˚F (5˚C to 35˚C)
• Display Range 44˚F to 90˚F (7˚C to 32˚C)
• Control Range +/- 1˚F
• Display Accuracy Adjustable from 0.2˚F to 2.0˚F
• Heat Swing Adjustable from 0.2˚F to 2.0˚F
• Cool Swing R, C, Y, W2, W/E, G, O, B
• Terminals R, C, Y, W2, W/E, G, O, B
• Load Rating 1 amp per terminal, 1.5 amp maximum all terminals combined
• Power Source 18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire)  Battery power from 2 AA Alkaline batteries
• Operating Ambient 32˚F to +105˚F (0˚C to +41˚C)
• Operating Humidity  90% non-condensing maximum
• Mounting  Wall or Junction Box
• Dimensions 4.7”W x 4.4”H x 1.1”D (119mm W x 112mm H x 28mm D)
• Warranty 5-year warranty

Wired Indoor Remote Sensor

MODEL R251S

This model features

• Move the sensing location away from the thermostat
• Use up to 16 sensors for a system average

Specifications

• Operating Temperature 32˚F to 105˚F (0˚C to +41C)
• Operating Humidity 90% non-condensing maximum
• Dimensions of Sensor 1.5”W x 2.75”H x 0.75”D
• Resistance Range  Up to 300 feet

Wired Outdoor Or Slab Sensor

MODEL R250S

This model features

• Set dual fuel balance points
• Displays outdoor temperature on the thermostat
•  Selectable dual-fuel balance point
• Slab sensor for radiant heat
• Stainless steel weatherproof case

Specifications

• Temperature range -4˚F to 140˚F (-20˚C to 60˚C)
• Temperature accuracy +/- 1˚F
• Transmission Constant resistance
