Pro1 Technologies T771 Non-Programmable Thermostat Operational Manual

Pro1 Technologies T771 Non-Programmable Thermostat

Pro1 Technologies
P.O. Box 3377
Springfield, MO 65808-3377
Toll-Free: 888-776-1427
Web: www.pro1iaq.com
Hours of Operation: M-F 9 AM – 6 PM Eastern

Caution
Equipment damage hazard. Do not operate the cooling system if the outdoor temperature is below 50 ˚F (10 ˚C) to prevent possible compressor damage.

Thermostat Operation

1. LCD Display
2. Glow in the dark light button
3. Fan Switch
4. System Switch
5. Temperature Setpoint Buttons
6. Easy change battery door
   1. LCD Display
      See page 6 for details about this display readout.
   2. Glow in the dark light button
      The glow-in-the-dark light button will self-illuminate for several hours after exposure to ambient light. This button turns on the display light when pressed.
   3. Fan Switch
      Select ON or AUTO. ON will run the fan continuously. AUTO will cycle the fan on only when the heating or cooling system is on.
   4. System Switch
      Selects the operation mode of your HVAC system. Selecting ON turns on either the heating or cooling. Selecting OFF turns off heating or cooling. Your thermostat is configured for either heat
      or cool.
   5. Temperature Setpoint Buttons
      Press the + or – buttons to select the desired room temperature.
   6. Easy Change Battery Door See page 4 for details.

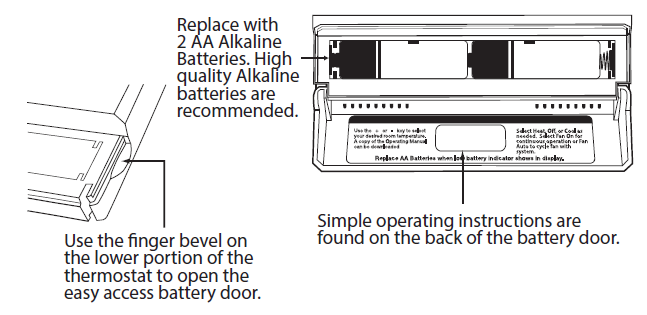

Battery Door Information

Caution: When the battery icon LOWon appears replace your AA batteries immediately. Failure to do so may result in your heating & cooling system becoming inoperable. Freezing or overheating can occur.

Important
The low battery icon is displayed when the AA battery power is low. Whenever the thermostat detects low battery voltage from the AA batteries, the low battery icon will begin flashing on the screen for 21 days (if the batteries are not changed). If the batteries are not changed 22 days after the thermostat detects low battery voltage, the thermostat screen will only show the flashing battery icon until buttons are pressed. If the batteries are not changed 43 days after the thermostat detects low battery voltage, the thermostat screen will only show the flashing battery icon until buttons are pressed and the set points will offset to 85°F/29°C in cooling and 55°F/13°C in heating. At this stage, set point changes can be made temporarily but, the set points will change back to defaulted values after a 4-hour period. The thermostat will continue to perform this low battery flashing, temperature offset condition until the internal voltage threshold is reached. When the thermostat’s internal voltage threshold is reached, all relays will be opened and the thermostat will become inoperable until new batteries are installed.

Warranty Information

Warranty Registration
Your new thermostat has a 5-year limited warranty. You must register your thermostat within 60 days of installation. Without this registration, the warranty period will begin on the date of manufacture. For warranty issues please contact the HVAC professional that installed this product. You can register your new thermostat in 2 ways:

Online
Go to the company website, select warranty registration, and fill out a short registration form.

Mail
Complete the form below and mail it to the address shown.

Warranty Registration

Thermostat Model:
Date Installed:
Complete the form and mail it to:
Thermostat Warranty Registration Pro1iaq
P.O. Box 3377
Springfield, MO 65808-3377 Cut Out For Warranty Registration www.pro1iaq.com
