Pro1 Technologies T751 Non-Programmable Thermostat Operational Manual

Pro1-Technologie-logo

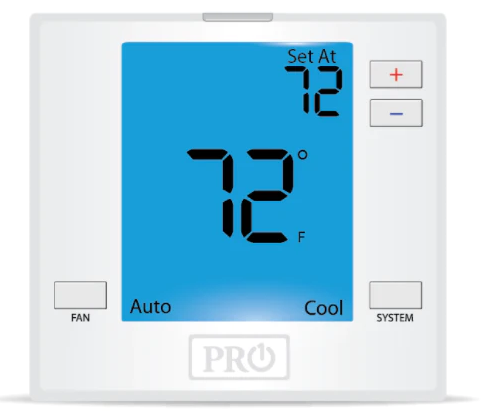

Pro1 Technologies T751 Non-Programmable Thermostat

Pro1-Technologies-T751-Non-Programmable-Thermostat-PRODUCT

Pro1 Technologies
P.O. Box 3377
Springfield, MO 65808-3377
Toll-Free: 888-776-1427
Web: www.pro1iaq.com
Hours of Operation: M-F 9 AM – 6 PM Eastern

Caution
Equipment damage hazard. Do not operate the cooling system if the outdoor temperature is below 50 ˚F (10 ˚C) to prevent possible compressor damage.

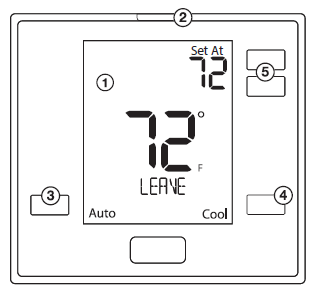

Thermostat Operation

Pro1-Technologies-T751-Non-Programmable-Thermostat-FIG-1

  1. LCD Display
    See page 6 for details about this display readout.
  2. Glow in the dark light button
    The glow-in-the-dark light button will self-illuminate for several hours after exposure to ambient light. This button turns on the display light when pressed.
  3. Fan Button
    The auto will cycle the fan on only when the heating or cooling system is on. ON will run the fan continuously. L, M, and H may be selectable when the thermostat is in PTAC mode and will run the fan continuously at low, medium or high speeds.
  4. System Button
    Selects the operation mode on your HVAC system. Selecting HEAT turns on the heat mode. Selecting COOL turns on the cool mode. Selecting OFF turns both heating and cooling
    off. (EM HEAT will appear as an option if operating a heat pump. EM HEAT setting will turn on emergency heat)
  5. Temperature Setpoint Buttons
    Press the Pro1-Technologies-T751-Non-Programmable-Thermostat-FIG-2or Pro1-Technologies-T751-Non-Programmable-Thermostat-FIG-3 buttons to select the desired room temperature.

Thermostat Quick Reference

Battery Information

Pro1-Technologies-T751-Non-Programmable-Thermostat-FIG-4

Important
The low battery indicator is displayed when the AA battery power is low. If the user fails to replace the battery within 21 days, the screen will only show the low battery indicator but maintain all functionality. If the user fails to replace the batteries after an additional 21 days (days 22-42 since the first “low battery” display) the setpoints will change to 55˚F (Heating) and 85˚F (Cooling). If the user adjusts the setpoint away from either of these, it will hold for 4 hours and then return to either 55˚F or 85˚F. After day 63 the batteries must be replaced immediately to avoid freezing or overheating because the thermostat will shut the unit off until the batteries are changed.

Caution: When the batteryPro1-Technologies-T751-Non-Programmable-Thermostat-FIG-5 icon appears replace your AA batteries immediately. Failure to do so may result in your heating & cooling system becoming inoperable. Freezing or overheating can occur.

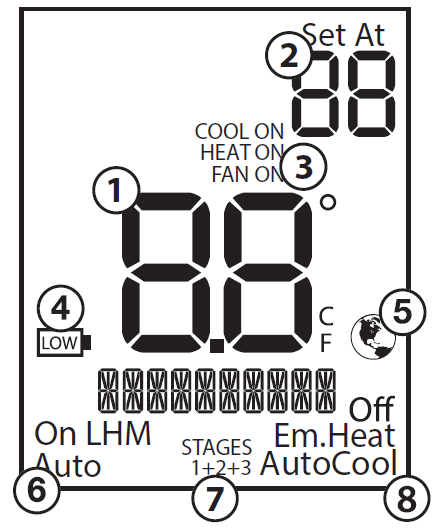

Pro1-Technologies-T751-Non-Programmable-Thermostat-FIG-6

    1. Indicates the current room temperature
    2. Setpoint: Displays the selected setpoint temperature.
    3. System Operation Indicators:
      The COOL ON, HEAT ON, or FAN ON will display when the COOL, HEAT, or FAN is on. The compressor delay feature is active if these are flashing.
    4. Low Battery Indicator: Replace batteries when this indicator is shown.
    5. Globe: Globe is displayed if an energy-efficient temperature has been selected.
    6. Fan: Indicates the current fan setting.
    7. Stages: +1 will appear in the display when the first stage of heat or cool is on. +2 will appear for the second stage of heat.
    8. System: Indicates current system mode setting.

Warranty Information

Warranty Registration
Your new thermostat has a 5-year limited warranty. You must register your thermostat within 60 days of installation. Without this registration, the warranty period will begin on the date of manufacture. For warranty issues please contact the HVAC professional that installed this product. You can register your new thermostat in 2 ways:

Online
Go to the company website, select warranty registration, and fill out a short registration form.

Mail
Complete the form below and mail it to the address shown.

Warranty Registration
Thermostat Model:
Date Installed:
Complete the form and mail it to:

Thermostat Warranty Registration Pro1iaq
P.O. Box 3377
Springfield, MO 65808-3377
