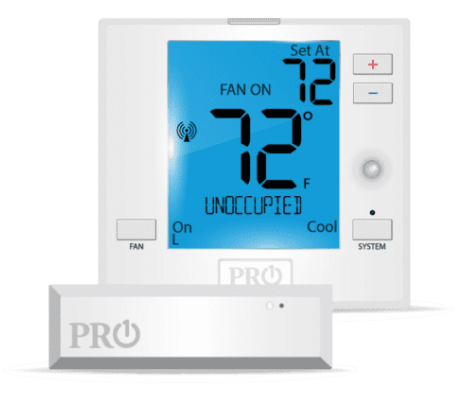

Pro1 Technologies T731WO Wireless Non-Programmable Thermostat
MODEL T731WO
- Wireless Universal
- (Optimized for PTAC’s)
- Up to 1 Heat 1 Cool Conventional
- Up to 2 Heat 1 Cool Heat Pump Battery or Hardwire
- Programmable with Occupancy Sensor
This model features
- 7 sq. inch display
- Blue backlight
- Glow in the dark light button
- Easy access battery compartment
- Universal sub base
- Simple private label badge system
- Setpoint limits
- Electric or gas configurable
- Mounts on wall or junction box
- Auto-changeover
- 5 Year Warranty
- 5-minute compressor delay protection (selectable on or off)
- Separate heating and cooling swing (cycle rate) adjustments
- Battery or 24V power
- Room temperature calibration adjustments
- Easy wire color-coded terminal blocks
- On-Board Occupancy Sensor
Specifications
- Application: 1 Heat 1 Cool Conventional, 2 Heat 1 Cool Heat Pump
- Programmability: Programmable with Occupancy Sensor
- System Switch: Cool – Off – Heat
- Display Range: 41˚F to 95˚F (5˚C to 35˚C)
- Control Range: 44˚F to 90˚F (7˚C to 32˚C)
- Display Accuracy: +/- 1˚F
- Heat Swing: Adjustable from 0.2˚F to 2.0˚F
- Cool Swing: Adjustable from 0.2˚F to 2.0˚F
- Terminals: R, C, Y, W, O, B, GH, GL
- Load Rating: 1 amp per terminal, 1.5 amp maximum for all terminals combined
- Power Source: 18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire) Battery power from 2 AA Alkaline batteries
- Operating Ambient: 32˚F to +105˚F (0˚C to +41˚C)
- Operating Humidity: 90% non-condensing maximum
- Mounting: Wall or Junction Box
- Dimensions: 4.7”W x 4.4”H x 0.8”D (119mm W x 112mm H x 20mm D)
- Warranty: 5-year warranty
Reference
Download Manual:
Pro1 Technologies T731WO Wireless Non-Programmable Thermostat Product Specifications Guide
