Pro1 Technologies T705 Programmable Thermostat Installational Manual

Pro1 Technologies T705 Programmable Thermostat

Pro1 Technologies
P.O. Box 3377
Springfield, MO 65808-3377
Toll-Free: 888-776-1427
Web: www.pro1iaq.com
Hours of Operation: M-F 9 AM – 6 PM Eastern

Thermostat Application Guide

Description
Gas or Oil Heat	Yes
Electric Furnace	Yes
Heat Pump (No Aux. or Emergency Heat)	Yes
Heat Pump (With Aux. or Emergency Heat)	No
Multi-Stage Systems	No
Heat Only Systems	Yes
Heat Only Systems – Floor or Wall Furnace	Yes
Cool Only	Yes
Millivolt	Yes

Specifications

• The display range of temperature … 41˚F to 95˚F (5˚C to 35˚C) The control range of temperature is 44˚F to 90˚F (7˚C to 32˚C)
• Swing (cycle rate or differential)……… The heating is adjustable from 0.2˚ to 2.0˚
• Cooling is adjustable from 0.2˚ to 2.0˚ Power source  18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire
• Battery power from 2 AA Alkaline batteries
• Operating ambient………………… 32˚F to +105˚F (0˚C to +41˚C)
• Operating humidity………………… 90% non-condensing maximum
• Dimensions of thermostat……………. 4.7”W x 4.4”H x 0.8”D

Power Type

• Battery Power
• Hardwire (Common Wire)
• Hardwire (Common Wire) with
• Battery Backup

A trained, experienced
the technician must install this product. Carefully read these instructions. You could damage this product or cause a hazardous condition if you fail to follow these instructions.

Installation Tips

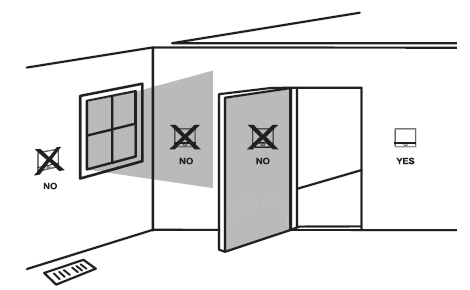

Wall Locations
The thermostat should be installed approximately 4 to 5 feet above the floor. Select an area with average temperature and good air circulation.

Pick an installation location that is easy for the user to access. The temperature of the location should be representative of the building.

Subbase Installation

1. Horizontal Mount
2. Vertical Mount

For vertical mount put one screw on the top and one screw on the bottom. For horizontal mount put one screw on the left and one screw on the right.

Do not install thermostats in locations:

• Close to hot or cold air ducts
• That is in direct sunlight
• With an outside wall behind the thermostat
• In areas that do not require conditioning
• Where there are dead spots or drafts (in corners or behind doors)
• Where there might be concealed chimneys or pipes

Installation Tip:
Electrical Hazard
Failure to disconnect the power before beginning to install this product can cause electrical shock or equipment damage.

Mercury Notice
All of our products are mercury-free. However, if the product you are replacing contains mercury, dispose of it properly. Your local waste management authority can give you instructions on recycling and proper disposal.

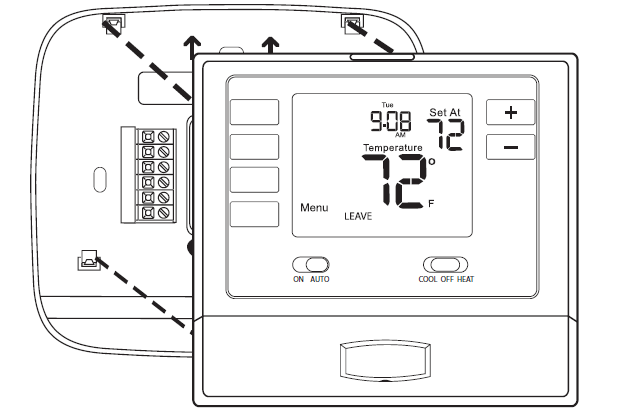

Mount Thermostat
Align the 4 tabs on the subbase with corresponding slots on the back of the thermostat, then push gently until the thermostat snaps in place.

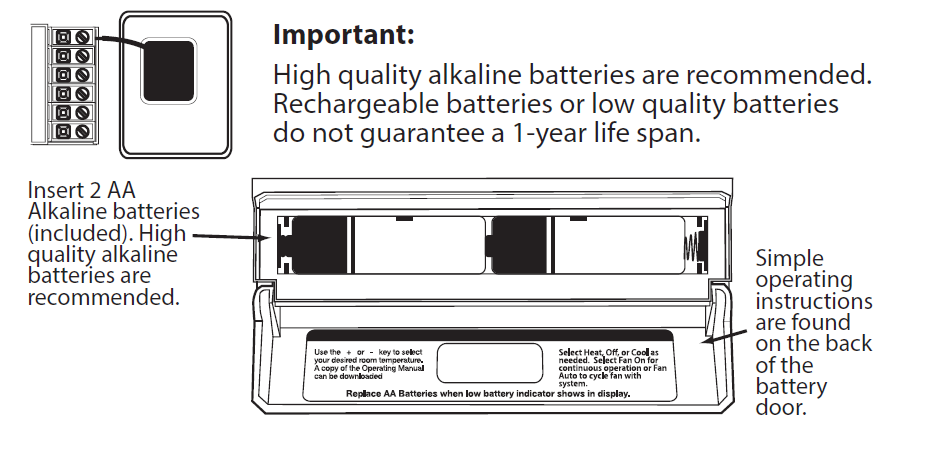

 Battery Installation
Battery installation is recommended even if the thermostat is hardwired (C terminal connected). When the thermostat is hardwired and batteries are installed, the thermostat will activate a compressor delay of 5 minutes when the thermostat detects a power outage from the hardwired power supply.

Important:
High-quality alkaline batteries are recommended. Rechargeable batteries or low-quality batteries do not guarantee a 1-year life span.

Thermostat Quick Reference

1. LCD Display
2. Glow in the dark light button
3. Fan Switch
4. System Switch
5. Easy change battery door
6. Temperature Setpoint Buttons
7. User Buttons

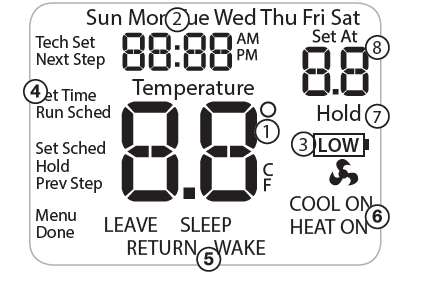

1. Indicates the current room temperature
2. Time and day of the week
3. Low Battery Indicator: Replace batteries when this indicator is shown.
4. Button Options
5. Program Time Periods: This thermostat has 4 programmable time periods per day.
6. System Operation Indicators: The COOL ON, HEAT ON, or icon will display when the COOL, HEAT, or  (fan) is on.
   Note: The Compressor delay feature is active if these are flashing.
7. the hold is displayed when the thermostat program is permanently overridden.
8. Setpoint: Displays the user-selectable setpoint temperature.

Important
The low battery indicator is displayed when the AA battery power is low. If the user fails to replace the battery within 21 days, the screen will only show the low battery indicator but maintain all functionality. If the user fails to replace the batteries after an additional 21 days (days 22-42 since the first “low battery” display) the setpoints will change to 55˚F (Heating) and 85˚F (Cooling). If the user adjusts the setpoint away from either of these, it will hold for 4 hours and then return to either 55˚F or 85˚F. After day 63 the batteries must be replaced immediately to avoid freezing or overheating because the thermostat will shut the unit off until the batteries are changed.

Wiring

1. If you are replacing a thermostat, make note of the terminal connections on the thermostat that is being replaced. In some cases, the wiring connections will not be color coded. For example, the green wire may not be connected to the G terminal.
2. Loosen the terminal block screws. Insert wires then retighten terminal block screws.
3. Place non-flammable insulation into the wall opening to prevent drafts.

Terminal Designations

• O Heat pump changeover valve energized in cooling
• Heat pump changeover valve energized in heating
• W Heat relay
• RH Transformer power for heating
• RC Transformer power for cooling
• G Fan relay
• Y Compressor relay
• B The common wire from the secondary side of the cooling system transformer

Caution: Electrical Hazard
Failure to disconnect the power before beginning to install this product can cause electrical shock or equipment damage.

Warning:
All components of the control system and the thermostat installation must conform to Class II circuits per the NEC Code.

Wiring Tips
RH & RC Terminals
For single transformer systems, leave the jumper wire in place between RH and RC. Remove the jumper wire for the two transformer systems.

C Terminal
The C (common wire) terminal does not have to be connected when the thermostat is powered by batteries.

Wire Specifications
Use shielded or non-shielded 18-22 gauge thermostat wire.

Installation Tip: Do not overtighten terminal block screws, as this can damage the terminal block. A damaged terminal block can keep the thermostat from fitting on the sub-base correctly or cause system operation issues. Max Torque = 6in-lbs.

Heat Pump Systems (With NO AUX or Emergency Heat)
If wiring to a heat pump, use a small piece of wire (not supplied) to connect terminals W and Y.

Features

Temporary and Permanent Hold Feature (If using programming)
When cool or heat is turned on, the thermostat will display HOLD and RUN SCHED on the left of your screen when you press the or button.
Temporary Hold: At this time if you do nothing, the temperature will remain at this setpoint temporarily until the next time period.
Permanent Hold: If you press the HOLD key on the left of your screen, you will see HOLD appear below the setpoint temperature in the display. The thermostat will now permanently stay at this setpoint and can be adjusted using the or keys. To Return to Running Schedule: Press the RUN SCHED button on the left of your screen to exit either temporary or permanent hold.

Filter Change Reminder
If your installing contractor has configured the thermostat to remind you when the air filter needs to be changed, you will see FILT in the display when your air filter needs to be changed.

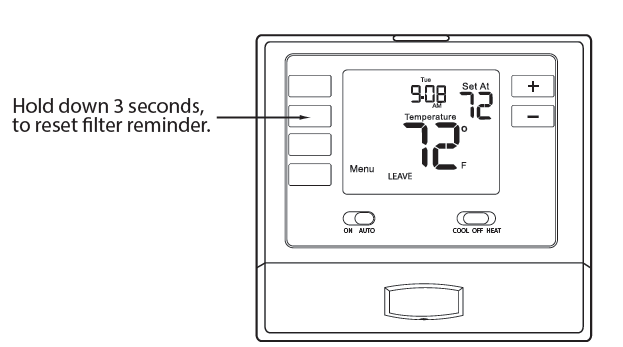

Resetting the filter change reminder: When the FILT reminder is displayed, you should change your air filter and reset the reminder by holding down the second button from the top left side of the thermostat for 3 seconds.

Resetting the filter change reminder: When the FILT reminder is displayed, you should change your air filter and reset the reminder by holding down the second button from the top left side of the thermostat for 3 seconds.

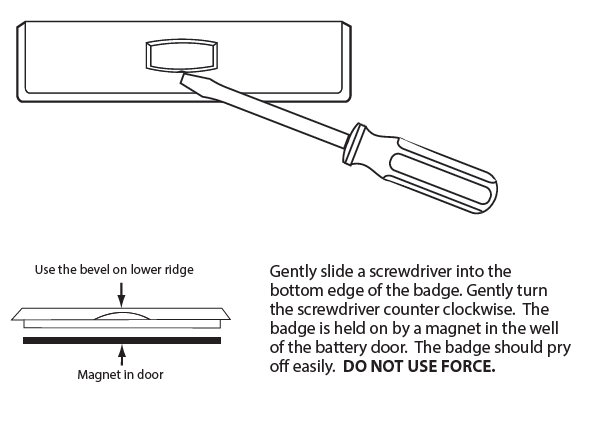

Private Label Badge
All of our thermostats use the same universal magnetic badge. Visit the company website to learn more about our free private label program.

Wiring Diagrams

1. Power supply
2. Factory-installed jumper.
3. Remove only when installing on 2-transformer systems Use either O or B terminals for the changeover valve
4. Use a small piece of wire (not supplied) to connect W and Y terminals
5. Set fan operation setting to Electric
6. Optional 24 VAC common connection when the thermostat is used in battery power mode
   1. Power supply
   2. Factory-installed jumper.
   3. Remove only when installing on 2-transformer systems Use either O or B terminals for the changeover valve
   4. Use a small piece of wire (not supplied) to connect W and Y terminals
   5. Set fan operation setting to Electric
   6. Optional 24 VAC common connection when the thermostat is used in battery power mode

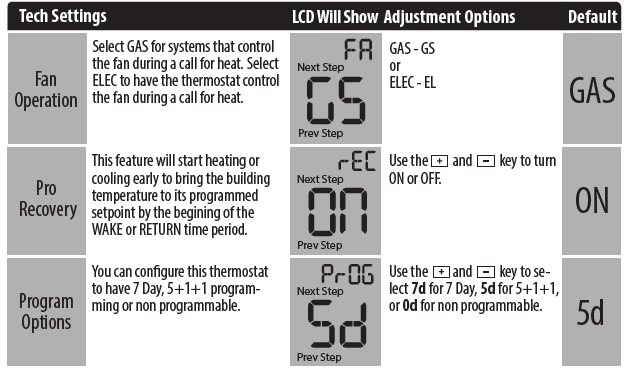

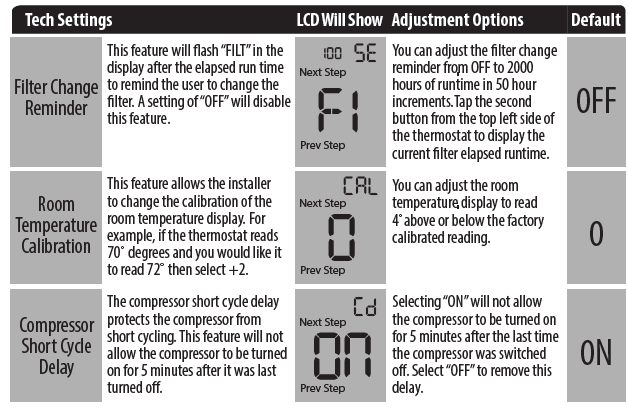

Tech Settings

This thermostat has a technician setup menu for easy installer configuration. To set up the thermostat for your particular application:

1. Press the MENU button
   Press and hold the TECH SET button for 3 seconds. This 3-second delay is designed so that homeowners do not accidentally access the installer settings.
2. Configure the installer options as desired using the table below.
3. Use the or keys to change settings and the NEXT STEP or PREV STEP key to move from one step to another. Note: Only press the DONE key when you want to exit the Technician Setup options.

Swing Setting Tip
The temperature swing, sometimes called differential or cycle rate, can be customized for this individual application. For most applications choose a swing set that is as long as possible without making the occupants uncomfortable.

Set Time

1. With the system switch set to OFF, press the MENU button
2. Press SET TIME
3. The day of the week will be flashing. Use the or key to select the current day of the week.
4. Press NEXT STEP
5. The current hour is flashing. Use the or key to select the current hour. When using 12-hour time, make sure the correct a.m. or p.m. choice is selected.
6. Press NEXT STEP
7. Minutes are now flashing. Use the or key to select current minutes.
8. Press DONE when completed. (If using programming)

Programming
All of our programmable thermostats are shipped with an energy-saving pre-program. You can customize this default program by following the steps on page 15. Your thermostat can be programmed to have all the weekdays the same, a separate program for Saturday, and a separate program for Sunday or 7 days individually. There are four time periods for each program (WAKE, LEAVE, RETURN, SLEEP).

1. Set Program Schedule 5+1+1 or 7 Day
2. Select HEAT or COOL with the system switch. Note: You have to program heat and cool each separately.
3. Press the MENU button (If the menu does not appear first press RUN SCHED)
4. Press SET SCHED. Note: Monday-Friday or (Monday if in 7 Days) is displayed and the WAKE icon is shown. You are now programming the waketime period for that day.
5. Time is flashing. Use the or key to make your time selection for that day’s WAKE time period.
6. Press NEXT STEP
7. The setpoint temperature is flashing. Use the orkey to make your setpoint selection for that day’s WAKE time period.
8. Press NEXT STEP
9. Repeat steps 4 thru 7 for that day’s LEAVE time period, RETURN time period and SLEEP time period.

Saturday:
Repeat steps 4 through 7 for the Saturday WAKE time period, LEAVE time period, RETURN time period, and for the Saturday SLEEP time period.

Sunday:
Repeat steps 4 through 7 for the Sunday WAKE time period, LEAVE time period, RETURN time period, and for the Sunday SLEEP time period.If using 7-Day Programming use the previous steps for every individual day.You can also use these time-saving functions. You must be in Set Sched Programming Mode (Press Menu >> Press Set Sched) for the following functions to work:

1. To copy ALL time periods and temperatures of the current system and day to ALL days, Press and Hold the 2nd button down on left until the Days and Time flash.
2. To copy ALL time periods (only times) for ALL days to the opposite system (Heat to Cool / Cool to Heat), Press and hold the Glow in the Dark Light button down until Set Time and Time flash.
