Pro1 T605-2 Programable Thermostats Operation Manual

Pro1-Technologie-logo

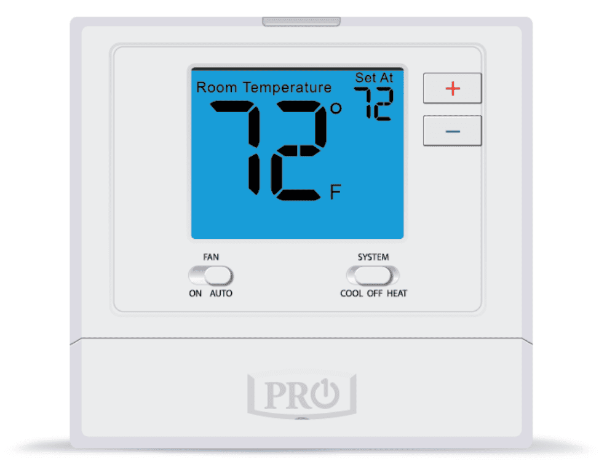

Pro1 T605-2 Programable Thermostats

Pro1-T605-2-Programable-Thermostats-Operation-Manual-product

Caution
Equipment damage hazard. Do not operate the cooling system if the outdoor temperature is below 50 ˚F (10 ˚C) to prevent possible compressor damage.

Thermostat Operation

Pro1-T605-2-Programable-Thermostats-Operation-Manual-fig-1

  1. LCD Display
  2. Fan Switch
  3. System Switch
  4. Easy change battery door
  5. Temperature Setpoint Buttons
  6. User Buttons
    • LCD Display
      See page 4 for details about this display readout.
    • Fan Switch
      Select ON or AUTO. ON will run the fan continuously. AUTO will cycle the fan on only when the heating or cooling system is on.
    • System Switch
      Selects the operation mode on your HVAC system. Selecting HEAT turns on the heat mode. Selecting COOL turns on the air conditioning mode. Selecting OFF turns both heating and cooling off.
    • Easy Change Battery Door
      See page 5 for details.
    • Temperature Setpoint Buttons
      Press the + or – buttons to select the desired room temperature.
    • User Buttons
      Use these buttons to set up your programming options. Refer to the next page for detail.

Caution
When the battery icon Pro1-T605-2-Programable-Thermostats-Operation-Manual-fig-2appears replace your AA batteries immediately. Failure to do so may result in your heating & cooling system becoming inoperable. Freezing or overheating can occur.

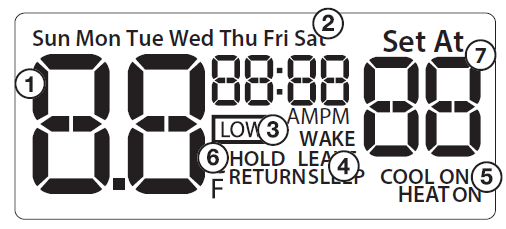

Thermostat Quick Reference



Pro1-T605-2-Programable-Thermostats-Operation-Manual-fig-3

  1. Indicates the current room temperature
  2. Time and day of the week
  3. Low Battery Indicator: Replace batteries when this indicator is shown.
  4. Program Time Periods: This thermostat has 4 programmable time periods per day.
  5. System Operation Indicators: ON will display when the COOL or HEAT is on. The compressor delay feature is active when flashing.
  6. The hold is displayed when the thermostat program is permanently overridden.
  7. Setpoint: Displays the user-selectable setpoint temperature.

Important
The low battery icon is displayed when the AA battery power is low. Whenever the thermostat detects low battery voltage from the AA batteries, the low battery icon will begin flashing on the screen for 21 days (if the batteries are not changed). If the batteries are not changed 22 days after the thermostat detects low battery voltage, the thermostat screen will only show the flashing battery icon until the buttons are pressed. If the batteries are not changed 43 days after the thermostat detects low battery voltage, the thermostat screen will only show the flashing battery icon until buttons are pressed and the set points will offset to 85°F/29°C in cooling and 55°F/13°C in heating. At this stage, set point changes can be made temporarily but, the set points will change back to defaulted values after a 4-hour period. The thermostat will continue to perform this low battery flashing, temperature offset condition until the internal voltage threshold is reached. When the thermostat’s internal voltage threshold is reached, all relays will be opened and the thermostat will become inoperable until new batteries are installed.

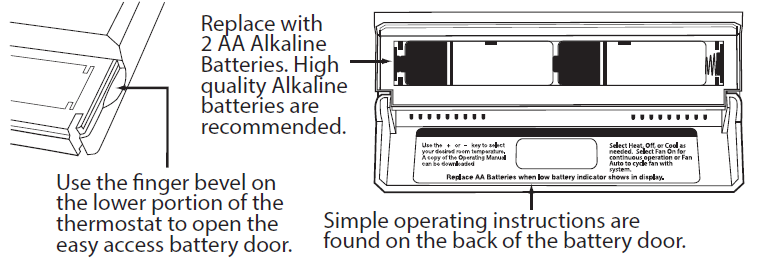

Battery Door Information

Pro1-T605-2-Programable-Thermostats-Operation-Manual-fig-4

Temporary and Permanent Hold Feature

Note: This is a programmable thermostat, and will always be running a programmed schedule. However, it can be overridden with a Temporary or Permanent Hold. Temporary Hold: With the system in Heat or Cool, anytime the set-at temperature is changed with the + or – buttons, the thermostat will enter a Temporary Hold. This will be indicated by “HOLD” flashing and will remain on this hold until the next programmed time period begins.

Permanent Hold: To enter a permanent Hold, press the Hold/Run button while “HOLD” is flashing. The word “HOLD” will remain on continuously, indicating a Permanent Hold.
To Return to Running Schedule: To manually exit this hold and return to the scheduled program, press the Hold/Run button or cycle the System Switch.

Set Time

  1. Press TIME
  2.  The day of the week will be flashing. Use the Pro1-T605-2-Programable-Thermostats-Operation-Manual-fig-5or Pro1-T605-2-Programable-Thermostats-Operation-Manual-fig-6key to select the current day of the week.
  3. Press TIME
  4. The current hour is flashing. Use thePro1-T605-2-Programable-Thermostats-Operation-Manual-fig-5 or Pro1-T605-2-Programable-Thermostats-Operation-Manual-fig-6key to select the current hour. When using 12-hour time, make sure the correct a.m. or p.m. choice is selected.
  5. Press TIME
  6. Minutes are now flashing. Use the Pro1-T605-2-Programable-Thermostats-Operation-Manual-fig-5orPro1-T605-2-Programable-Thermostats-Operation-Manual-fig-6 key to select current minutes.
  7. Press HOLD/RUN when completed.

Set Program Schedule
To customize your program schedule, follow these steps on Weekdays:

  1. Select HEAT or COOL with the system switch. Note: You have to program heat and cool each separately.
  2.  Press the PROGRAM
  3. Monday-Friday is displayed and WAKE is shown. You are now programming the wake-time period for the weekday setting.
  4. Time is flashing. Use thePro1-T605-2-Programable-Thermostats-Operation-Manual-fig-5 or Pro1-T605-2-Programable-Thermostats-Operation-Manual-fig-6key to make your time selection for the weekday WAKE time period.
  5. Press PROGRAM
  6. The setpoint temperature is flashing. Use the Pro1-T605-2-Programable-Thermostats-Operation-Manual-fig-5or Pro1-T605-2-Programable-Thermostats-Operation-Manual-fig-6key to make your setpoint selection for the weekday wake period.
  7. Press PROGRAM
  8. Repeat steps 4 thru 7 for the weekday LEAVE time period, for the weekday RETURN time period, and for the weekday SLEEP time period.

Set Program Schedule

To customize your program schedule, follow these steps

Saturday: Repeat steps 4 thru 7 for the Saturday WAKE time period, LEAVE time period, RETURN time period, and Saturday SLEEP time period.

Sunday: Repeat steps 4 thru 7 for the Sunday WAKE time period, LEAVE time period, RETURN time period, and for the Sunday SLEEP time period.

Warranty Information

Warranty Registration
Your new thermostat has a 2-year limited warranty. You must register your thermostat within 60 days of installation. Without this registration, the warranty period will begin on the date of manufacture. For warranty issues please contact the HVAC professional that installed this product. You can register your new thermostat in 2 ways: Go to the company website, select warranty registration, and fill out a short registration form. Complete the form below and mail it to the address shown.

Pro1 Technologies
P.O. Box 3377
Springfield, MO 65808-3377
Toll-Free: 888-776-1427
Web: www.pro1iaq.com
Hours of Operation: M-F 9 AM – 6 PM Eastern
