Poer PTC2O Programmable Room Thermostat
SYMBOLS DESCRIPTION
PTC20 is a wireless, programmable thermostat set that is easy to install and use. It can be applied to any water heating control system, including gas boilers, electric boilers, central heating systems, air heating systems. Suitable for installing new system or updating existed system.
Integrated with Amazon Alexa and Google Home.
Connected to Internet through WIFI, this thermostat PTC20 could be operated remotely via App by mobile phone(Support for Android and 1OS); Without WIFI, thermostat PTC20 could be used as a normal programmable thermostat.
Humidity display, more concerned about your room environment.
High and low temperature alarm message push notification.
Features
| 12 time periods per day, | Frost protection | Auto, manual, | Memory holds | Large LCD | WIFI signal Child lock |
| 5+2days/7days/ 1day | and Valve | holiday, ECO | user programs | display with | strength |
| independent | protection | and override | when power | backlight | display |
| programming for option | function | modes | failed |
Thermostat PTC20
Thermostat PTC26 can control high-power heating equipment like electric heating fioor system and electric radiators, etc; also can control low power AC devices like electric actuators, etc.
Integrated with Amazon Alexa and Google Home
Connected to Internet through WIFI , this thermostat PTC26 could be operated remotely via App by mobile phone(Support for Android and 10S); Without WIFI , thermostat PTC26 could be used as a normal programmable thermostat.
Humidity display, more concerned about your room environment.
PTC26 can be connected to the external temperature sensor as a temperature measurement option, or as a temperature limit function to prevent the floor from overheating damage
High and low temperature alarm message push notification.

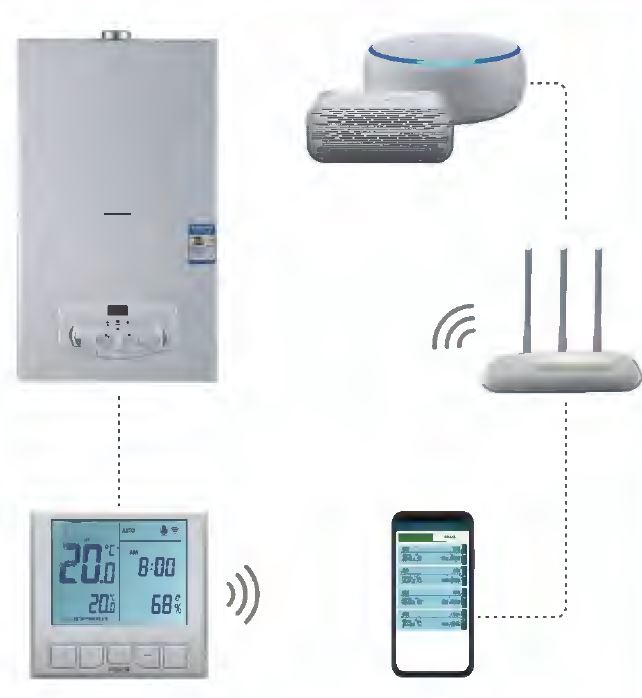

Connect to gas/electric boilers

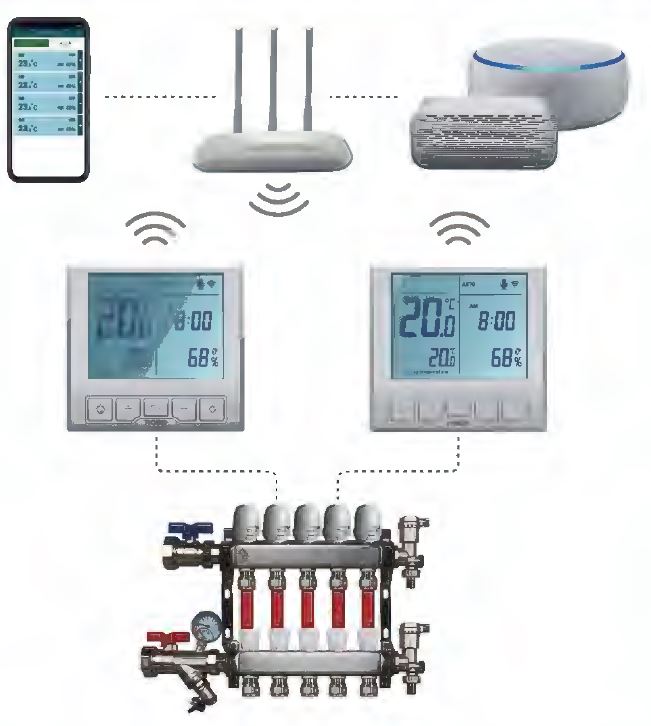

Connect to electric actuators, zone valves and pumps
Thermostat PTC20 / Thermostat PTC26
| Thermostat | PTC20 | Thermostat | PTC26 | ||
| Operating Temperature | o – so0 c | Operating Temperature | o- so0 c | ||
| Control mode | Heating system | Control mode | Heating system | ||
| Display | LCD with backlight | Display | LCD with backlight | ||
| Temperature control range | 7°C – 32°C (0.5°C I step) | Temperature control range | 7°C – 32°C (0.5°C I step) | ||
| Temperature control accuracy | +/-0.3°C | Temperature control accuracy | +/-0.3°C | ||
| Antifreeze temperature | 7°C | Antifreeze temperature | 7°C | ||
| Humidity range | 10 to 90%RH | Humidity range | 10 to 90%RH | ||
| Humidity accuracy | +/-5%RH | Humidity accuracy | +/-5%RH | ||
| Time display
Dimensions (H x W x D) |
12hour / 24hour
86 x 86 x 40.5mm |
Time display
Dimensions (H x W x D) |
12hour / 24hour
86 x 86 x 40.5mm |
||
| IP class | IP30 | IP class | IP30 | ||
| Standard | CE | Standard | CE | ||
| Power supply | 100VAC – 240VAC, 50Hz | Power supply | 100VAC – 240VAC, 50Hz | ||
| Switch rating | 240VAC 50Hz, 5A | Switch rating | 240VAC 50Hz, 16A | ||
| Switch Type | SPDTrelay | Switch Type | SPSTrelay |
Reference
Download Manual:
Poer PTC2O Programmable Room Thermostat Product Specification Guide
Poer PTC2O Programmable Room Thermostat Product Specification Guide
