Peco T8532-001 Programmable Thermostat Product Specifications Guide

peco-logo

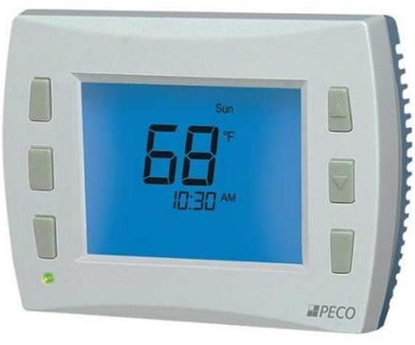

Peco T8532-001 Programmable Thermostat

Peco- T8532-001- Programmable- Thermostat  -PRO

Technical Data

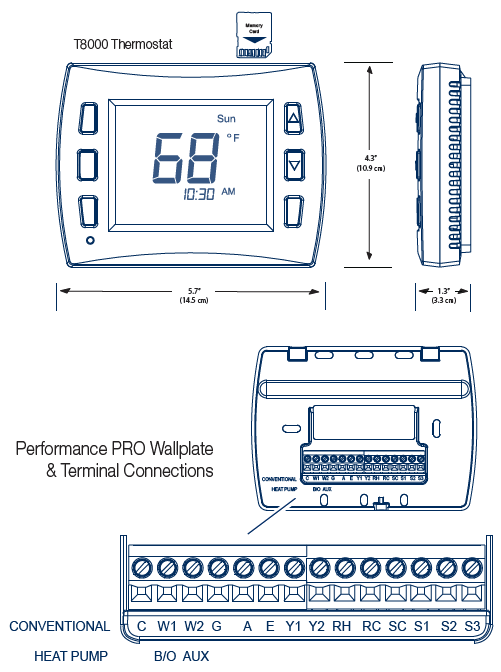

Dimensions

Mounting Direct mount; 2″ x 4″ horizontal

or vertical, or 4″ x 4″

LCD Viewable Size 8 inch2 – 2.5″ W x 3.2″ H

51.8 cm2 – 6.4 cm W x 8.1 cm H

Physical Dimensions 5.7” W x 4.3″ H x 1.3″ D

Models & Accessories

Model Part No. Description
T8532-IAQ 70337 Performance PRO 3 Heat/2 Cool staging, programmable w/ Humidification/Dehumidification control
T8532-001 69922 Performance PRO 3 Heat / 2 Cool staging, programmable.
69308 69308 Indoor remote sensor
70327 70327 Outdoor remote sensor
SB200-001 68375 Occupancy sensor – time based
SK200-001 68381 Occupancy sensor – guest room

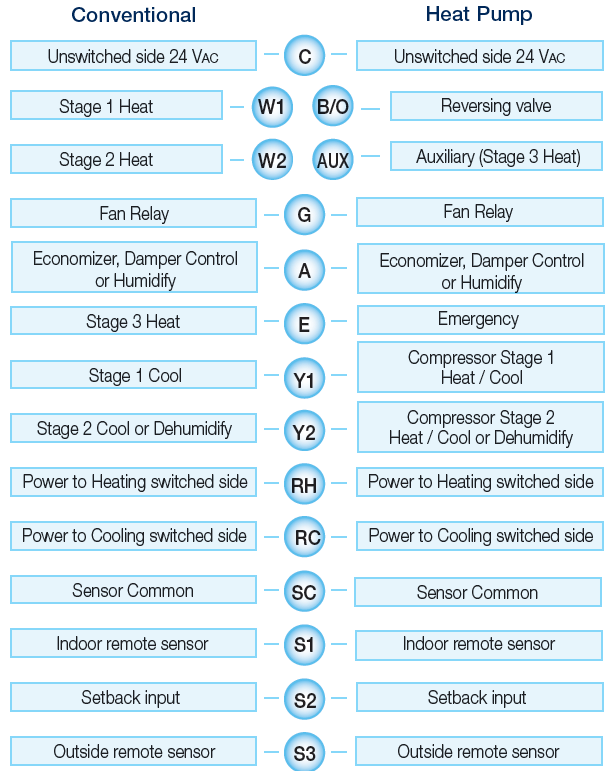

TerminalsPeco -T8532-001- Programmable -Thermostat  -2

SpecificationsPeco -T8532-001- Programmable -Thermostat  -1

Temperature Control Range 50° to 90° F (10° to 32° C)
Operating Temperature Range 0° to 120° F (-18° to 49° C)
Storage Temperature Range -20° to 130° F (-29° to 55° C)
Electrical Input Frequency 50/60 Hz +/- 10%
Input Power 24 VAC (20-30 VAC) and/or 2 AA alkaline batteries (Installing batteries recommended)
Output Terminal W – Heating 20-30 VAC 0.02-1.0 A
Output Terminal Y – Cooling 20-30 VAC 0.02-1.0 A
Output Terminal G – Fan 20-30 VAC 0.02-0.6 A
Output Terminal A – Economizer 20-30 VAC 0.02-1.0 A
Dehumidification Sensor 0 – 100% RH
Dehumidification Range 25% – 99% RH
Termination Connections Wallplate w/ terminal blocks
Memory Card SD (Secure Digital)

High Performance Commercial Functions

  • Day, 5-1-1, 5-2, non-programmable modes
  • Programmable & intermittent fan
  •  Economizer / damper control output
  •  3 Levels of keypad lockout with PIN access
  • Meets CA Building Code, Title 24 with pre-occupancy purge & override limitations
  •  Compressor & auxiliary lockout for dual fuel (fossil) or electric auxiliary heat
  •  Heating / Cooling LED indicator
  •  Low battery & change filter indicators
  • Occupancy sensor / setback input
  •  Remote indoor & outdoor sensor support
  •  Commercial proportional integral control with configurable ramp recovery

Warranty

5 Year Warranty

  • Large BLUE backlit display – 8 inch2 in sleek-design housing, allowing easy viewing in low light.
  • Memory card interface, enabling quick configuring of large-project installations.
  • 365 Day programmable calendar, with 20 holidays & daylight-saving time shifts, giving set-and-forget-it convenience.
  • Humidification/dehumidification control, maximizing occupant comfort with a programmable environment. (Model T8532-IAQ)
  • Battery or hard-wire with power harvesting, or (Green) mode, preserving battery life & reducing disposals.
  • Performance PRO Series common wall plate, allowing installer or customer to easily upgrade to richer function thermostats.
