OJ ELECTRONICS UTN4 Non-Programmable Thermostat

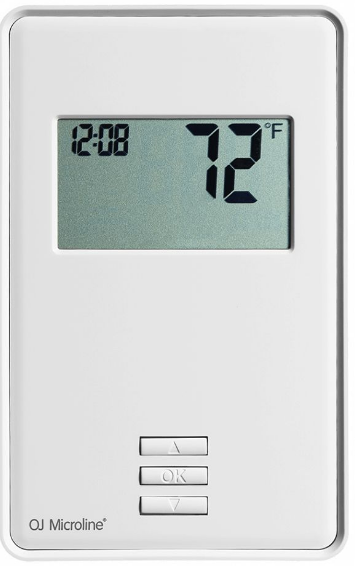

OJ-ELECTRONICS-UTN4-Non-Programmable-Thermostat-Product

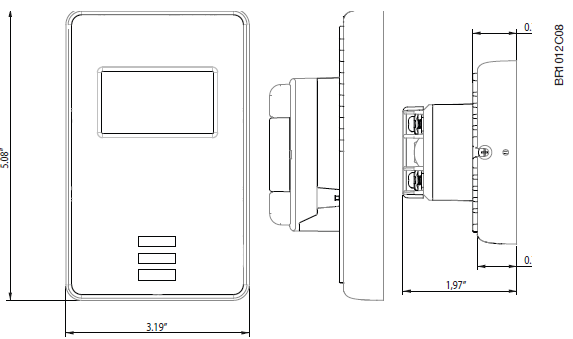

DIMENSION

UTN4-4999

Intuitive control
Energy log
Sensor for room temperature
Back-lit display for easy reading

The UTN4-4999 non programmable thermostat for electric underfloor heating has sleek design and intuitive control designed for easy installa-tion.

Thermostat with integrated GFCI (updated to latest UL standard (2015))
Track power consumption
Embedded sensor for ambient temperature control
Floor sensor and floor protection
Temperature scale in Fahrenheit or Celsius
Real time clock (12-hour or 24-hour format)
Ability to control secondary relays
Available in an EGFPD (15mA) variant
Sleek design – patent pending

Energy log last week
The OJ Microline® UTN4-4999 has an easy acces-sible energy log covering the last seven days thereby providing easy control of energy consumption for homeowners.

Floor sensors and floor protection
The thermostat is suitable for tile, stone, laminate, concrete and wooden floors. Choose between 3 dif-ferent control modes:

Ambient temperature with floor protection
(laminate or tile)
Floor temperature with floor protection
(laminate or tile)
Ambient temperature without floor protection

Design variants
The UTN4 is available in both an all-black or an all-white look. The UTN4 front plate can be replaced easily and by people not certified for electric code.

TECHNICAL DATA

Supply: 120/240 Vac 50/60 Hz
Load: 15A maximum (resistive load)
Power: 1,800 W at 120 Vac 3,120 W at 208 Vac 3,600 W at 240 Vac
GFCI (UTN4-4999): Class A (5 mA trip level)
EGFPD (ATN4-4999): 15 mA trip level
Temperature range: +41 to +104°F (+5 to +40°C)
Floor limit range: +41 to +104°F (+5 to +40°C)
Floor protection laminate/wood: 82F(27.5C)
Floor protection tile: 88F(31.0C)
Amb. Temp. range: +32 to +104°F (0 to +40°C)
On/Off differential: 0.7°F (0.4°C)
Regulation principle: PWM / PI
Housing: IP20
Floor sensor type: NTC (10 KΩ) 15 ft (4.5 m)
Dimensions(H/W/D): 5.1/3.2/0.8 inch (130/82/20mm)
Wall box (H/W/D): 3”/2”/2”

c-UL-us according to the following standards:
Thermostat: UL 60730 CSA- E60730
UL E-file: E157297
GFCI: UL 943
CSA C22.2, No. 144. 1-06

contact

Address: OJ ELECTRONICS A/S STENAGER 13B DK-6400 SØNDERBORG DENMARK
T. +45 73 12 13 14
F. +45 73 12 13 13
[email protected]
WWW.OJELECTRONICS.COM
