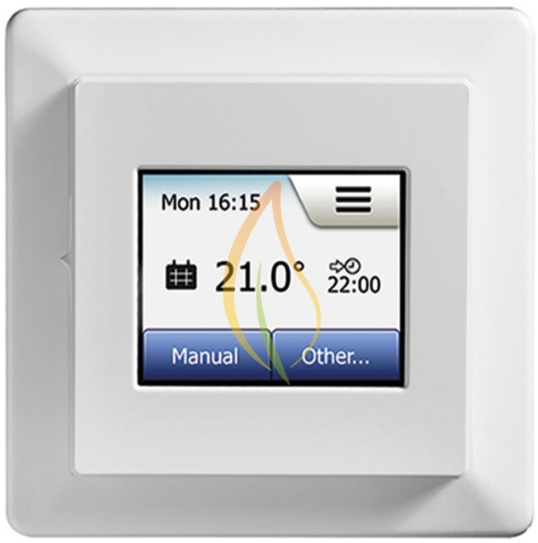

OJ ELECTRONICS MWD5-UA Voice Control WiFi Thermostat
DIMENSION
MWD5-UA-Voice
- Remote access and control via a user-friendly app
- Voice control
- Simple set-up with the installation wizard
- For individual control or heating zone control
- No gateways required
Full control. Any time, anywhere.
The OJ Microline® Voice and WiFi Thermostat MWD5 allow users to control electric underfloor heating systems on any scale via an app, giving them easy access to full control.
Features
Key features are
- Troublefree setup and use
- No Gateway required
- The OJ Microline® app (iPhone and AndroidTM) features a variety of system control options
- Voice control compatible with Amazon Alexa and Google Assistant-enabled devices
- Redundant control – full control at the thermostat
- Full app control of
- Heating Zones
- Individual thermostats
- Heating schedules
- Heating Modes
- Support of Multiple User Access
Individual control or heating zones? You decide
With the OJ Microline® Voice and WiFi Thermostat MWD5, users can choose to have each thermostat individually controlled – or to combine them in one or more jointly controlled heating zones.
The system can be easily expanded and reconfigured to match changing needs.
Remote accessibility and voice control
The OJ Microline® app makes it easy for users to organize their thermostats to exactly match their temperature control needs. What is more, detailed information on energy consumption, etc. allows users to control the heating to maximize their energy savings.
Users can control the thermostat using just their voice with Amazon Alexa or Google Assistant-enabled devices.
High system accessibility even if Internet access is interrupted
The robust system design means that users will retain full control of the heating even if their Internet access is interrupted.
Users can always access all programming options and functions via the built-in display you already know from the OJ Microline® Touch Thermostat MCD5 2” color touchscreen.
Easy, fully guided commissioning
Each OJ Microline® Voice and WiFi Thermostat MWD5 has built-in WiFi, which means that you won’t need any additional components such as gateways.
The built-in wizard takes you simply and swiftly through every single step, ensuring trouble-free commissioning.
Connecting to the app takes seconds
The user-friendly OJ Microline® app, available for Android and IOS, offers detailed assistance on how to install and connect with the MWD5 thermostat.
Key features are
- Multiple languages for the highest user-friendliness
- Wizard guidance for trouble free installation
- Integrated QR-reader for easiest connection with thermostats
- Full graphical user interface for ease of use
- Extensive system information for easy support
PRODUCT PROGRAMME
- Type/Product
- MCD5-1999-UAPx: 2” Touch Thermostat
- MWD5-1999-UAPx: 2” Touch + Wifi Thermostat
- MWD5-1999-UACx: 2” Touch + Wifi + Voice Control Thermostat
TECHNICAL DATA
- Purpose of control: Electrical underfloor heating
- Method of mounting: Wall mounting in a socket or mounting box
- Supply voltage: 100-240 VAC ±10% 50/60 Hz
- Max. pre-fuse: 16 A
- Built-in interrupter: 2-pole, 16 A
- Enclosure rating: IP 21

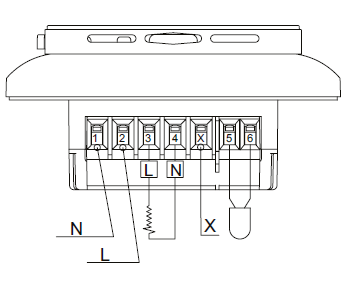

- Wire size, terminals: Current ≤ 13 A – 1.5 mm2, solid core wire Current > 13 A to 16 A – 2.5 mm2, solid core wire
- ELV limits realized: SELV 24 VDC
- Output relay: Make contact – SPST – NO
- Output, load: Max. 16 A / 3600 W
- Max. Load/supply: 1800 W at 120 Vac 3120 W at 208 Vac 3600 W at 240 Vac
- Control principle: PWM/PI
- Standby consumption: ≤0.5 W
- Battery backup: 5 years (storage)
- Battery life, typical: 5 years (storage) 10 years (powered)
- RF frequency band: 2.4 GHz
- WIFI: IEEE 802.11 b/g/n – 2.4GHz
- Security: WPA/WPA2

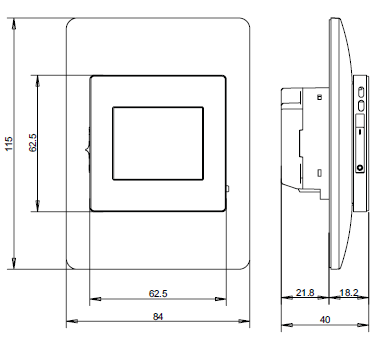

- Dimensions: H/115, W/84, D/40 mm
- Build-in: depth 22mm
- Weight: ≤200 g
- Display: 176×220 pixels TFT – resistive touch
- Control: pollution degree 2
- Overvoltage category: III
- Type of action: 1.B
- Software class: A
- Rated impulse voltage: 4kV
- Ball pressure-temperature (TB): 125°C
- EU registered design: DM/082270
Note: At very low ambient temperatures the display may respond slowly.
Only applicable for variants with built-in Wifi.
OJ cannot be held liable for any errors in the material. OJ reserves the right to alter its products without notice. This also applies to products already on order, provided that such alterations can be made without requiring subsequent changes in specifications already agreed upon. The contents of this material may be subject to copyright and other intellectual property rights and is either the property of or used under license by OJ Electronics. The OJ trademark is a registered trademark of OJ Electronics A/S. Google, Android and Google Home are trademarks of Google LLC. Google Assistant is not available in certain languages and countries. Amazone is a trademark of Amazon.com Inc. or its affiliates.
contact
- Address:OJ ELECTRONICS A/S STENAGER 13B DK-6400 SØNDERBORG DENMARK
- T. +45 73 12 13 14
- F. +45 73 12 13 13
- [email protected]
- WWW.OJELECTRONICS.COM
© 2022 OJ Electronics A/S
