OJ ELECTRONICS MCD3 Digital Thermostat

OJ-ELECTRONICS -MCD3-Digital -thermostat-product

MCD3-1999

  • The highest rating according to the European Ecodesign Directive
  • Possible to integrate with external control
  • Contemporary design, compatible with standard wall sockets, and available in several colors
  • The intuitive user interface for trouble-free programming and daily use

Introduction

Worry-free thermostat for electric underfloor heating

The MCD3 is a full-featured digital thermostat designed to the highest standards for control of electric underfloor heating. Meeting all requirements of the European Ecodesign Directive the MCD3 helps lower the environmental impact by eliminating power wastage. Its flexible features will ensure keeping the indoor temperature warm and comfortable regardless of different climates and individual needs. The MCD3 benefits from the User-Centered Design approach of OJ Electronics. This grants you effortless handling during both installation and daily use.

Energy efficient to the highest standards

Perfectly in line with the design philosophy of OJ Electronics the fully digital MCD3 controller has, without any compromise, been engineered to meet the European Ecodesign Directive for electric floor heating to the highest degree. Therefore you are now able to bring your electric floor heating solution in compliance with the requirements without the need for buying and installing any additional controllers.

Tailoring the heating to your specific needs

You can pre-program the MCD3 in a number of ways which all together help you reduce your energy consumption and cost of heating. The fully flexible programming of the build ‘4 Event Heating Schedule” lets you tailor the heating to your specific needs for the day and week – intuitively and hassle-free. In case you change your plans, the MCD3 does not let you down. The ‘Manually Override’ function allows you to change the heating to match your actual needs with the push of a button. The MCD3 also offers an intelligent ‘Adaptive Start’ function which automatically will adjust the heating to your specific environment. This ensures that you will be enjoying the right temperature at the right time. With the build ‘Open Window’ function activated the MCD3 helps save energy by pausing the heating when a sudden temperature drop happens e.g. when a window or a door to colder air is opened.

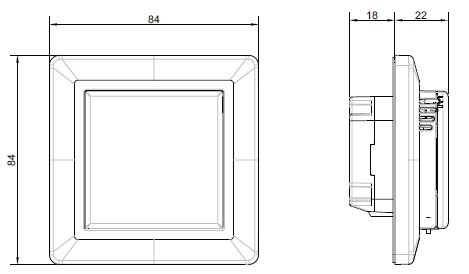

Dimensions

OJ-ELECTRONICS -MCD3-Digital -thermostat-fig-2OJ-ELECTRONICS -MCD3-Digital -thermostat-fig-3

FEATURES

“Simplicity” is the direct way to user-friendliness
The MCD3 thermostat ensures, through the most intuitive user interface and self-explaining functions, that you can go about your day without having to worry about coming back to a cold home. “Set and forget” – while connected and programmed the MCD3 will keep using your settings to make your floor comfortably warm.

Local and remote control

The comprehensive set of built-in functions makes the MCD3 a full-featured thermostat for direct control at home. You can however also choose to connect the MCD3 to a compatible external controller for remote control. With this option, the MCD3 helps you make your electric floor heating part of your Smart Home.

Wooden floors and tiles

The MCD3 is designed to match the different characteristics of e.g., wooden floors and tile floors. While the floor sensor makes sure that tiles do not feel cold to walk on, it also helps protect wooden floors from being overheated without compromising your comfort.

The stylish choice

With its contemporary design and availability in several colors, the MCD3 pleases the eye and blends well into all homes regardless of your preference for interior design. Should the automatic dimming of the crystal-clear display not meet your requirements in full, a cover is offered for making the MCD3 become “fully invisible”.

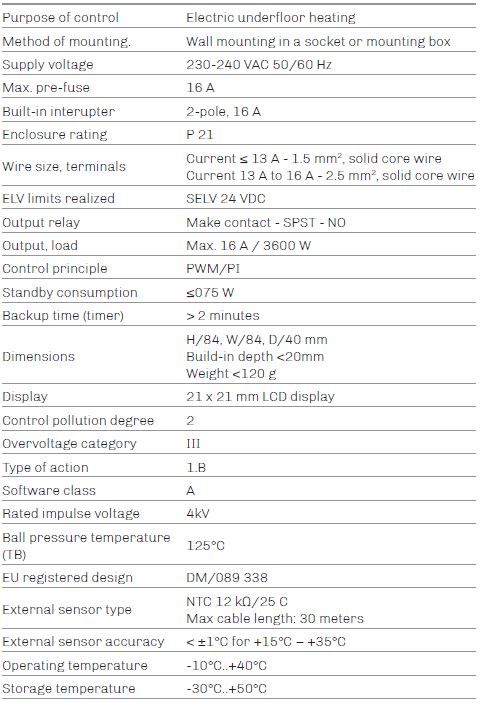

TECHNICAL DATA

OJ-ELECTRONICS -MCD3-Digital -thermostat-fig-1

OJ can accept no responsibility for possible errors in catalogs, brochures, and other printed material. OJ reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed. All trademarks in this material are the property of the respective companies. OJ and the OJ logotype are trademarks of OJ Electronics A/S. All rights reserved.
