OEM S725 Programmable Thermostat User Manual

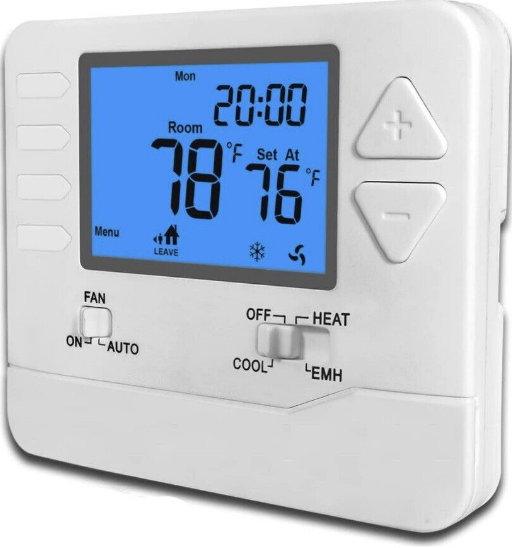

OEM S725 Programmable Thermostat

SPECIFICATION

• Warranty: 1 Year
• Material: ABS
• Function: 5/1/1 programmable
• Power Supply: Battery or 24V power
• Temp.Meas.Accuracy: ±1°C (at 20°C)
• Design Style: Contemporary
• Usage: Heating/Cooling
• Shell Color: White/Customized
• Theory: Temperature controller
• Temperature Range (℉) 41℉-95℉(5℃-35℃)
• Control Temp. Range (℉) 44℉-90℉(7℃-32℃)
• Power Source: DC 2 × AAA 1.5V Alkaline batteries
• Dimensions: 120×115×24 mm
• Sensor: NTC
• Voltage: 24VAC (18~30VAC), 50/60 Hz for hardwire
• Brand: OEM

INTRODUCTION

The OEM S725 Programmable Thermostat is a versatile and user-friendly thermostat designed to control the heating and cooling systems in residential and commercial buildings. It offers a range of programmable options, allowing you to customize the temperature settings based on your specific needs. The S725 thermostat features a large, easy-to-read display with intuitive controls that make it simple to program and adjust. It also offers a variety of advanced features such as multiple temperature settings, temperature hold, and fan control. One of the key benefits of the S725 is its programmability. You can easily set different temperature schedules for weekdays and weekends, or customize the settings for each day of the week. This allows you to save energy and reduce your heating and cooling costs by automatically adjusting the temperature when you’re not at home or during times when you don’t need as much heating or cooling.

The S725 thermostat is also compatible with a variety of heating and cooling systems, including forced air, heat pump, and radiant heat systems. It’s designed to be easy to install and operate, making it a great choice for homeowners and contractors alike. Overall, the OEM S725 Programmable Thermostat is a reliable, energy-efficient, and user-friendly solution for controlling the temperature in your home or business. A programmable thermostat with an LCD screen and push buttons is called S725. It regulates the relay switch of the heating apparatus to keep the room energy-efficient by comparing the difference between the indoor ambient temperature and the temperature chosen by the user. It is appropriate for controlling the temperature in your house, office, and other interior spaces.

WHAT IS IN THE BOX

• Thermostat
• Screws
• User Manual
• External Sensor

Features

• Warmth Pump
• Simple menu-driven programming; intuitive icons for wake-up, leave, return, and sleep; adjustable for either gas or electricity
•  Independent B and O terminals
• Separate adjustments for the swing (cycle rate) of the heating and cooling systems, including the second stage
• Adjustable room temperature calibration; Filter Change Indicator (on or off);
• Compressor delay protection for 5 minutes (selectable on/off)
• Pre-set factory program

Application

1. kitchen, bedroom, living room, and bathroom
2. Institutions like schools, hospitals, hotels, and gyms
3. Conference room and showroom
4. Exhibition

Application Scene

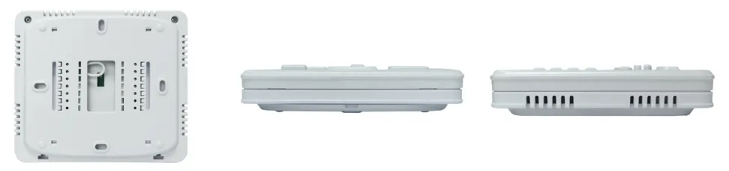

Detailed Images

HOW TO USE

The OEM S725 Programmable Thermostat is a device that can help you control the temperature of your home or office. Here are the basic steps for using the thermostat:

1. Set the time and date: Press the “Time” button and use the arrow buttons to adjust the time and date.
2. Choose your heating and cooling schedule: Press the “Program” button to enter the programming mode. Use the arrow buttons to select the days and times you want the thermostat to turn on and off the heating or cooling. You can set different schedules for weekdays and weekends.
3. Set your desired temperature: Press the “Up” and “Down” arrows to adjust the temperature to your desired setting. You can set a different temperature for each program period.
4. Override the program: If you need to change the temperature temporarily, press the “Override” button and adjust the temperature. The thermostat will return to the programmed temperature at the next program period.
5. Turn off the thermostat: If you want to turn off the thermostat, press the “Off” button. To turn it back on, press any button.
6. Adjust fan settings: If you want to change the fan settings, press the “Fan” button. You can select “Auto” for automatic fan control or “On” to keep the fan running continuously

HOW TO INSTALL

Installing an OEM S725 programmable thermostat involves several steps. Here’s a general guide to help you with the installation process:

1. Turn off the power: Turn off the power to the heating and cooling system at the circuit breaker or the main electrical panel.
2. Remove the old thermostat: Remove the old thermostat from the wall. You may need to unscrew it or pry it off the wall using a flathead screwdriver.
3. Label the wires: Identify the wires that are connected to the old thermostat and label them with their corresponding terminal letters (e.g., R, G, Y, W, C). This will help you connect the wires correctly to the new thermostat.
4. Install the mounting plate: Install the mounting plate for the new thermostat onto the wall using the screws provided.
5. Connect the wires: Connect the wires to the corresponding terminals on the new thermostat, following the labeled wires from the previous step. Refer to the installation manual for specific wiring instructions, as the terminal letters may differ depending on your system.
6. Attach the thermostat: Attach the thermostat to the mounting plate by aligning the pins on the back of the thermostat with the slots on the mounting plate and pushing it into place.
7. Turn on the power: Turn the power back on at the circuit breaker or main electrical panel and test the thermostat to make sure it’s working properly.
8. Set the programming: Set the programming on the new thermostat according to your preferences and the manufacturer’s instructions.

Note:
It’s always a good idea to consult the installation manual for your specific thermostat model and to seek the help of a qualified professional if you’re unsure about any aspect of the installation process.

HOW TO OPERATE

The OEM S725 Programmable Thermostat is a device designed to control the heating and cooling of your home or office. To operate the thermostat, please follow these steps:

1. Set the Date and Time: Press the “SET” button and use the “UP” and “DOWN” arrows to adjust the date and time.
2. Choose the Mode: Press the “MODE” button to select either “HEAT,” “COOL,” or “AUTO.” In the “HEAT” mode, the thermostat will only activate the heating system. In the “COOL” mode, the thermostat will only activate the cooling system. In the “AUTO” mode, the thermostat will switch between heating and cooling as needed to maintain the desired temperature.
3. Adjust the Temperature: Use the “UP” and “DOWN” arrows to set the desired temperature.
4. Program the Schedule: Press the “SET” button and use the “UP” and “DOWN” arrows to select the desired day of the week. Press the “SET” button again to move to the next time slot. Use the “UP” and “DOWN” arrows to set the desired temperature for that time slot. Repeat this process for each time slot.
5. Override the Schedule: To temporarily override the programmed schedule, press the “HOLD” button. Use the “UP” and “DOWN” arrows to adjust the temperature.
6. Press the “HOLD” button again to resume the programmed schedule.
7. Other Settings: The OEM S725 Programmable Thermostat also has additional settings for fan control, system cycle rate, and temperature calibration.
8. Refer to the user manual for more information on how to adjust these settings.

FREQUENTLY ASKED QUESTION

Q: What is the OEM S725 Programmable Thermostat?
A: The OEM S725 is a programmable thermostat designed to control the heating and cooling systems in your home or office.

Q: How does the OEM S725 Programmable Thermostat work?
A: The OEM S725 allows you to set different temperature schedules for weekdays and weekends, which can help you save money on your energy bills. It also has a feature that allows you to set a temporary temperature override if you need to adjust the temperature quickly.

Q: How do I install the OEM S725 Programmable Thermostat?
A: Installation instructions for the OEM S725 can be found in the user manual. If you’re not comfortable with installing the thermostat yourself, it’s recommended that you hire a licensed HVAC technician to do the installation.

Q: Can I use the OEM S725 with my existing HVAC system?
A: The OEM S725 is compatible with most HVAC systems, but it’s important to check the compatibility before purchasing the thermostat.

Q: How do I program the OEM S725 Programmable Thermostat?
A: Programming instructions can be found in the user manual. Generally, you will need to set the time, set the desired temperatures for different times of day and days of the week, and set any other features you want to use.

Q: Is the OEM S725 easy to use?
A: The OEM S725 is designed to be user-friendly, with a large, easy-to-read display and intuitive programming instructions. However, if you have any difficulties with programming or using the thermostat, you can refer to the user manual or contact the manufacturer for assistance.

Q: Does the OEM S725 come with a warranty?
A: The OEM S725 comes with a limited one-year warranty, which covers defects in materials and workmanship. It’s recommended that you register the thermostat with the manufacturer to ensure that you receive the full benefits of the warranty.

Q: Are temperature sensors present in thermostats?
The sensor informs your thermostat of the temperature of the space in which it is situated. Additionally, you may train your thermostat to use a different A: sensor at different times of the day and select which A: sensor it uses at all times.

Q: Two appliances can be controlled by a thermostat.
A: It’s crucial to remember that it’s not a good idea to connect more than one heater from different rooms to a single thermostat because that would cause the thermostat’s temperature to affect the temperature in both rooms, which is not ideal.

Q: What kind of savings are possible with a programmable thermostat?
A: It should keep in mind that for every degree you lower your thermostat, you will use 1% less energy. ENERGY STAR estimates that homes that utilize programmable thermostats wisely can save about $180 per year.

OEM S725 Programmable Thermostat User Manual
