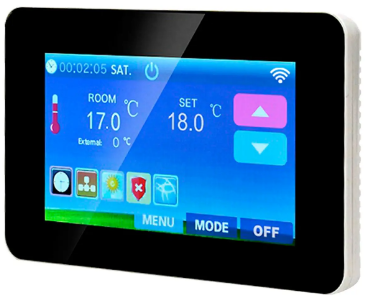

OEM ME80 Smart Home Wi-Fi Thermostat
Specification
- Warranty: 2 years, 2 years
- Material: Anti-flammable PC
- Place of Origin: Guangdong, China
- Model Number: ME80
- Temperature limitation range: 5-60℃(factory setting: 35℃)
- Housing material: anti-flammable PC
- After–sale Service: Online technical support, Free spare parts,
- Design Style: Modern
- Brand Name: OEM
- Type: Floor Heating Parts
- Voltage: 110-230V AC ,50/60Hz
- Protective housing: IP20
- Power consumption: 2W
Introduction
The OEM ME80 Smart Home Wi-Fi Thermostat is a programmable thermostat designed for use with central heating and cooling systems. It can be controlled remotely via Wi-Fi using a smartphone app or voice commands through a smart home assistant like Amazon Alexa or Google Assistant. The OEM ME80 Smart Home Wi-Fi Thermostat allows users to set custom schedules for heating and cooling, adjust temperature settings remotely, and monitor energy usage to save money on heating and cooling costs. It also has a touchscreen display and can be customized with different colored faceplates to match any home decor. The OEM ME80 Smart Home Wi-Fi Thermostat is easy to install and can be used in residential or commercial settings.
What Is In The Box
- Thermostat
- User manual
- Screws
- External sensor
Description

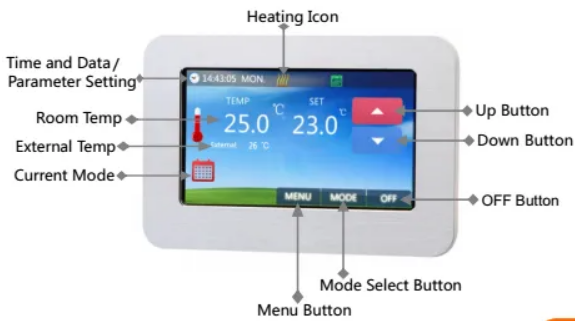

Screen & Display

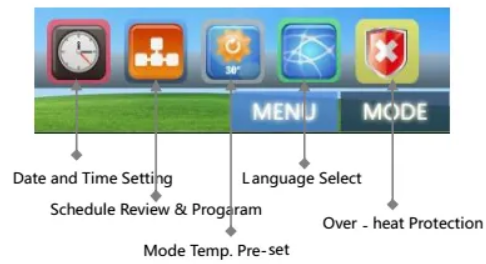

Sub Menu Screen

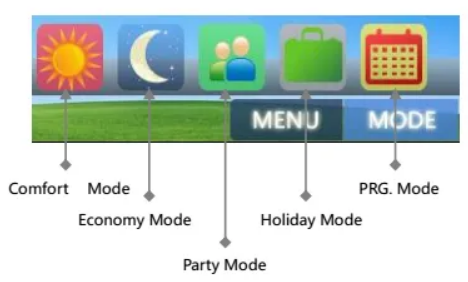

SUB Mode Screen
Products & Services
Programmable Heating Thermostat with Touch Screen and LCD Display thermostat from Alexa It is possible to configure 6 times per day, referred to as events, with corresponding pre-determined temperatures for weekly circulation. Depending on your needs, you can choose between “manual mode” or “period control mode.” For controlling the on/off valve actuator used in water-based systems, the thermostat is advised.
Product parameters
- Setting and showing the room’s temperature
- Operation of a 4.3-inch Colour Touch Screen
- adjustable economy, party, and comfort modes.Controls for programme mode and holiday mode
- 5+1+1 programmable weekly
- Internal and external sensors German, English, French, and Duth
- Date and time display
- Size (H, W, and D): 130, 84, and 45 mm
Product Features
- Operation of 4.3-inch Colour Touch Screen
- A maximum 16A electric heating system
- Comfort Mode and Economy are scalable
- Holiday Mode, Party Mode, and
- Programme Mode Management
- Weekly Programmable 5+1+1
- Choosing Internal and External Sensors
- Choose from four languages: English, French,
- Dutch and German
- Date and Time Indicator
- Temp. Clamping
- Protection from Overheating
- mounting at 86°86mm
Schedule Setting

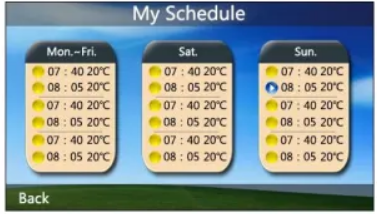

Schedule Review
Press Menus Button, choose, then enter weekly schedule page, review the whole schedule.
Installation
- Turn off power to your heating and cooling system at the circuit breaker.
- Remove your old thermostat from the wall, but leave the wires connected.
- Take a picture of the wiring configuration for reference later.
- Disconnect the wires from the old thermostat and remove the mounting plate from the wall.
- Install the mounting plate for the OEM ME80 Smart Home Wi-Fi Thermostat using the screws provided.
- Connect the wires to the corresponding terminals on the back of the thermostat. Refer to the wiring diagram in the user manual if needed.
- Attach the thermostat to the mounting plate by pressing it firmly until it clicks into place.
- Turn on power to your heating and cooling system at the circuit breaker.
- Follow the instructions in the user manual to connect the thermostat to your Wi-Fi network and download the smartphone app.
- Once the thermostat is connected, you can set up a heating and cooling schedule, adjust temperature settings, and monitor energy usage from the app.
- If you encounter any issues during installation or setup, refer to the troubleshooting section in the user manual or contact OEM customer support for assistance.

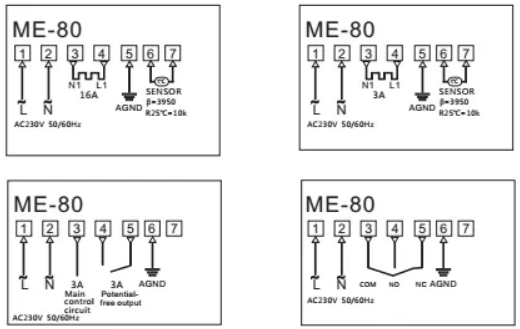

WIRING DIAGRAM
FAQS
Q: What type of heating and cooling systems is the OEM ME80 Smart Home Wi-Fi Thermostat compatible with?
A: The OEM ME80 Smart Home Wi-Fi Thermostat is compatible with most central heating and cooling systems.
Q: Can the OEM ME80 Smart Home Wi-Fi Thermostat be controlled remotely?
A: Yes, the OEM ME80 Smart Home Wi-Fi Thermostat can be controlled remotely via Wi-Fi using a smartphone app or voice commands through a smart home assistant.
Q: Is the OEM ME80 Smart Home Wi-Fi Thermostat programmable?
A: Yes, the OEM ME80 Smart Home Wi-Fi Thermostat is programmable, allowing users to set custom schedules for heating and cooling.
Q: Does the OEM ME80 Smart Home Wi-Fi Thermostat have a touchscreen display?
A: Yes, the OEM ME80 Smart Home Wi-Fi Thermostat has a touchscreen display for easy operation.
Q: What is the temperature range for the OEM ME80 Smart Home Wi-Fi Thermostat?
A: The temperature range for the OEM ME80 Smart Home Wi-Fi Thermostat is 45°F to 90°F (7°C to 32°C).
Q : Can multiple users control the OEM ME80 Smart Home Wi-Fi Thermostat?
A:Yes, multiple users can control the OEM ME80 Smart Home Wi-Fi Thermostat using the smartphone app or smart home assistant.
Q: Does the OEM ME80 Smart Home Wi-Fi Thermostat have a vacation mode?
A: Yes, the OEM ME80 Smart Home Wi-Fi Thermostat has a vacation mode that allows users to set a temporary temperature schedule while they are away.
Q: Does the OEM ME80 Smart Home Wi-Fi Thermostat have a humidity sensor?
A: No, the OEM ME80 Smart Home Wi-Fi Thermostat does not have a built-in humidity sensor.
Q: Can the OEM ME80 Smart Home Wi-Fi Thermostat be used in commercial settings?
A: Yes, the OEM ME80 Smart Home Wi-Fi Thermostat can be used in residential or commercial settings.
Q: Can the OEM ME80 Smart Home Wi-Fi Thermostat be customized with different colored faceplates?
A: Yes, the OEM ME80 Smart Home Wi-Fi Thermostat can be customized with different colored faceplates to match any home decor.
Q: How easy is it to install the OEM ME80 Smart Home Wi-Fi Thermostat?
A: The OEM ME80 Smart Home Wi-Fi Thermostat is easy to install and comes with detailed instructions.
Q: Does the OEM ME80 Smart Home Wi-Fi Thermostat require a C-wire?
A: No, the OEM ME80 Smart Home Wi-Fi Thermostat does not require a C-wire for installation.
Q: Is the OEM ME80 Smart Home Wi-Fi Thermostat Energy Star certified?
A: Yes, the OEM ME80 Smart Home Wi-Fi Thermostat is Energy Star certified for energy efficiency.
Q: What is the warranty period for the OEM ME80 Smart Home Wi-Fi Thermostat?
A: The OEM ME80 Smart Home Wi-Fi Thermostat comes with a 2-year limited warranty.
Q: How can I get customer support for the OEM ME80 Smart Home Wi-Fi Thermostat?
A: You can contact OEM customer support for the ME80 Smart Home Wi-Fi Thermostat via phone, email, or online chat support.
