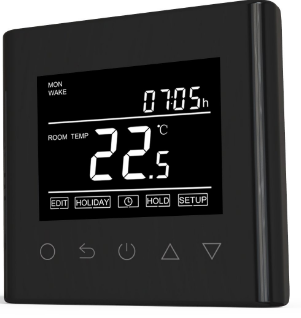

OEM ET-62W WIFI Floor Heating Thermostat

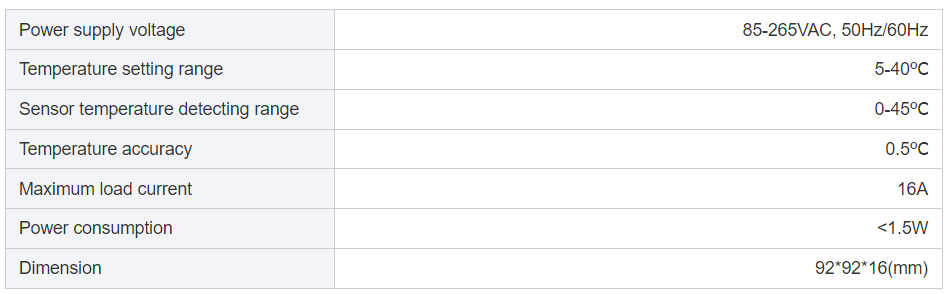

Specification
- Warranty: 2 years
- After-sale Service: Online technical support, Return and Replacement
- Project Solution Capability: graphic design, 3D model design, total solution for project
- Place of Origin: Anhui, China
- Model Number: ET-62W
- Floor Heating Part Type: Floor Heating Thermostats
- Temp. setting range: 5-40℃
- Power voltage: 85-265VAC, 50Hz/60Hz
- Dimension: 96*96*15(mm)
- Power consumption: <1.5W
- Floor Heating Valve: all
- Material: VA/Polycarbonate
- Application: all
- Design Style: Modern
- Brand Name: OEM
- Type: Floor Heating Parts
- Product name: CE approved floor heating thermostat smart wifi heating
- Temp. accuracy: 0.5℃
INTRODUCTION
The OEM ET-62W WIFI Floor Heating Thermostat is a device designed to control the temperature of electric floor heating systems. It has a sleek, modern design and can be controlled remotely via Wi-Fi using a smartphone app. The thermostat is easy to install and can be used with a variety of electric floor heating systems, including underfloor heating mats and cables. It features a large, backlit LCD display that shows the current temperature, as well as the set temperature and other settings.
One of the key features of the ET-62W is its Wi-Fi connectivity, which allows users to control their heating system remotely using the smartphone app. This means that users can adjust the temperature of their floors from anywhere, at any time, making it a convenient option for those who want to save energy and money. Other features of the ET-62W include programmable scheduling, which allows users to set different temperatures for different times of the day, and a manual override function, which allows users to temporarily adjust the temperature without affecting the overall programming.
WHAT IS IN THE BOX
- Thermostat
- Screws
- External Sensor
- User Manual
Features
- Voltage:85VAC-265VAC
- Low-temperature protection, can be used for water heating control
- Week programmable with 5+1+1 easy operation.
- High-temperature protection, preventing the floor from damage.
- ℃ or °F, key-lock function
- Key-lock function to avoid misoperation
- Adaptive start function

Application
Wi-Fi version support Alexa and Google home: try this “Alexa, please turn on my living room thermostat to 85°F”.

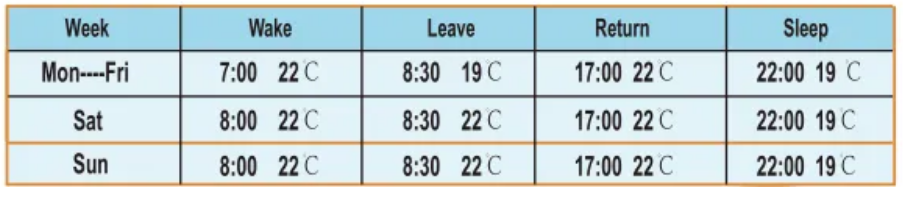

Period Parameter Table
HOW TO WORK
Installation:
The thermostat must be installed by a qualified electrician or HVAC technician, following the manufacturer’s instructions.
Connect to WIFI:
The thermostat needs to be connected to your home WIFI network. To do this, follow the manufacturer’s instructions and use the thermostat’s touchscreen interface to select your WIFI network and enter the password.
Programming:
Use the touchscreen to program your desired heating schedule. The thermostat allows you to set different temperatures for different times of the day, and you can customize the schedule to fit your daily routine.
Control remotely:
Once your thermostat is connected to WIFI, you can control it remotely using the OEM ET-62W mobile app, which is available for both iOS and Android devices. This app allows you to adjust the temperature and change the heating schedule from anywhere with an internet connection.
Sensors:
The thermostat uses floor and air sensors to measure the temperature and adjust the heating accordingly. Make sure these sensors are installed correctly and in the optimal locations for accurate temperature readings.
Manual override:
The thermostat also allows for manual override of the programmed schedule, so you can adjust the temperature at any time if needed.

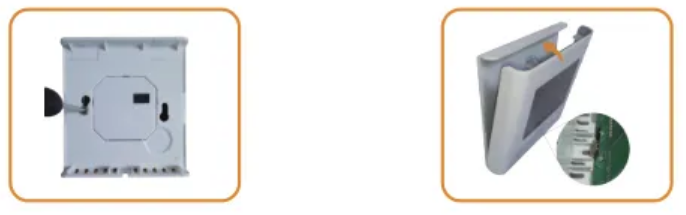

Installation
- Loosen fixing screw on the base of the thermostat and separate front panel from back section.
- Wire the back section as shown in the wiring diagram.
- Fix the back section to wall box with screws provided.
- Replace front panel whilst ensuring the pins engage properly in the circuit board socket.
FAQS
Q: What is the OEM ET-62W WIFI Floor Heating Thermostat?
A: The OEM ET-62W WIFI Floor Heating Thermostat is a programmable thermostat designed to control underfloor heating systems.
Q: What kind of underfloor heating systems is the OEM ET-62W WIFI Floor Heating Thermostat compatible with?
A: The OEM ET-62W WIFI Floor Heating Thermostat is compatible with most electric and hydronic underfloor heating systems.
Q: Does the OEM ET-62W WIFI Floor Heating Thermostat support WIFI connectivity?
A: Yes, the OEM ET-62W WIFI Floor Heating Thermostat supports WIFI connectivity, allowing you to control your thermostat from anywhere using a smartphone app.
Q: What is the voltage range supported by the OEM ET-62W WIFI Floor Heating Thermostat?
A: The OEM ET-62W WIFI Floor Heating Thermostat supports a voltage range of 100-240VAC.
Q: Is the OEM ET-62W WIFI Floor Heating Thermostat easy to install?
A: Yes, the OEM ET-62W WIFI Floor Heating Thermostat is designed for easy installation and comes with detailed instructions.
Q: Does the OEM ET-62W WIFI Floor Heating Thermostat support voice control?
A: Yes, the OEM ET-62W WIFI Floor Heating Thermostat supports voice control through Amazon Alexa and Google Assistant.
Q: Does the OEM ET-62W WIFI Floor Heating Thermostat have a touchscreen display?
A: Yes, the OEM ET-62W WIFI Floor Heating Thermostat has a large, easy-to-read touchscreen display.
Q: Can I program the OEM ET-62W WIFI Floor Heating Thermostat to automatically adjust the temperature based on my schedule?
A: Yes, the OEM ET-62W WIFI Floor Heating Thermostat is fully programmable and can be set to adjust the temperature based on your schedule.
Q: Is the OEM ET-62W WIFI Floor Heating Thermostat compatible with multiple users?
A: Yes, the OEM ET-62W WIFI Floor Heating Thermostat supports multiple user accounts, so everyone in your household can control the thermostat from their own devices.
Q: Is the OEM ET-62W WIFI Floor Heating Thermostat compatible with third-party home automation systems?
A: Yes, the OEM ET-62W WIFI Floor Heating Thermostat is compatible with most third-party home automation systems, including SmartThings, IFTTT, and HomeKit.
Q: How long is the OEM ET-62W Electric Radiator Thermostat’s guarantee good for?
A: The one-year guarantee that comes with the OEM ET-62W Electric Radiator Thermostat covers any flaws or faults that might develop during routine use.
A: Google Assistant and Amazon Alexa both support the Menred OEM ET-62W Thermostat, correct?
A: The OEM ET-62W Heating Thermostat is voice-command capable and works with both Google Assistant and Amazon Alexa.
Q: How precise are OEM ET-62W thermostats for heating?
A: Your thermostat is accurate and effective enough if the temperature is the same on the thermometer and the thermostat.
Q: Why won’t my OEM ET-62W heating thermostat work?
A: If your thermostat won’t turn on, try changing the batteries, activating it, ensuring that the temperature is set correctly, and checking the power source and airflow.
Q: How can I check the functionality of my heating OEM ET-62W thermostat?
A: According to A, as air passes through the ducting, you might hear a soft clicking sound. To determine the air’s temperature, you might feel a vent. Your thermostat might need to be changed if nothing happens after making the adjustments for a minute or two.
