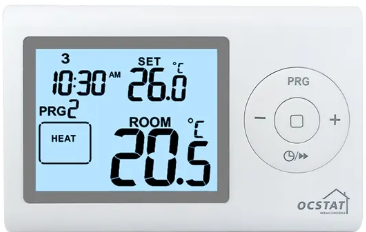

OCSTAT ST2402 Programmable Digital Room Thermostat User Manual

OCSTAT ST2402 Programmable Digital RoomC

Specification

• Warranty: 1 Year
• Material: Anti-flammable PC +ABS, ABS+PC
• Place of Origin: Guangdong, China
• Model Number: ST2402
• Screen: Digital LCD
• Power: 2 x AAA size battery
• After-sale Service: Online technical support, Return and Replacement
• Project Solution Capability: graphic design
• Design Style: EUROPEAN
• Brand Name: OEM/OCSTAT
• Type: Floor Heating Systems
• Backlight: White

Introduction

The OCSTAT ST2402 is a cutting-edge programmable digital heating room thermostat designed to provide efficient and precise control over the temperature of a room or space. It is equipped with advanced features and functionality to enhance comfort and energy efficiency in residential and commercial environments. With its programmable capabilities, the OCSTAT ST2402 allows users to set specific temperature schedules throughout the day, ensuring optimal comfort at different times. This programmability enables users to tailor the heating system to their preferences and schedule, maximizing energy savings by automatically adjusting the temperature when needed. The thermostat features a user-friendly interface, typically consisting of a digital display and intuitive buttons, allowing for easy programming and temperature adjustments. The clear display provides real-time temperature readings, making it convenient to monitor and maintain the desired temperature.

One of the notable advantages of the OCSTAT ST2402 is its compatibility with various heating systems, including central heating, underfloor heating, and electric heating. This versatility makes it a suitable choice for a wide range of applications, from single-family homes to commercial buildings. Energy efficiency is a key focus of the OCSTAT ST2402. It incorporates features such as temperature calibration, adaptive start, and open window detection. Temperature calibration ensures the thermostat accurately reflects the actual room temperature, while adaptive start calculates the optimal start time for the heating system to reach the desired temperature at a specific time. Open window detection helps prevent energy waste by temporarily disabling the heating system if a sudden drop in temperature is detected due to an open window or door.

The OCSTAT ST2402 offers additional features like vacation mode, manual override, and frost protection. Vacation mode allows users to set a lower temperature for an extended period when they are away, conserving energy while maintaining a minimum level of heat. Manual override enables immediate temperature adjustments without interrupting the programmed schedule. Frost protection prevents the temperature from dropping below a certain level, preventing freezing and potential damage to pipes and other sensitive equipment. The OCSTAT ST2402 is a highly functional and adaptable programmable digital heating room thermostat. Its advanced features, energy-saving capabilities, and compatibility with various heating systems make it a reliable choice for controlling and optimizing the temperature in residential and commercial spaces.

What Is In The Box

• Thermostat
• User Manual
• Screws
• External Sensor

Installation

Installing the OCSTAT ST2402 Programmable Digital Heating Room Thermostat is typically a straightforward process. Please note that these instructions are general guidelines, and it’s always recommended to refer to the manufacturer’s specific installation manual for detailed instructions. Here’s a basic overview of the installation process:

Turn off the power: Before starting the installation, turn off the power to your heating system at the circuit breaker or fuse box to ensure safety.

Remove the existing thermostat: If you have an existing thermostat, carefully remove it from the wall by unscrewing any mounting screws and gently disconnecting the wires. Take note of the wire connections and labeling for reference.

Prepare the wall plate: The OCSTAT ST2402 typically comes with a wall plate. Attach the wall plate to the wall using screws and anchors, if necessary, ensuring it is level and securely mounted.

Connect the wires: Identify the corresponding wires from your heating system and connect them to the appropriate terminals on the back of the thermostat. The common wire is usually labeled “C,” the heating wire as “H,” and so on. Follow the provided instructions or refer to the thermostat’s manual for precise wiring information.

Mount the thermostat: Carefully align the thermostat with the wall plate and snap it into place. Ensure it is securely attached and level.

Restore power: Turn on the power to your heating system at the circuit breaker or fuse box.

Set up the thermostat: Follow the manufacturer’s instructions to set up the thermostat, including configuring the date, time, temperature units, and any desired programming schedules. This typically involves navigating through the menu options using the thermostat’s buttons or touchscreen.

Test the thermostat: Verify that the thermostat is functioning correctly by adjusting the temperature settings and confirming that the heating system responds accordingly.

FAQS

Q1: How many temperature schedules can I program with the OCSTAT ST2402?
A: The OCSTAT ST2402 allows you to program up to 6 temperature schedules per day.

Q2: Is the OCSTAT ST2402 compatible with both electric and gas heating systems?
A: Yes, the OCSTAT ST2402 is compatible with both electric and gas heating systems.

Q3: Can I set different temperature schedules for weekdays and weekends?
A: Yes, the thermostat offers separate programming options for weekdays and weekends.

Q4: Does the OCSTAT ST2402 have a backlight for the display?
A: Yes, the OCSTAT ST2402 features a backlight for easy viewing in low-light conditions.

Q5: How does the adaptive start feature work?
A: The adaptive start feature calculates the optimal start time for your heating system to reach the desired temperature at a specific programmed time.

Q6: Does the OCSTAT ST2402 have a vacation mode?
A: Yes, the thermostat has a vacation mode that allows you to set a lower temperature for an extended period when you are away.

Q7: Can I manually override the programmed temperature settings?
A: Yes, the OCSTAT ST2402 allows for manual temperature adjustments without interrupting the programmed schedule.

Q8: Does the thermostat have an open window detection feature?
A: Yes, the OCSTAT ST2402 has an open window detection feature that temporarily disables the heating system if a sudden drop in temperature is detected due to an open window or door.

Q9: Is the OCSTAT ST2402 battery-powered or does it require a wired connection?
A: The OCSTAT ST2402 is typically wired directly to your heating system and does not rely on batteries.

Q10: Can the thermostat be used for underfloor heating systems?
A: Yes, the OCSTAT ST2402 is compatible with underfloor heating systems.

Q11: What is the purpose of the frost protection feature?
A: The frost protection feature ensures that the temperature does not drop below a certain level, preventing freezing and potential damage to pipes and equipment.

Q12: Is the OCSTAT ST2402 Wi-Fi enabled?
A: No, the OCSTAT ST2402 does not have Wi-Fi connectivity.

Q13: Can I adjust the temperature calibration on the thermostat?
A: Yes, the OCSTAT ST2402 allows you to calibrate the temperature to ensure accurate readings.

Q14: How many temperature sensors does the OCSTAT ST2402 have?
A: The OCSTAT ST2402 typically has a built-in temperature sensor for accurate temperature readings.

Q15: Can I program the thermostat remotely using a smartphone app?
A: No, the OCSTAT ST2402 does not have remote programming capabilities and requires manual programming on the device itself.
