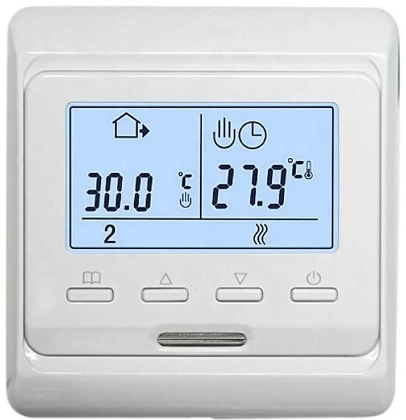

OCSTAT OCTK666E Programmable Thermostat

OCSTAT OCTK666E Programmable Thermostat PRO -

Specification

Model No.: OCTK666E
Switchable Voltage:      AC 230V(AC 110V/AC 24V available)
Switchable Current: 16 A /3A
Programmability: Programmable
Temperature Range (°C): 0°C-40°C in 0.1°C
Control Temp.Range (°C): 5°C-35°C in 0.5°C
Temp.Meas.Accuracy: ±1°C
Temperature sensing element: NTC
Protective Housing: IP20
Housing Material: Self-extinguishing PC
Dimention: 86 x 86 x 43 mm
Packaging Details:
Neutral carton packaging: Each unit packed in retail box
Weight: 349g/pcs, 64pcs/carton
Inner tray of retail box: 85mm*96mm*35mm
Retail box size: 95mm*100mm*65mm
Carton size: 430mm*390mm*290mm

INTRODUCTION

The OCSTAT OCTK666E Programmable Thermostat is an advanced device designed to regulate and control the temperature of heating, ventilation, and air conditioning (HVAC) systems in residential and commercial settings. It offers programmable features that allow users to set customized temperature schedules to optimize comfort and energy efficiency. With its user-friendly interface and intuitive controls, the OCSTAT OCTK666E makes it easy for users to adjust and manage their indoor climate. The thermostat typically features a digital display that shows the current temperature, time, and programming settings, providing convenient access to all relevant information.

One of the key advantages of the OCSTAT OCTK666E is its programmability. Users can set different temperature levels throughout the day, enabling them to create specific heating or cooling profiles to suit their preferences. For example, they can schedule the thermostat to lower the temperature during the night when they’re asleep, and then raise it before waking up to ensure a comfortable environment. Energy-saving features are often incorporated into the OCSTAT OCTK666E as well. These can include options such as “vacation mode” or “away mode,” where the thermostat will automatically adjust the temperature to conserve energy when the occupants are not at home or in a particular room.

The OCSTAT OCTK666E is typically compatible with a wide range of HVAC systems, including central air conditioning, heat pumps, and electric or gas furnaces. It is designed to connect with the existing wiring infrastructure of the building and can replace older, less advanced thermostats without significant modifications. The OCSTAT OCTK666E Programmable Thermostat offers an efficient and convenient solution for temperature control, providing users with the ability to customize their indoor environment while optimizing energy usage and reducing utility costs.

What Is In The Box

  • Thermostat
  • User Manual
  • Screws
  • External Sensor
Weekly Programmable Thermostat with LCD Screen
Weekly Circulation, it is possible to set 6 periods called events each day with different temperatures,also you can select “manual mode” or “temporary control mode” according to your individual requirements.The thermostat is recommended for the control of electric heating devices or on / off valve actuator uses in water-based heating systems.

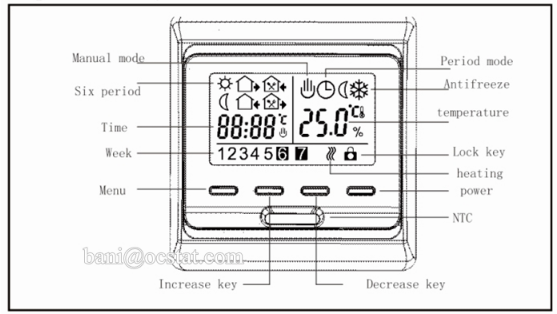

Explanation of symbols

OCSTAT OCTK666E Programmable Thermostat 1

DimensionOCSTAT OCTK666E Programmable Thermostat 2

Programming

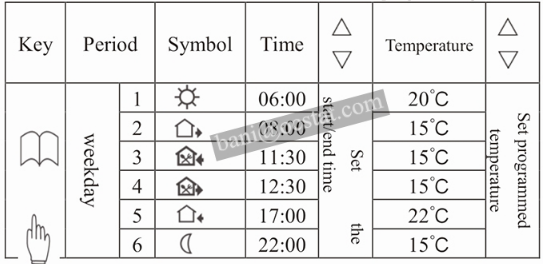

Period programming

OCSTAT OCTK666E Programmable Thermostat 3

Display symbols

  • OCSTAT OCTK666E Programmable Thermostat 4Manual mode
  • OCSTAT OCTK666E Programmable Thermostat 5Period control mode
  • OCSTAT OCTK666E Programmable Thermostat 6Heating
  • OCSTAT OCTK666E Programmable Thermostat 7Getting up, the first period
  • OCSTAT OCTK666E Programmable Thermostat 8Out in the morning, the second period
  • OCSTAT OCTK666E Programmable Thermostat 9Going home at noon, the third period
  • OCSTAT OCTK666E Programmable Thermostat 11Out in the afternoon, the fourth period
  • OCSTAT OCTK666E Programmable Thermostat 10Going home in the evening, the fifth period
  • OCSTAT OCTK666E Programmable Thermostat 12Sleeping at night, the sixth period

FAQS

Q: How do I install the OCSTAT OCTK666E Programmable Thermostat?
Installation instructions are typically provided in the product manual. It involves connecting the thermostat to your HVAC system’s wiring and mounting it on the wall. If you’re unsure, it’s recommended to consult a professional.

Q: Is the OCSTAT OCTK666E compatible with all HVAC systems?
The OCSTAT OCTK666E is compatible with a wide range of HVAC systems, including central air conditioning, heat pumps, and electric or gas furnaces. However, it’s always a good idea to check the product specifications or consult the manufacturer to ensure compatibility with your specific system.

Q: How many temperature programs can I set on the OCSTAT OCTK666E?
The OCSTAT OCTK666E typically allows for multiple temperature programs. The exact number of programs can vary, but it often offers the ability to set separate temperature schedules for weekdays and weekends.

Q: Can I program different temperature settings for different times of the day?
Yes, the OCSTAT OCTK666E enables you to set different temperature levels for different times of the day. This allows you to create customized heating or cooling profiles that suit your preferences and schedule.

Q: Is there a vacation mode on the OCSTAT OCTK666E?
Many programmable thermostats, including the OCSTAT OCTK666E, offer a vacation mode. This feature allows you to set the thermostat to an energy-saving temperature level while you’re away from home for an extended period.

Q: Does the OCSTAT OCTK666E have a backlight for the display?
It depends on the specific model and features of the OCSTAT OCTK666E. Some models may include a backlight for the display, making it easier to read in low-light conditions.

Q: Can I control the OCSTAT OCTK666E remotely?
A: The OCSTAT OCTK666E may offer remote control capabilities, depending on its features and connectivity options. Some models can be controlled through smartphone apps or integrate with home automation systems.

Q: Does the OCSTAT OCTK666E have a battery backup?
A: Battery backup functionality can vary among thermostat models. Some OCSTAT OCTK666E models may include a battery backup, allowing the thermostat to retain programmed settings during power outages.

Q: Is the OCSTAT OCTK666E Energy Star certified?
A: The Energy Star certification can vary depending on the specific model and version of the OCSTAT OCTK666E. It’s best to check the product specifications or consult the manufacturer to determine if a particular model is Energy Star certified.

Q: Can I override the programmed settings temporarily?
A: Yes, most programmable thermostats, including the OCSTAT OCTK666E, allow for temporary temperature adjustments. This feature is useful if you want to temporarily change the temperature without altering the programmed schedule.

Q: Does the OCSTAT OCTK666E offer humidity control?
A: Humidity control features may vary among thermostat models. While some versions of the OCSTAT OCTK666E may include humidity control, others may not. Check the product specifications or consult the manufacturer for details on the specific model you are interested in.

Q: Can I view energy usage reports with the OCSTAT OCTK666E?
A: Energy usage reporting features can vary among thermostat models. Some versions of the OCSTAT OCTK666E may offer energy usage reports, allowing you to monitor and optimize your energy consumption. Confirm the availability of this feature in the product specifications or user manual.
