NHY LT-1002 Room Thermostat

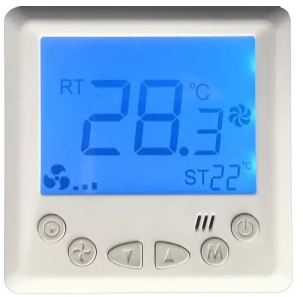

NHY LT-1002 Room Thermostat pro

Specification

  • Warranty: 2 years
  • After-sale Service: Online technical support, Free spare parts, Return and Replacement
  • Material: Anti-flammable PC +ABS
  • Project Solution Capability: graphic design, total solution for projects
  • Application: Office Building
  • Design Style: Modern
  • Place of Origin: Taiwan, China
  • Brand Name: NHY
  • Model Number: LT 1002
  • Type: Floor Heating Systems
  • Product name: FCU controller
  • Color: White
  • Power supply: 90~250V
  • communication method: Modbus
  • Function: Hotel key card

Introduction

The NHY LT-1002 Room Thermostat is a sophisticated and advanced device designed to regulate the temperature of a room or living space. It is commonly used in residential and commercial buildings to control heating, ventilation, and air conditioning (HVAC) systems. The LT-1002 offers a range of features and functions that provide precise temperature control, energy efficiency, and user convenience.

One of the key features of the NHY LT-1002 is its programmability. It allows users to set specific temperature levels and schedules according to their preferences. This means that you can program the thermostat to automatically adjust the temperature at different times of the day or week, ensuring optimal comfort while minimizing energy consumption. By efficiently managing the temperature, the LT-1002 helps reduce energy costs and promotes eco-friendly practices.

The thermostat is equipped with a clear and easy-to-read display, providing users with real-time information about the current temperature, programmed settings, and other relevant data. It also offers intuitive controls, allowing users to make adjustments with ease. The NHY LT-1002 Room Thermostat is compatible with a wide range of HVAC systems, including furnaces, boilers, heat pumps, and air conditioners. It can be connected to these systems either wirelessly or through a wired connection, depending on the specific installation requirements.

Additionally, the LT-1002 may come with additional features such as humidity control, vacation mode, and adaptive learning capabilities. These features enhance the overall functionality of the thermostat and provide a more customized and comfortable experience for users. The NHY LT-1002 Room Thermostat is a technologically advanced device that offers precise temperature control, energy efficiency, and user-friendly features. It is a reliable choice for optimizing the comfort of any living space while promoting energy conservation

What Is In The Box

  • Thermostat
  • User Manual
  • Screws
  • External Sensor

MAIN FUNCTION
Heating/Cooling/Fan only mode With manual 3 fan speed adjustment and Automatic speed regulating Multi-option setting function Temperature deviation correction function (offset adjustment) With LCD- backlight With EEP-memory function Communication function: Modbus (Option)

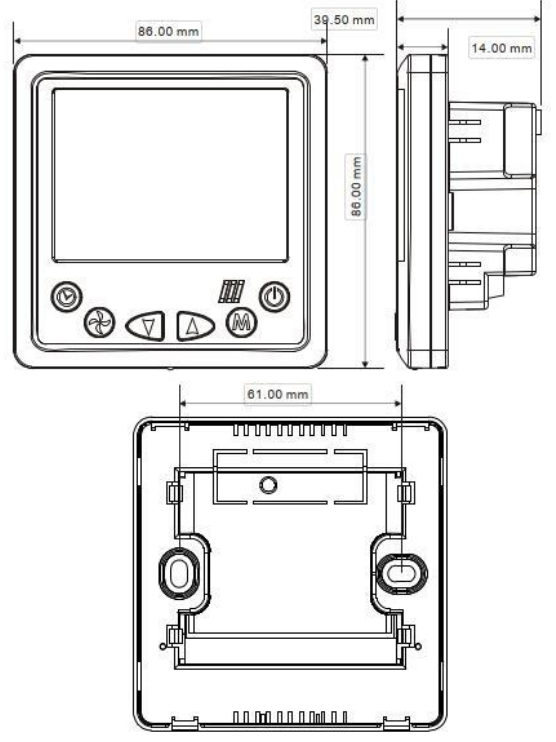

DimensionNHY LT-1002 Room Thermostat-1

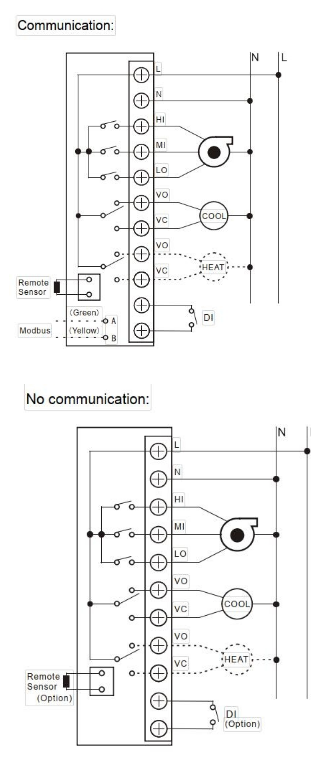

WiringNHY LT-1002 Room Thermostat-2

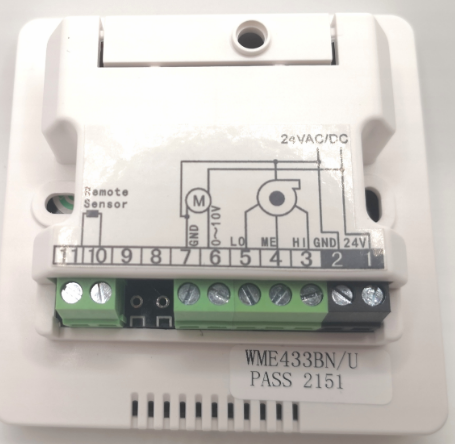

Back Wiring DiagramNHY LT-1002 Room Thermostat-3

Usage

To use the NHY LT-1002 Room Thermostat, follow these general steps:

  • Power the thermostat: Insert two AA batteries into the thermostat to power it up. Ensure the correct polarity when inserting the batteries.
  • Mount the thermostat: Choose an appropriate location for mounting the thermostat on an interior wall. Make sure it is away from direct sunlight, drafts, and heat sources for accurate temperature readings.
  • Connect the wiring: Follow the manufacturer’s instructions to connect the thermostat to your HVAC system. This typically involves connecting the appropriate wires to the corresponding terminals on the thermostat.
  • Set the temperature: Use the thermostat controls to set the desired temperature. You can typically adjust the temperature using up and down buttons or a dial.
  • Program temperature schedules: If desired, you can program specific temperature schedules for different times of the day or week. Refer to the thermostat’s user manual for instructions on how to program temperature settings. This feature allows for automatic temperature adjustments, providing comfort and energy efficiency.
  • Adjust other settings: Explore the thermostat’s menu options to customize additional settings such as temperature units (Celsius or Fahrenheit), backlight duration, and system mode (heating, cooling, or auto).
  • Monitor and make adjustments: Keep an eye on the thermostat’s display to monitor the current temperature and system status. Make any necessary adjustments to the temperature or settings as needed.
  • Replace batteries (if applicable): Over time, the thermostat batteries may need to be replaced. When the battery indicator on the thermostat shows a low battery, replace the batteries following the manufacturer’s instructions.
  • Perform regular maintenance: Ensure the thermostat and HVAC system are clean and free from dust or debris. Check and replace HVAC system filters as recommended to maintain optimal performance.

FAQS

Q: What is the power source for the NHY LT-1002 Room Thermostat?
A: The NHY LT-1002 Room Thermostat is typically powered by batteries. It often requires two AA batteries to operate.

Q: Can the NHY LT-1002 thermostat be connected to a Wi-Fi network?
A: No, the NHY LT-1002 Room Thermostat does not have built-in Wi-Fi capabilities. It does not support a connection to a Wi-Fi network.

Q: How many temperature programming settings can be stored in the NHY LT-1002 thermostat?
A: The NHY LT-1002 Room Thermostat can typically store multiple temperature programming settings. The exact number may vary depending on the specific model and firmware version.

Q: Does the NHY LT-1002 thermostat have a touchscreen display?
A:  No, the NHY LT-1002 Room Thermostat usually does not feature a touchscreen display. It usually comes with a standard LCD display that provides information and settings.

Q: Can the NHY LT-1002 thermostat be controlled remotely?
A: No, the NHY LT-1002 Room Thermostat does not have remote control capabilities. It operates locally and requires direct user interaction for adjustments.

Q: Does the NHY LT-1002 thermostat have a backlight for better visibility in low light conditions?
A: Yes, many models of the NHY LT-1002 Room Thermostat come with a backlight feature. This allows for better visibility of the display in low-light conditions.

Q: Is the NHY LT-1002 thermostat compatible with multi-stage HVAC systems?
A: Yes, the NHY LT-1002 Room Thermostat is typically compatible with multi-stage HVAC systems. It can effectively control systems with multiple heating or cooling stages.

Q: Can the NHY LT-1002 thermostat display both Celsius and Fahrenheit temperature units?
A: Yes, the NHY LT-1002 Room Thermostat often allows users to select their preferred temperature unit, either Celsius or Fahrenheit, for display.

Q: Does the NHY LT-1002 thermostat have a vacation mode?
A: It depends on the specific model and firmware version. Some versions of the NHY LT-1002 Room Thermostat may include a vacation mode feature, which allows users to set a different temperature schedule when they are away.

Q: Can the NHY LT-1002 thermostat learn and adapt to the user’s temperature preferences over time?
A:  No, the NHY LT-1002 Room Thermostat typically does not have adaptive learning capabilities. It relies on the programmed settings and user input for temperature control.

Q: What is the voltage range supported by the NHY LT-1002 thermostat?
A: The NHY LT-1002 Room Thermostat usually supports a wide voltage range, often ranging from 24V to 240V, depending on the specific model and installation requirements.

Q: Can the NHY LT-1002 thermostat control both heating and cooling systems?
A: Yes, the NHY LT-1002 Room Thermostat is commonly used to control both heating and cooling systems. It can switch between heating and cooling modes based on the user’s temperature settings.

Q: Does the NHY LT-1002 thermostat have a filter change reminder?
A: It depends on the specific model and firmware version. Some versions of the NHY LT-1002 Room Thermostat may include a filter change reminder feature to help maintain the HVAC system’s efficiency.

Q: Is the NHY LT-1002 thermostat compatible with voice control systems like Amazon Alexa or Google Assistant?
A: No, the NHY LT-1002 Room Thermostat does not usually have built-in compatibility with voice

Q: Does the NHY LT-1002 thermostat have a feature to display the current indoor humidity level?
A: No, the NHY LT-1002 Room Thermostat typically does not have a built-in humidity sensor or a feature to display the current indoor humidity level. It primarily focuses on temperature control and does not provide direct humidity monitoring.
