Neomitis TMR7 Digital Programmable Thermostat Product Specification Guide

Neomitis TMR7 Digital Programmable Thermostat

Benefits

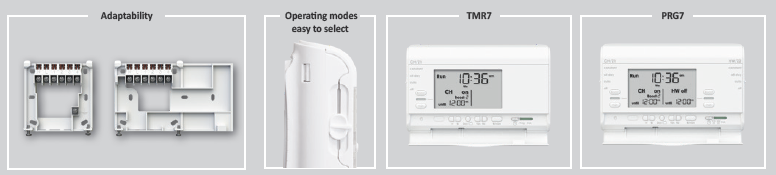

• Quick and easy to install, universal mounting: fitting on most existing wall plates on the market.
• One channel output TMR7, two channel outputs PRG7.
• Suitable for all boiler systems (both Gravity and Pumped).
• Large, easy to read display with white customisable backlight feature.
• Easy slide controls for programming and mode selection.
• Flexible programming and easy modification to combine comfort and savings.
• Boost, Auto summer/winter changeover and Advance functions for convenient setting.
• Wired version, ideal for new build.
• Service interval capable.

In a few words …
This digital timer/programmer has been designed for easy operation and is intended to make your life easier and help you save energy and money. This digital timer/programmer is just one of a range products that can provide the right solution for programming your heating system in an easy and efficient way, whether it is a new installation or an improvement to an existing one. Combine with an RT0-RF thermostat for maximum comfort and energy efficiency.

Features

TMR7: Wired digital timer:

• Large backlit display.
• Single channel: CH/Z1.
• Boost function for 1,2 or 3 hours: temporary overriding.
• Boost and Review function directly accessible.
• 7 day programmable.
• 2 or 3 ON periods per days.
• Service interval capable.
• Holiday function.
• Auto summer/winter changeover

PRG7: Wired digital programmer:

• Large backlit display.
• Twin channels: CH/Z1 and HW/Z2.
• Boost function for 1,2 or 3 hours: temporary overriding.
• Boost and Review function directly accessible.
• 7 day programmable.
• 2 or 3 ON periods per days.
• Service interval capable.
• Holiday function.
• Gravity mode integrated.
• Auto summer/winter changeover.

Technical specifications

• White plastic housing RAL 9016.
• 1 integrated batterie supplied.
• Wall mounting plate supplied.
• Power supply: 230V~ 50Hz.
• Switch action: 2 x SPDT.
• Switch rating: 3(2)A.

Environment

• Moisture and dust ingress to IP30.
• Operating humidity: 20% to 80%, 90% non-condensing.
• Operating ambient temperature: 0°C to +50°C.
• Storage ambient temperature: -20°C to +60°C.
• Double insulation.
