Neomitis RT7OT Wireless Smart Digital Room Thermostats Product Specification Guide

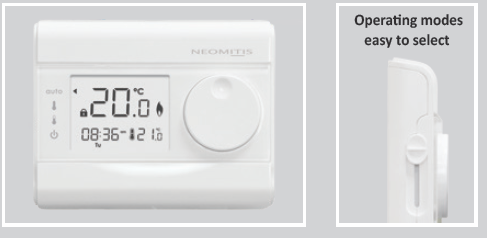

Neomitis RT7OT Wireless Smart Digital Room Thermostats

Benefits

• Standard boiler control using either normal or OT boiler connections
• Advanced energy saving features for Domestic Hot
• Water (DHW) or OT boiler management
• Opentherm Diagnostic aid
• Dual optimisation feature
• Automation: flexible programming
• Load compensation
• Operating modes: Auto, Comfort, Eco, Heating on
• Standby with frost protection.
• Quick and easy to install.
• Suitable for all heating applications.
• Large and easy to understand display.
• Backlit display.
• Easy to turn rotary control.
• Boost mode for immediate comfort.
• Energy savings from PID control.
• Automatic summer/winter change over.
• 3 years warranty.
• Program lock capable.

In a few words …

• This digital room thermostat is Opentherm compatible and has been designed for easy operation whilst making your life easier by helping you save energy and money.
• The dual optimisation feature allows you to optimise your programming by prioritising your comfort or energy savings.
• OpenTherm technology gives you bi-directional communication between a boiler and thermostat.
• The thermostat modulates boiler power to achieve maximum efficiency and comfort, it will automatically detect OT+ protocols both for Central Heating and DHW temperature control and communicate boiler error codes within its display. The slide control operation and simple programming method means that everyone can set their own convenient schedule. Having the ability to customise each day of the week allows for greater efficiency savings.
• This digital thermostat is just one of a range of products that can provide the right solution for controlling your heating system in an easy and efficient way, whether it is a new installation or an improvement to an existing one.

Boiler Plus compliant features

Automation:

•  Single day or multiday programming.
•  Programmable comfort periods.

Dual optimisation:

• OPTI ECO or OPTI COMFORT, we design smart products to make your life easier. Optimise your programming by favouring comfort or savings: Depending on various parameters: room inertia, ambient temperature, desired temperature, the thermostat calculates and optimizes the programming for each heating period whether set to Comfort or Savings (Eco):
• In OPTI ECO mode the thermostat’s inbuilt algorithm optimises in order to guarantee maximum energy savings throughout the ECO programme. In this mode, a slight drop in the temperature level at the beginning and end of the ECO period is allowed to maximise energy savings.
• In OPTI COMFORT mode the processor within the device starts the boiler operation at the optimum time to achieve the set point temperature at the start of the occupancy period without sacrificing comfort. The thermostat’s inbuilt algorithm optimises in order to guarantee maximum energy savings throughout the COMFORT programme.

Load compensation:
The device measures the gap between the room temperature is and setpoint to modulate the boiler so that it only uses as much fuel as necessary to close the gap.

Features

• White backlit display.
• Room temperature control.
• Operating modes: Auto, Comfort, Eco, Heating on Standby with frost protection.
• Boost function for 1 hour: temporary Comfort temperature.
• Automatic summer/winter change over.
• Programme lock.
• Service interval function.

Technical specifications

• Power supply: 2 alkaline 1.5 V AA (LR6) batteries.
• Relay outputs: 5(2)A
• Rated impulse voltage: 4000V.
• Micro disconnection: Type 1B.
• Pollution degree: 2.
• Automatic action: 100,000 cycles.
• Class II.

Note: It is recommended to replace the batteries annually.

Environment

•  Operation temperature: 0°C to +40°C.
•  Manual temperature setting range: from +5°C to +30°C.
•  Storage temperature: from -10°C to +60°C.
•  Humidity: 80% at +25°C (without condensation)
•  Protection rating: IP30.
