Neomitis Myneo Stat Wireless Programmable Thermostat Product Specification Guide

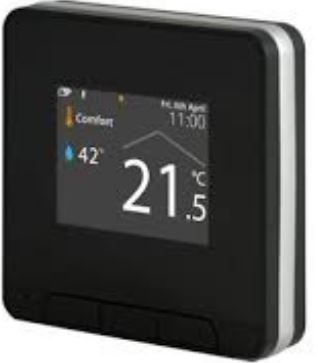

Neomitis Myneo Stat Wireless Programmable Thermostat

Benefits

• Directly connectable to the internet through your internet router without the use of any other accessories.
• Can be remotely controlled by your smartphone, tablet or computer and by voice with the MYNEOMITIS free application.
• Full-colour touch screen with an easy-to-read and customizable display.
• Compact and modern design with supplied table stand, plug and USB cable for power supply.
• Versatile: control of electric or hydraulic systems(radiators / underfloor heating) and can operate in heating or cooling modes, also completable with heat pumps.
• Auto-adaptive: automatic selection of the control type according to the environment.
• Innovative occupancy detection.
• Auto-programmable with dual optimization feature.
• Easy to install and set up.
• Measured humidity rate.
• EcoSens® innovation pack, comfort, performance and energy savings (see catalog pages 10 and 11).

In a few words …

Myneo Stat includes a concentration of technologies that are designed for your comfort and to decrease your energy consumption whilst making your life easier. Myneo Stat allows you to directly connect to the Internet through your Internet router, without the involvement of any other accessories, the Myneo  Stat can be remotely controlled by your smartphone, tablet, computer or by voice thanks to the MYNEOMITIS free app. Its full colour touch screen is advanced, intuitive, easy to use and can adapt to all user profiles.
Thanks to the auto-programming feature, Myneo Stat will automatically adapt to your lifestyle by forecasting your comfort needs and saving you money. The duel optimization feature allows you to optimise your programming by favoring your comfort or savings.
In new builds or renovations, Myneo Stat is recommended for both private and rented accommodations thanks to occupancy detection and lockable features.

Easy to use

3 large buttons with markings for intuitive control: – and + buttons for setting the setpoint temperature. Mode button for choosing the operating mode of the installation.

Features

Selection of the controlled system:

• Energy type: Hydraulic, Electric…
• Heat emitter type: underfloor heating, radiator…
• Control type: control by ambient temperature and/or temperature limitation.

Selection of the controller type:

• Manual: On/Off or Proportional Integral Derivative controller.
• Automatic: self-diagnosis and choice of regulation type depending on the environment.

EcoSens® innovation pack, energy savings (see catalogue pages 10 and 11) in addition to the pack + features:

• Occupancy detection.
• Automatic programming with self-learning process.
• Dual optimisation feature.
• 7 day and daily programme: 10 preset and customisable programmes.
• Humidity measurement in the room where the thermostat is installed.
• Operating modes: Auto, Comfort, Comfort+, Eco, Frost protection, Boost and programmable holidays.
• Heating/cooling mode management: automatic setting and adjustment of settings temperatures.
• 230V connections / Voltage free connections.
• Permanent backup of settings.

1-channel radio receiver supplied
Compact and discreet.
Up to 10 receivers can be controlled via 1 Myneo Stat Wireless.

• 2 installation possibilities: Semi flush mounting or wall mounting.
• Optional: possibility to buy 1-channel radio receiver in addition.

Technical specifications

• Operating without battery, thermostat power supply by external sector
• adapter: 220-240 VAC +/-10% /50HZ / 0,3A max.
• Mains supply receiver: 230V AC + 10 / -15%, 50 Hz.
• Thermostat output: 5VDC+/-5%, 1,5A, USB type A, protected against short circuit.
• Potential-free relay receiver output 10A between terminals 1 and 2 (on resistive load) 230V.
• Radio frequency: 869.85 Mhz.
• Wi-FI: 2.4GHz

Type of control:

• ON/OFF.
• Proportional Integral Derivative adapted to the transmitter type.
  OTA processor for the software remote update.
  Permanent backup in case the mains power supply goes off.

Environment:

• Operating temperature: 0°C to +40°C.
• Storage temperature: -10°C to +65°C.
• Classe II (after installation).
• Thermostat: IP20.
• Receiver: IP44 wall mounted and IPX3 semi mounting.
  Manufactured on ISO 9001 V2015 certified site.

Standards:

NEOMITIS®
LIMITED – 16 Great Queen Street, Covent Garden, London,WC2B 5AH UNITED KINGDOM – Registered in England and Wales No: 9543404
Tel: +44 (0) 2071 250 236
Fax: +44 (0) 2071 250 267
E-mail: [email protected]
Pictures and technical specifications are not contractual and given as an indication. Specifications may change depending on product development. Néomitis® keeps the right to change without notice. All rights reserved – Photo credits: © Adobe Stock © Shutterstock
