Myson MPRT WIRED PROGRAMMABLE ROOM THERMOSTAT

Myson- MPRT -WIRED- PROGRAMMABLE -ROOM -THERMOSTAT- pro

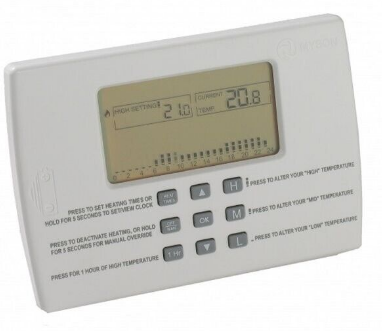

About Your MPRT

The MPRT is a programmable room thermostat. It measures the temperature of your room and then controls the heating to maintain the room at the chosen temperature. IMPORTANT : Do not fi t the MPRT where it will be affected by heat from radiators, sunshine, or other heat source The MPRT is wired to your heating equipment by your electrician. If your MPRT has already been installed you need only follow the section ‘THREE EASY STEPS’, to operate your heating.

“THREE EASY STEPS”

On your MPRT unit you set the value of three temperatures, Low, Medium and High. “Low” is typically a night setting, “Medium” an afternoon setting, and “High” a morning and evening setting. Your MPRT will then operate your heating to maintain these temperature settings. Follow steps 1 to 3 below.

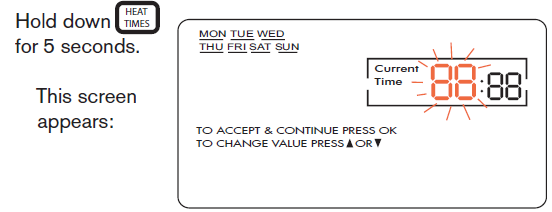

SETTING THE CLOCK

  • UseMyson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (2)to alter the blinking text (hours). PressMyson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (3)to proceed to minutes and change using Myson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (2)
  • Press Myson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (3) to proceed to day and change using Myson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (2)
  • Press Myson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (3)
  •  The time is now set and the screen returns to normal.

Myson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (1)

SETTING YOUR 3 TEMPERATURES

  • UseMyson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (2)to set the “High” temperature.
  • Your have now set your high temperature.
  • PressMyson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (3) The screen returns to normal.
  • To set your “Medium” temperature, follow the same procedure as above except press Myson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (5) instead ofMyson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (7)
  • To set your “Low” temperature, follow the same procedure as above except pressMyson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (8) instead ofMyson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (7)

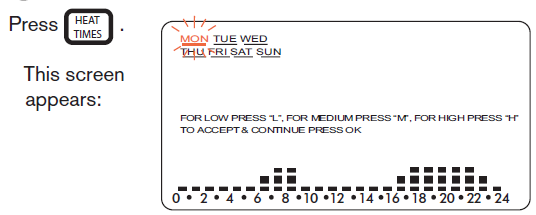

SETTING YOUR HEATING TIMESMyson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (9)

NOTE:

  • If the screen above appears without the days of the week displayed it means the room unit has been set up to give the same temperatures every day.
  • If you wish to change this set up to enter for individual days pressMyson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (3) to exit. Then press Myson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (2)together and hold down for 10 seconds.
  • PressMyson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG 16 to enable daily time settings. Press Myson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (3)to accept. Now pressMyson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG 16 and follow the instruction below.
  • (To revert to t e same programme each day repeat the above process.)
  • When the daily program is enabled, the bar graph shows the temperatures for the 24 hours of Monday.
  • A Low temperature is indicated by- , a Mid temperature byMyson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (10) 2, and a High temperature by’ Myson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (10) .
  • If you are happy with the temperatures entered for Monday, press Tuesday’s temperatures appear.
  • If you are happy with these temperatures press Myson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (3)again, and so on to Sunday. PressMyson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (3)  The screen returns to normal.
  • If you are not happy with the temperatures on any particular day, you can change them.
  • For example, in the figure below, to change the settings on the left (LLLLLLMHHLL) to those on the right you would press the button sequence LLLLLMMHHHHMyson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (15)

SMART START
“SMART START” varies the start-up times to ensure that the build- ing achieves temperature by the required time. The smart start system is continually learning the temperature rise requirement, delaying the start up of the system, therefore saving energy during milder weather.

SETUP FOR SMART-START.
To toggle the Smart-Start function between enabled and disabled, hold  Myson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (2)down for 10 seconds. The Myson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG 17button can now be used to toggle Smart-Start between active and deactivated.

OTHER SIMPLE FUNCTIONS

ONE HOUR OF HIGH TEMPERATURE.
If you pressMyson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG 17 you will get an hour of High heat, irrespective or whether your times are set for Low or Mid heat. If you want to cancel this function you simply press Myson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (12)

MANUAL OVERRIDE.
If you hold Myson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (12)for 5 seconds, the room unit will go into manual mode. In this mode there is only one temperature. Press either Myson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (2) see this temperature change. Set it to the temperature you require. The thermostat will continue to control your heating at this temperature until you deactivate manual override by pressingMyson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (12)

DEACTIVATING YOUR HEATING:
If you press Myson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (12) your heating will be deactivated. The screen will continue to indicate the room temperature but the heating will never come on. To reactivate your heating simply pressMyson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (12)

Note:
Provided you deactivate via the MPRTRF, the system will have frost protection at 60C. If the system is to be left shut down for a long period over winter, ensure there is sufficient battery life to maintain protection..

MORE ADVANCED FUNCTIONS

KEYPAD LOCKING.
Hold Myson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (13)for 5 seconds to lock the key pad. The locked symbol appears on the screenMyson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (14) No changes can be made to the settings. To unlock the screen holdMyson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (13) for 5 seconds.

RETURN TO FACTORY SETTINGS.
Holding Myson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG 18down for 10 seconds returns the H, M and L temperatures to the values they had when they left the factory. It also returns the heating times to their factory values.

COPY FUNCTION.
PressingMyson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG 19 for Myson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (3)5 seconds when setting your heating times (step 3), will copy the current day’s times into the next day.

HOLIDAY FUNCTION.
Pressing H while holding Myson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (3)the room unit into holiday mode. Press Myson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG 19to enter the number of days you will be away on holidays. PressMyson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (3)Now pressMyson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (2)to alter the room tem- perature you require while away on holidays. Press Myson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (3) to accept and exit. The function can be cancelled by pressingMyson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (12)

SMART-START FUNCTION

The message “SMART START” displayed on the screen indicates that this function is operating. Smart-Start works by switching the heat on in advance – so that the room can warm up. As an example, lets say you get out of bed at 8am and you want the room to be warm at that time. Without Smart-Start you must programme your High temperature for 7am. With Smart-Start you need only programme your High temperature for 8am. Smart-Start will know that you want the room warm at 8am and bring the heating on before that. But Smart-Start is even more intelligent than this. It remembers how cold it was on the previous mornings. Thus, in Winter it might start the heating 1 hour before 7a.m. and in Spring start half an hour before 7a.m. In this way it provides optimum comfort and energy saving.Myson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (15)

Note:
In extreme low temperatures and dependant on your heating system capability, the desired temperature set may not be reached by the set time. Thus an earlier higher temperature may need to be set.

REPLACING THE BATTERIES IN YOUR ROOM UNIT.

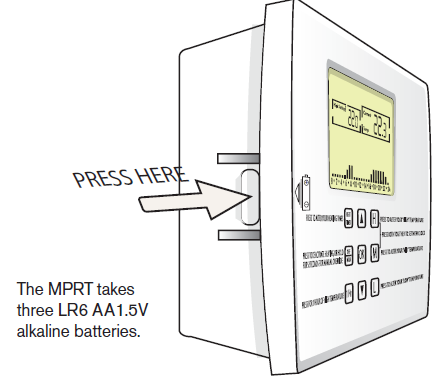

Dependant on type and manufacturer the batteries in your MPRT RF should last approximately 2 years. When they go low, a battery symbol appears on the LCD screen telling you to replace the batteries.Myson -MPRT -WIRED PROGRAMMABLE -ROOM -THERMOSTAT -FIG (16)

To access the batteries release the cover from the base by pressing the base at arrow shown above. The batteries are then visible.

NOTE: Changing the battery in 1 minute or less will retain all your settings. If it takes longer than 1 minute, you may have to re-enter your settings.

MYSON CONTROLS

  • MYSON LTD., EASTERN AVENUE, TEAM VALLEY, GATESHEAD,TYNE & WEAR, NEI 1 OPG
  • SALES OFFICE No. 0845 402 3434
